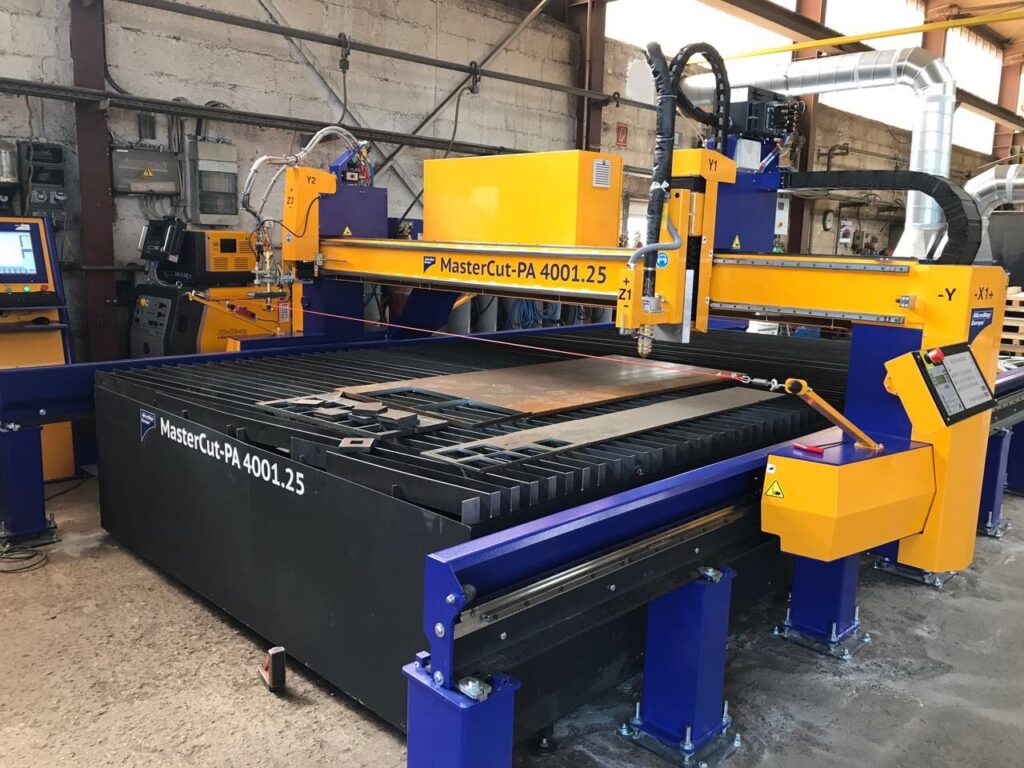

Versatile solution for your cutting tasks

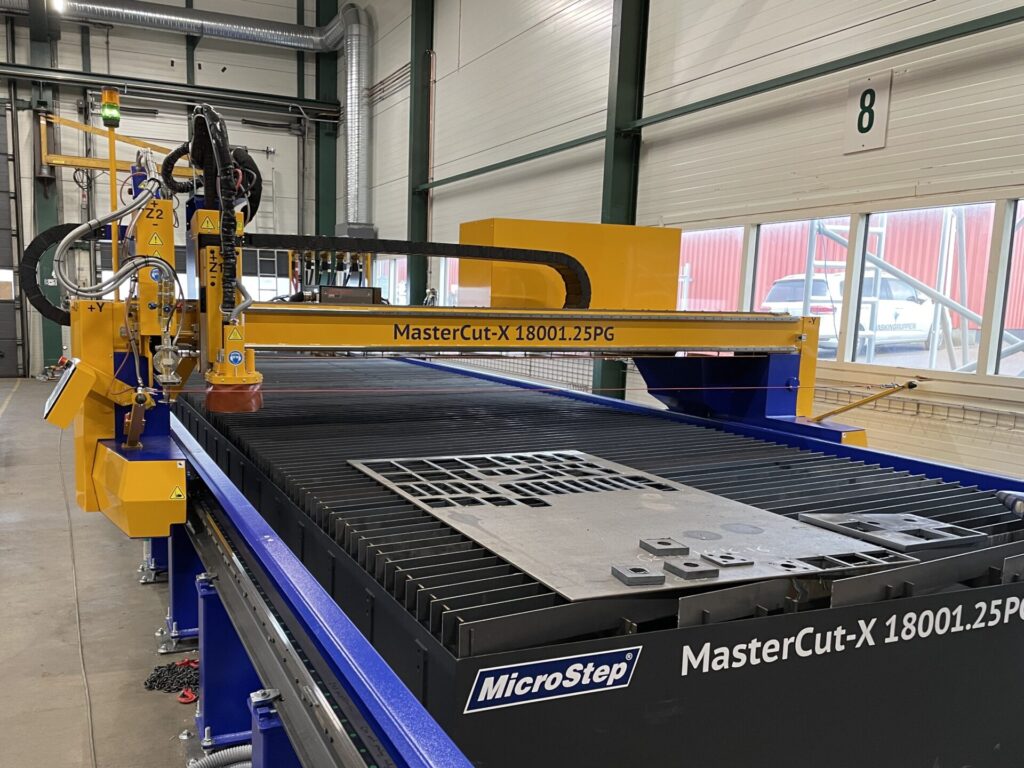

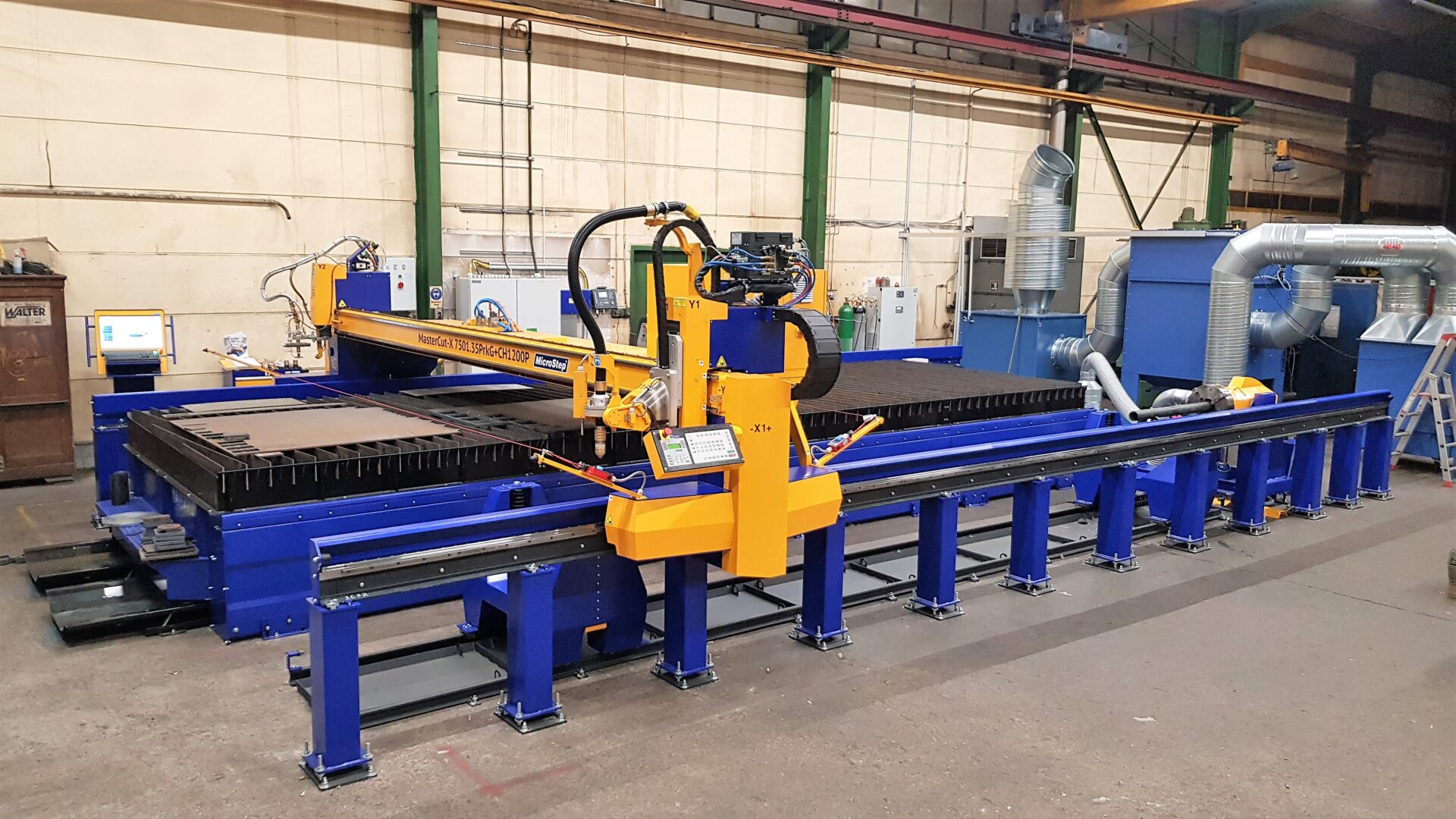

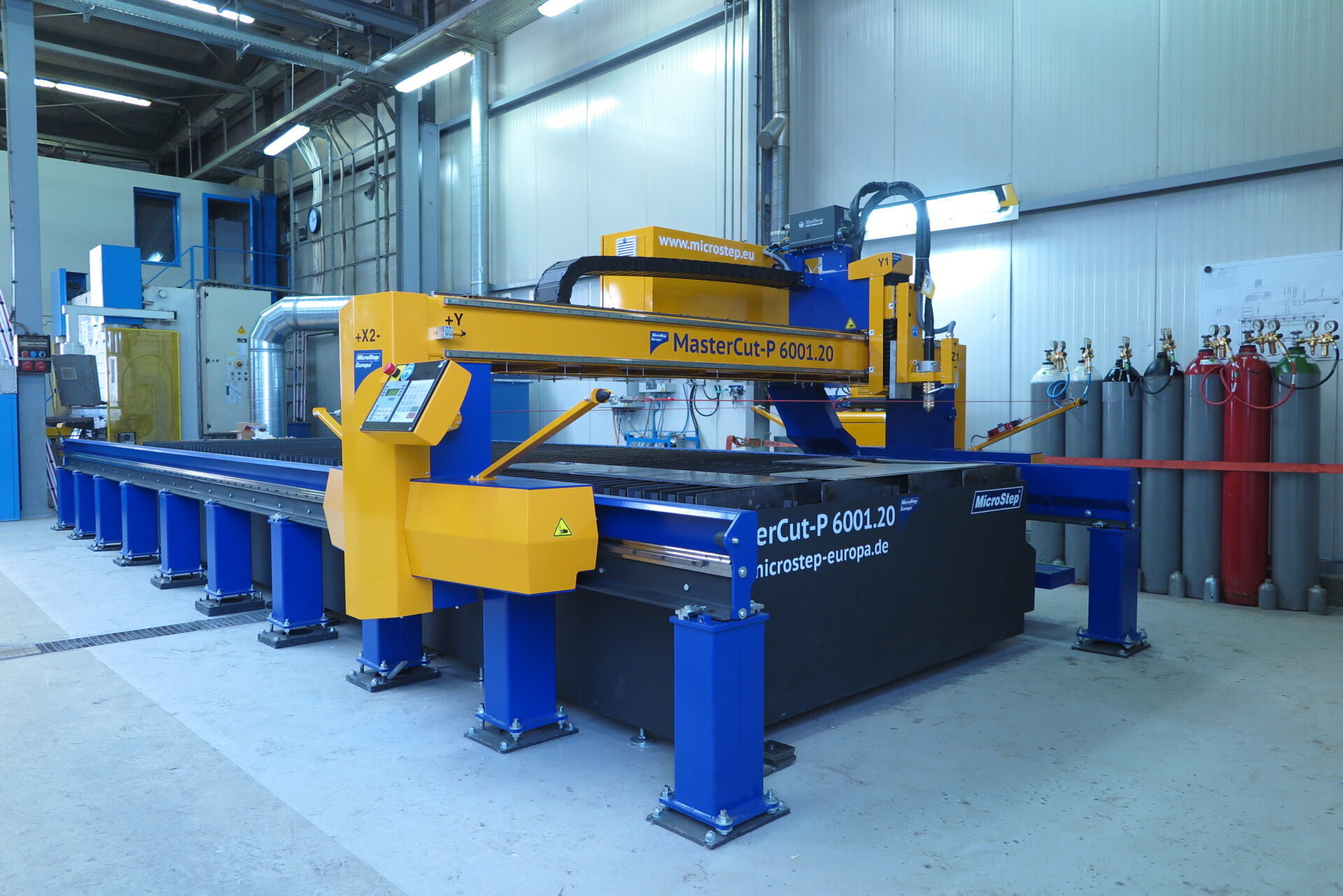

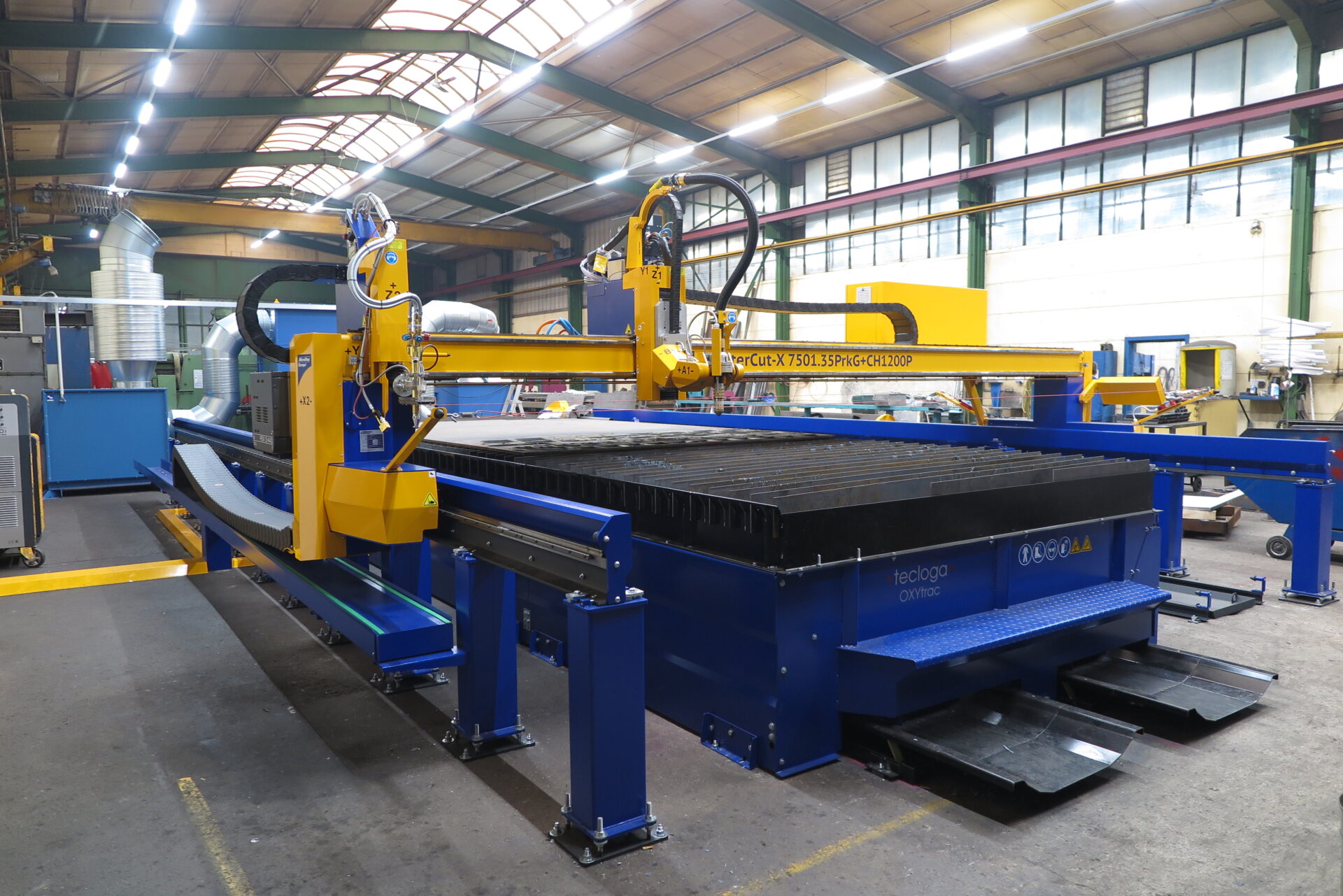

The application range of the standard version with rails in the X direction dedicated to fully automated oxyfuel cutting or cutting with conventional plasma can be enhanced to a variety of highprecision plasma cutting applications including pipe, profile or elbow cutting and marking.
Features
- Broad range of processing possibilities – cutting of plates, pipes & profiles with plasma or oxyfuel as well as several marking options

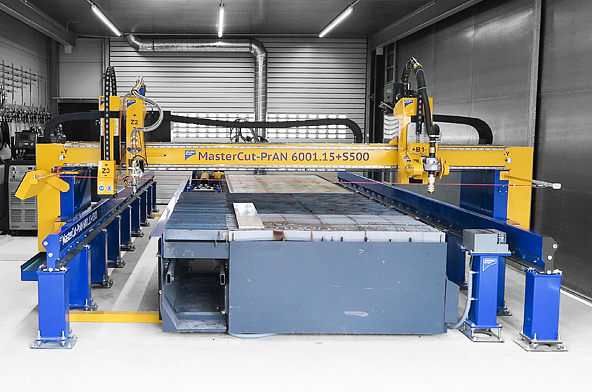

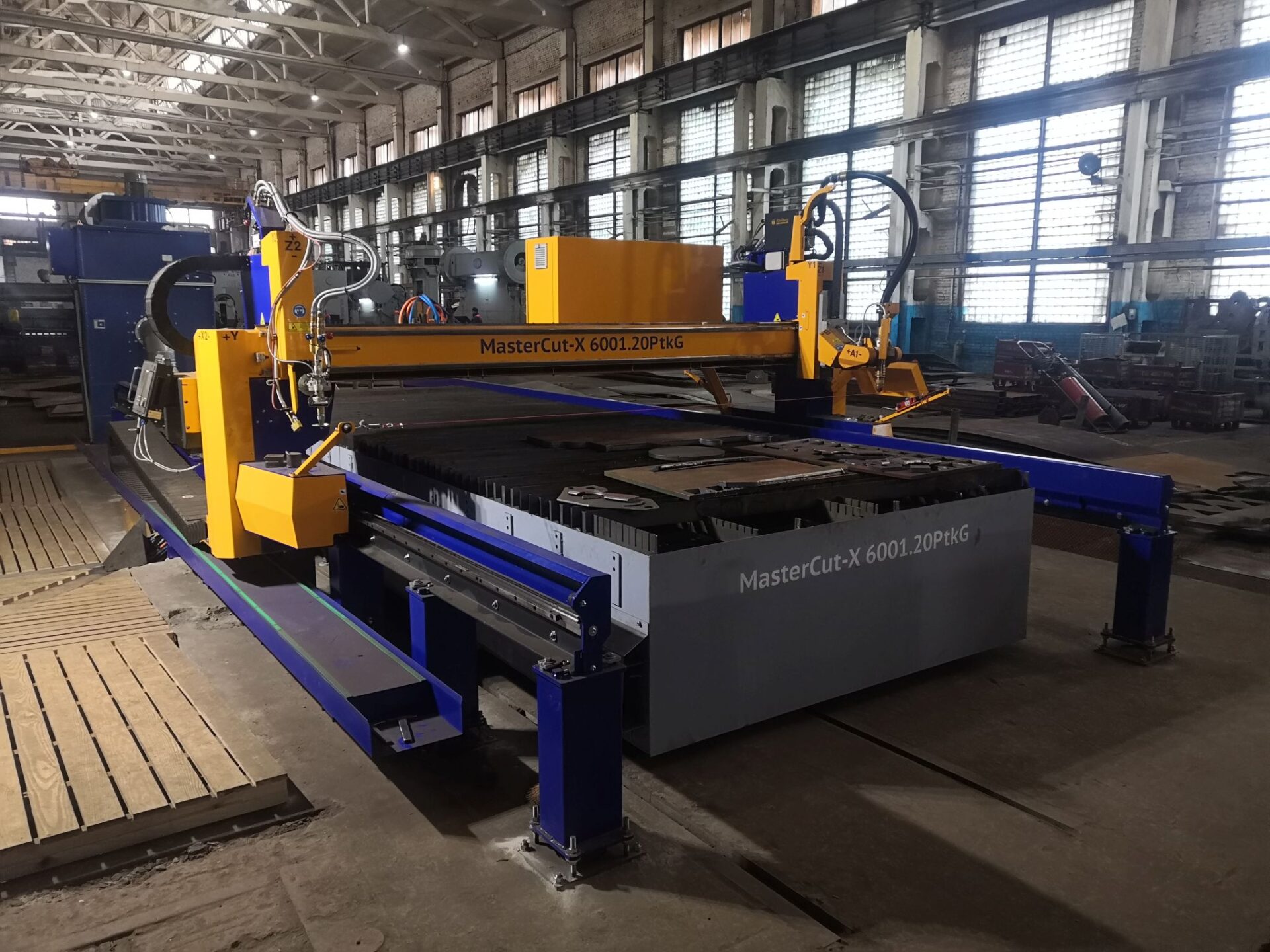

- Generous gantry clearance for processing of higher parts
- Rigid steel gantry to ensure high precision and dimensional accuracy
- Long-term reliability in single- and multi-shift operation

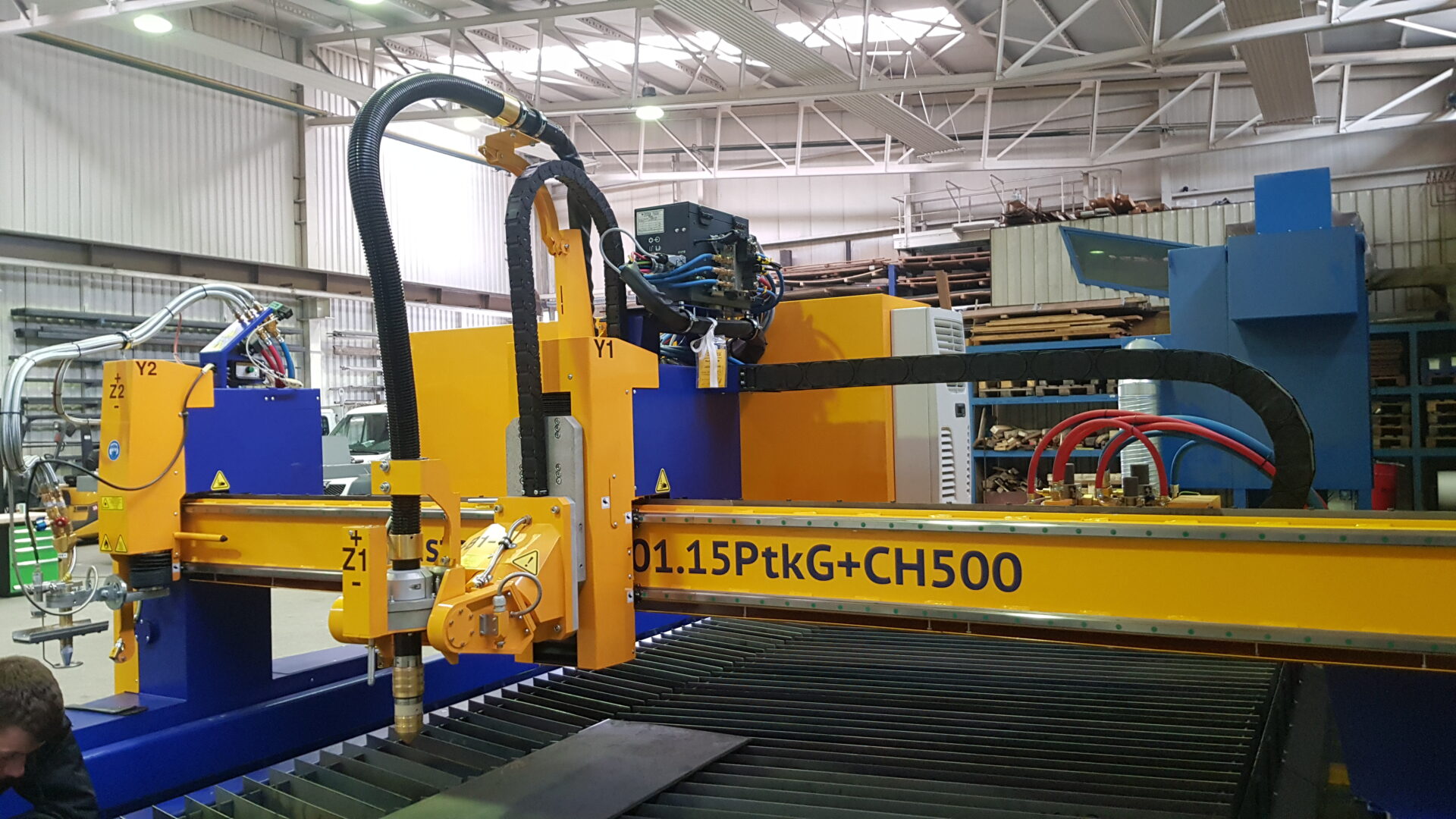

The machine offers excellent cutting results by utilizing both high-definition and conventional plasma sources, with an advanced height control based on proprietary adaptive algorithms backed by the ball screw actuated Z axis. A combination of plasma and oxyfuel cutting technologies along with extensive work area configurations make MasterCut a highly versatile production tool with an optimal price/performance ratio.

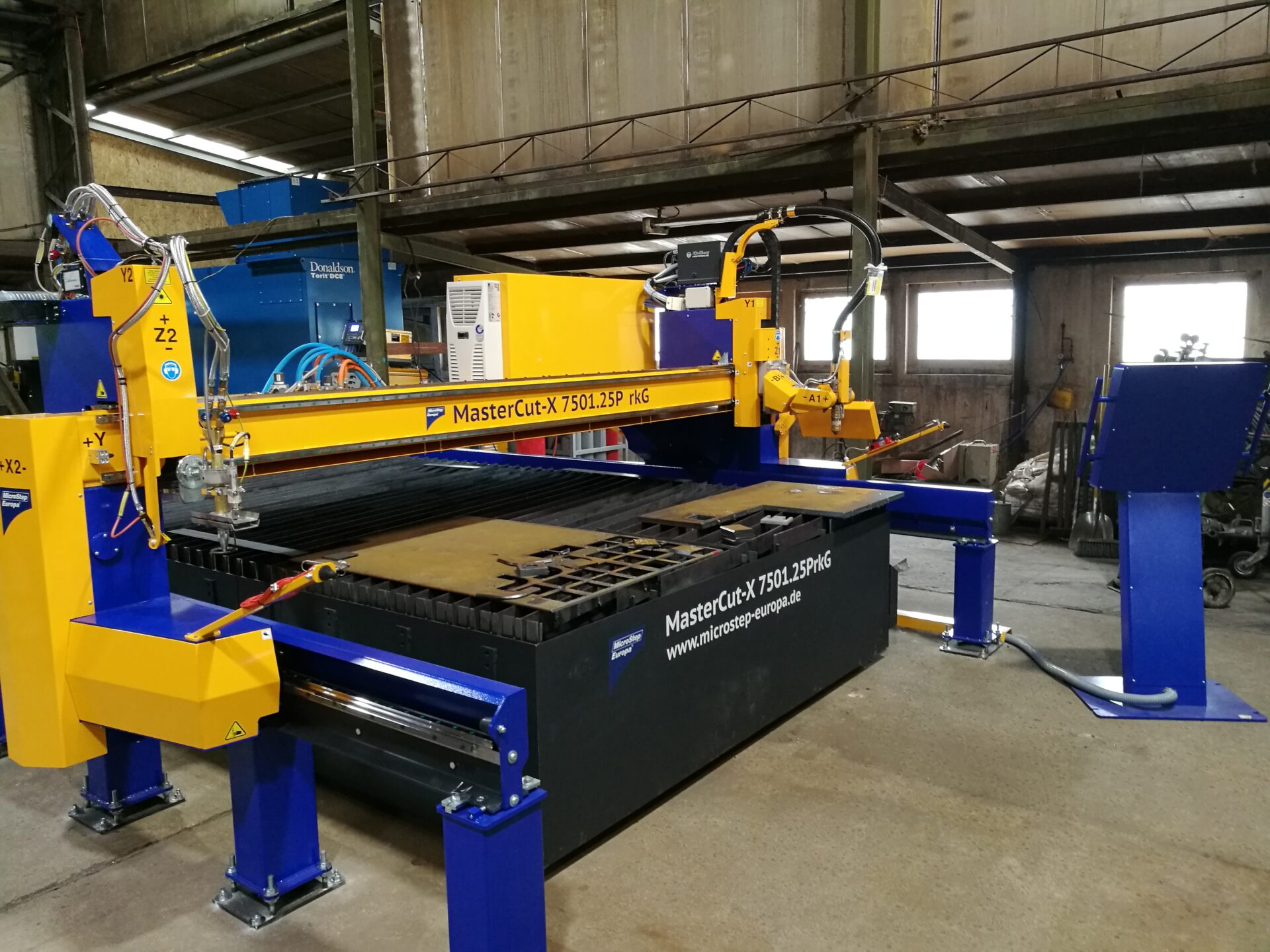

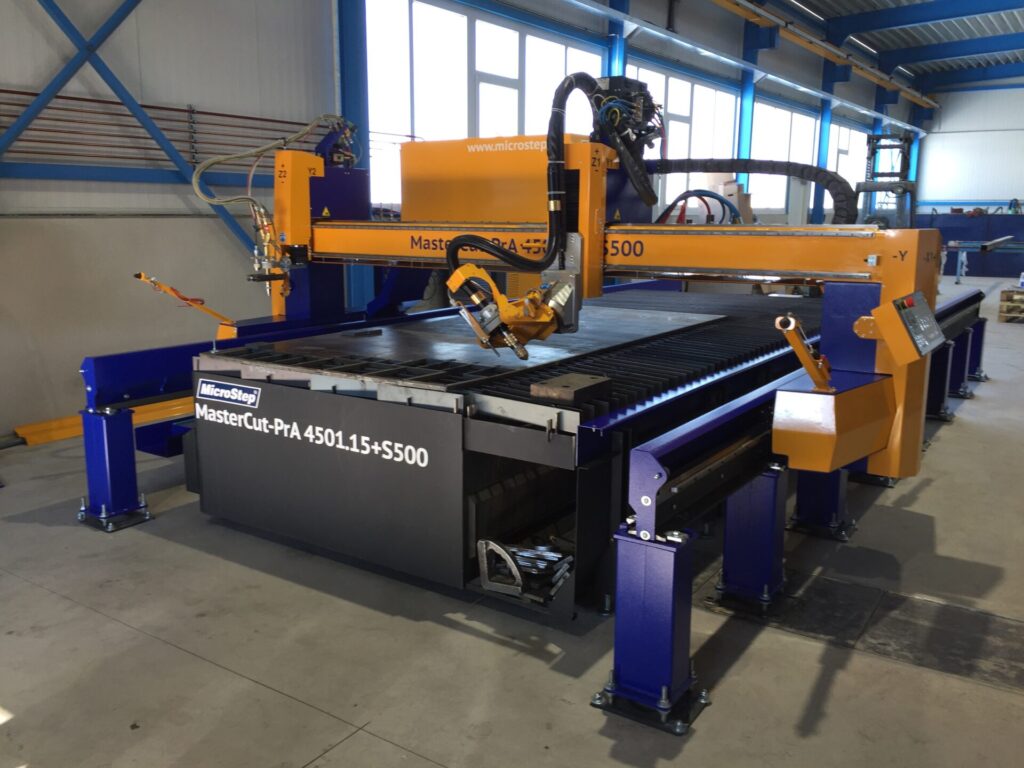

- V- and X-cuts as well as complex Y- or K-cuts up to 47°
- Fully-automatic compensation of potential mechanical imprecisions of the bevel head’s geometry in the range of hundredths of a mm thanks to MicroStep’s patented ACTG® technology
- Automatic compensation of bevel angle with the Adaptive Bevel Compensation feature (ABC)

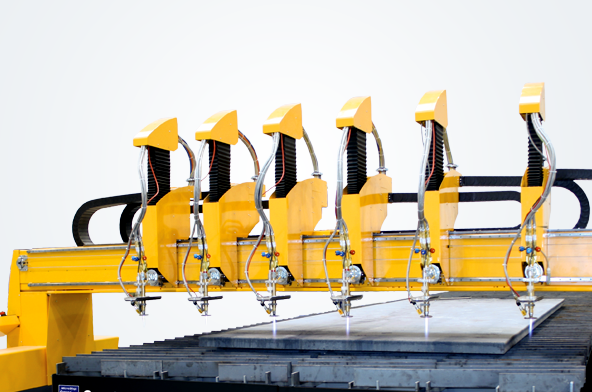

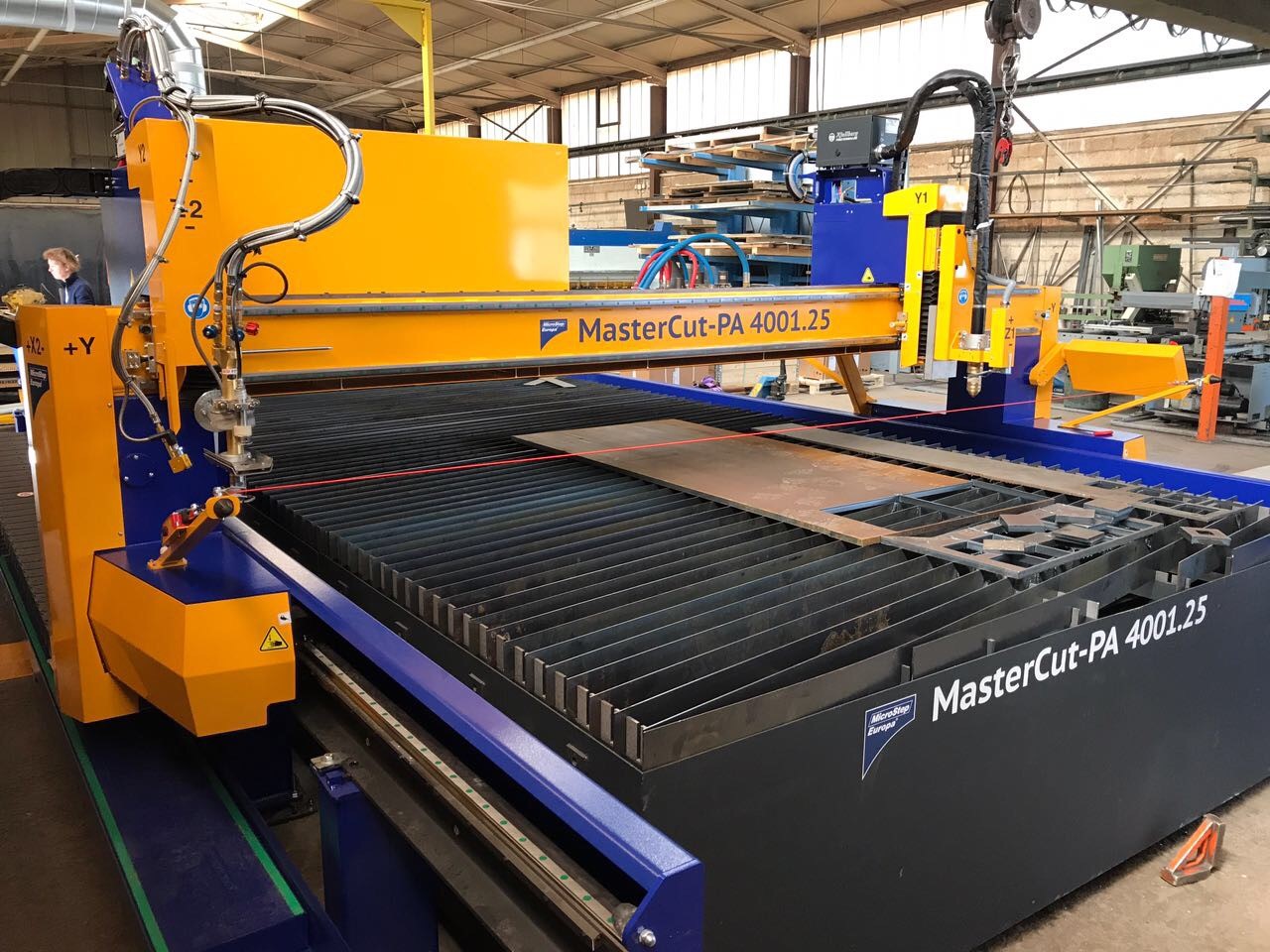

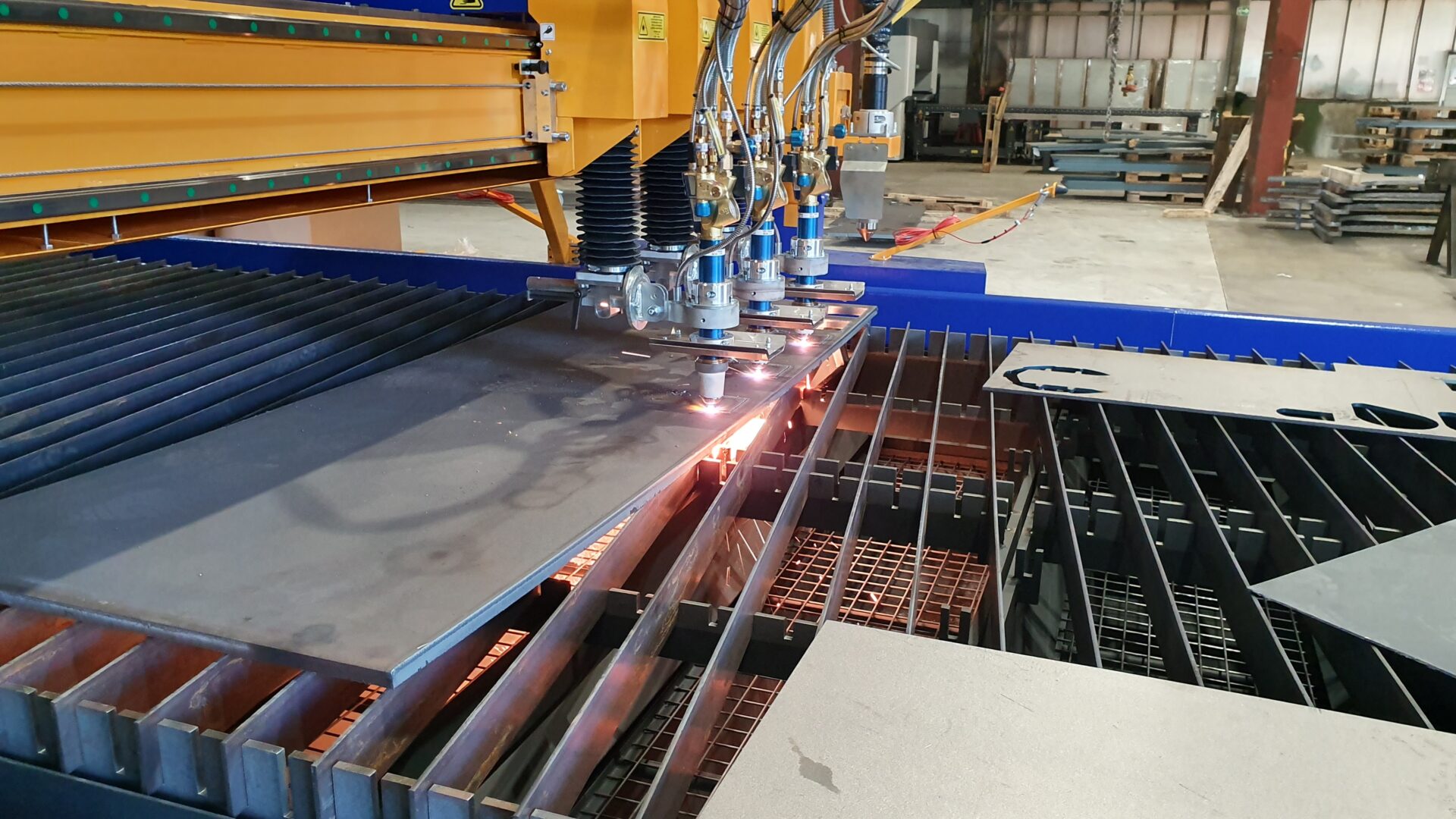

- Increase your productivity with parallel cutting operations
- Automatic spacing of slave tool stations (option)
- Individual selection of tool parameters to fit your requirements
- All tools controlled automatically from the iMSNC® control system

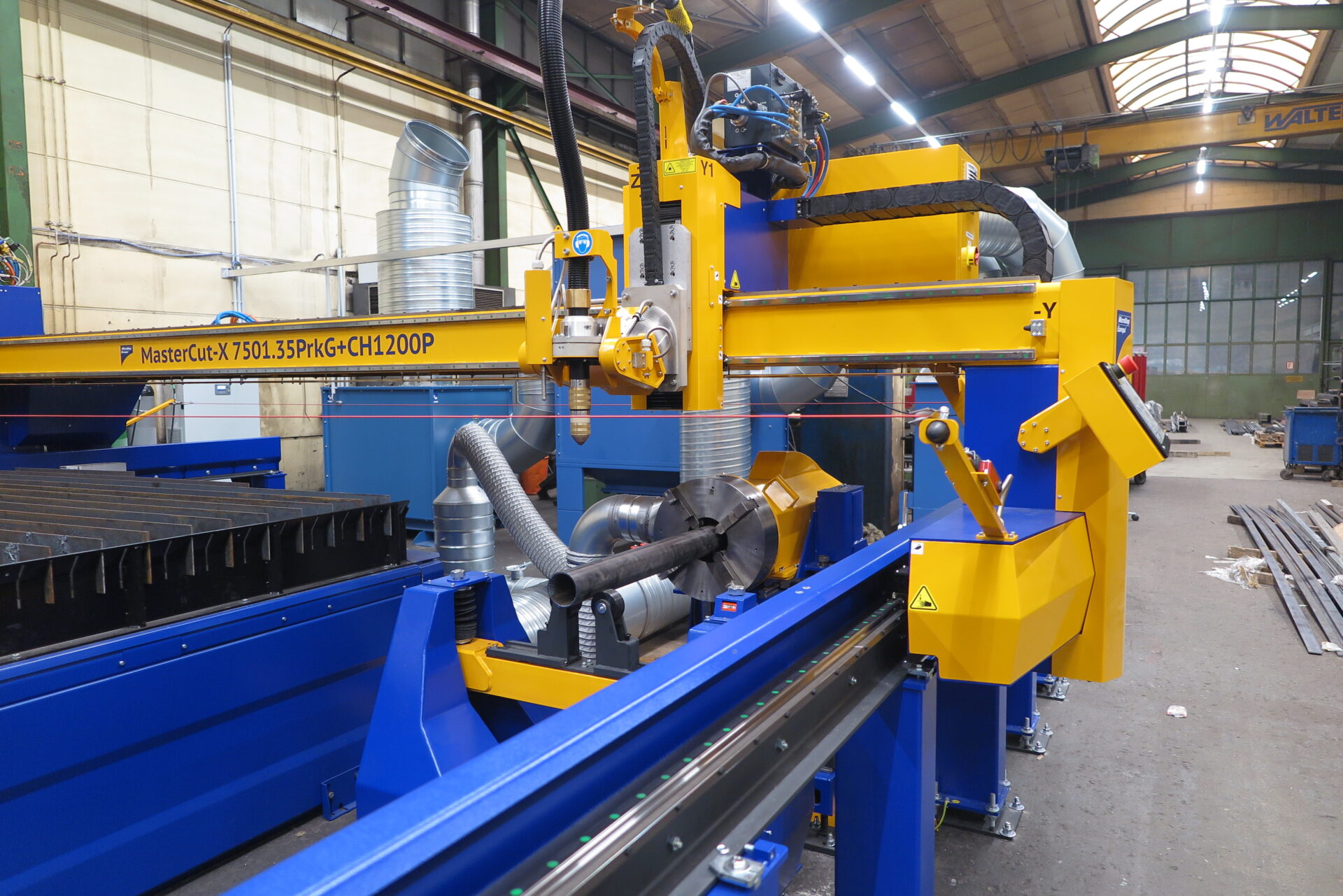

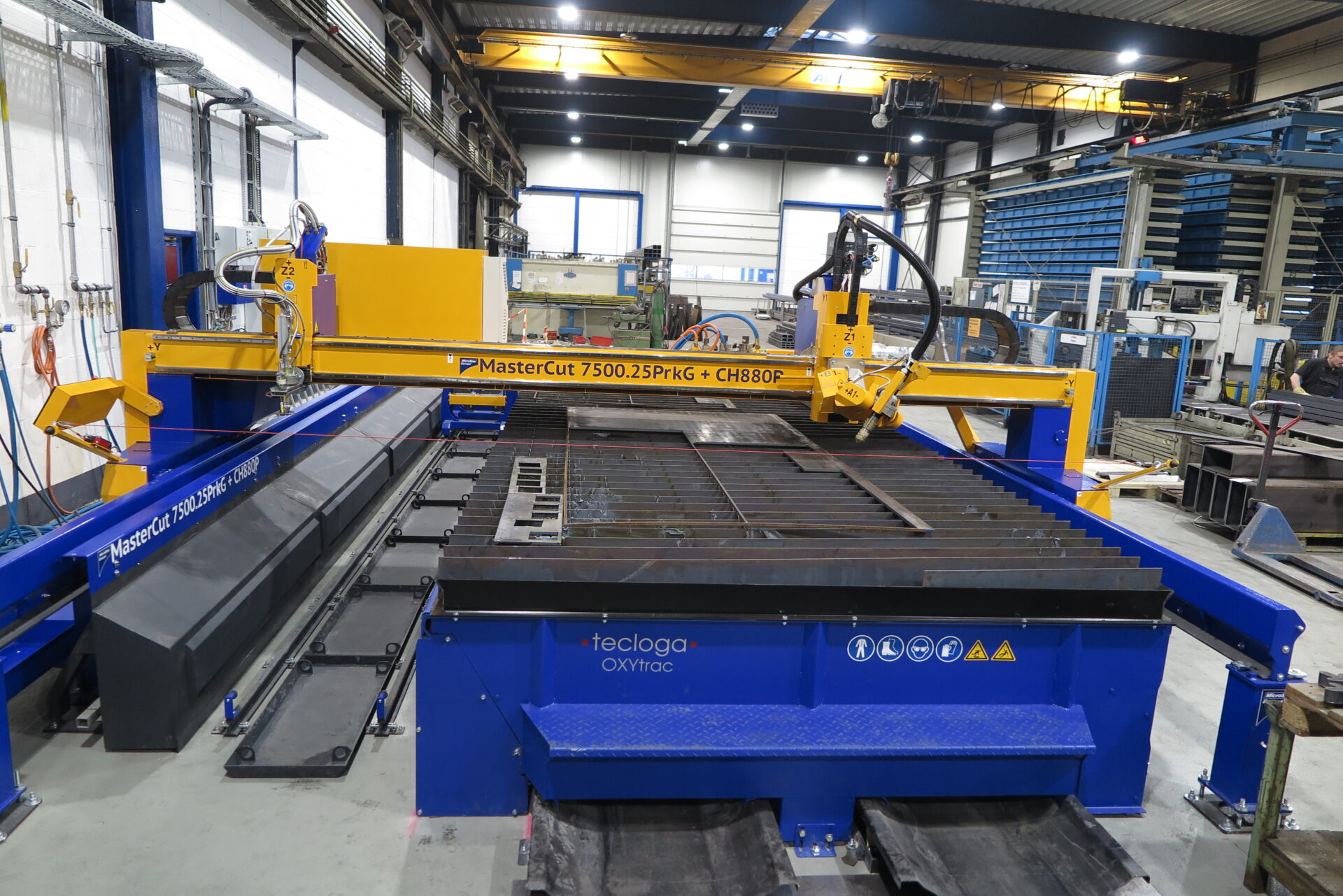

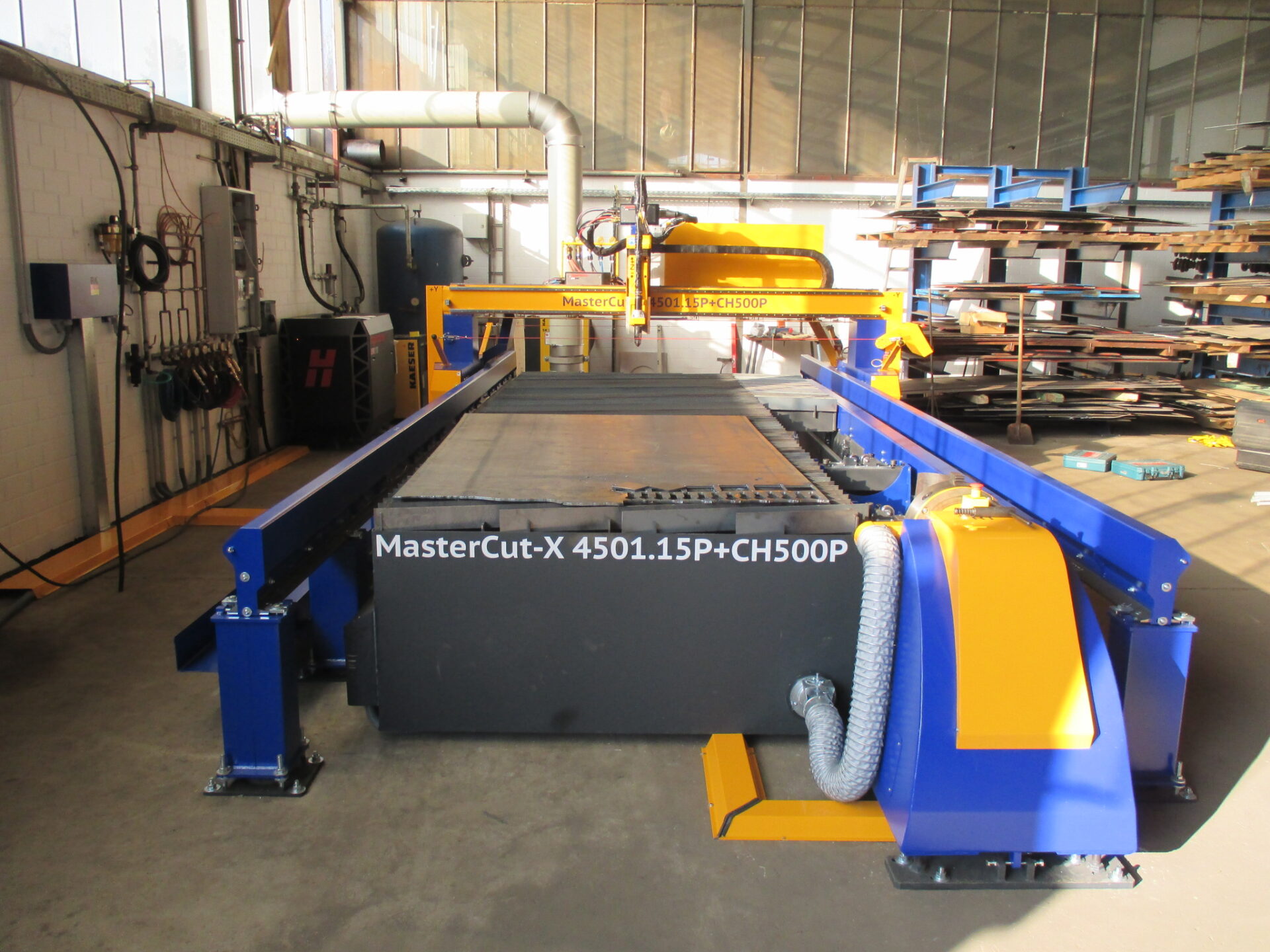

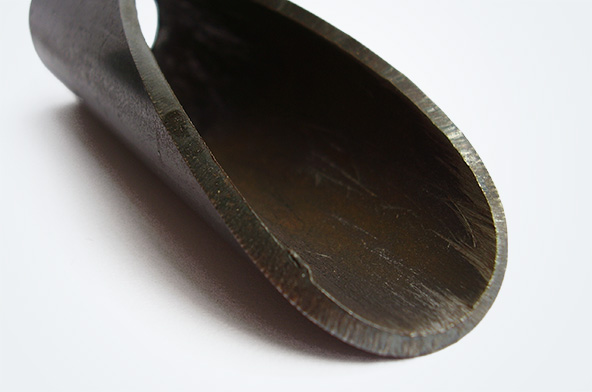

- Enhance your production range by adding pipe and profile cutting option
- Convenient cutting program creation with MicroStep’s 2D and 3D CAM software
- High precision and dimensional accuracy reduce post-processing costs

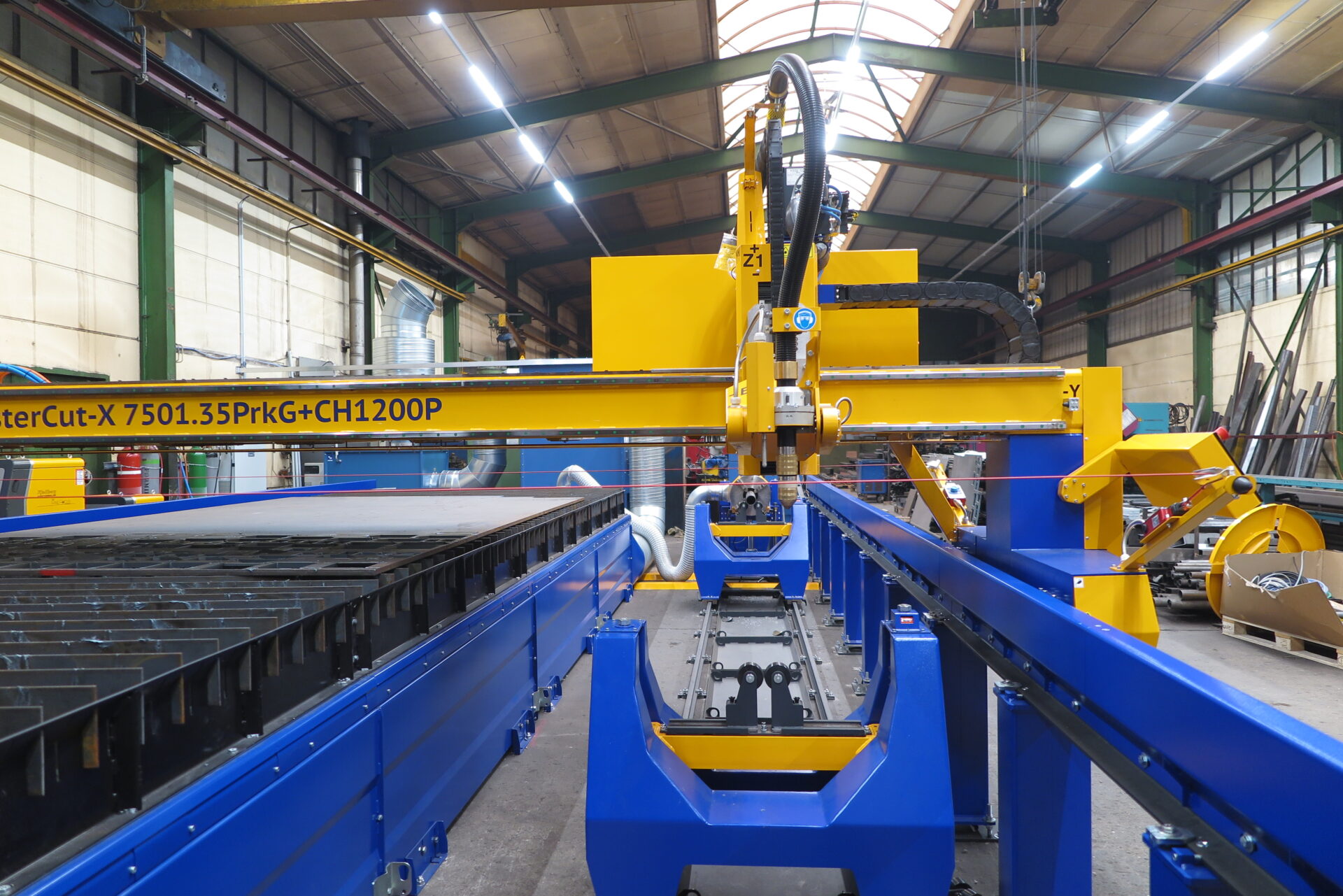

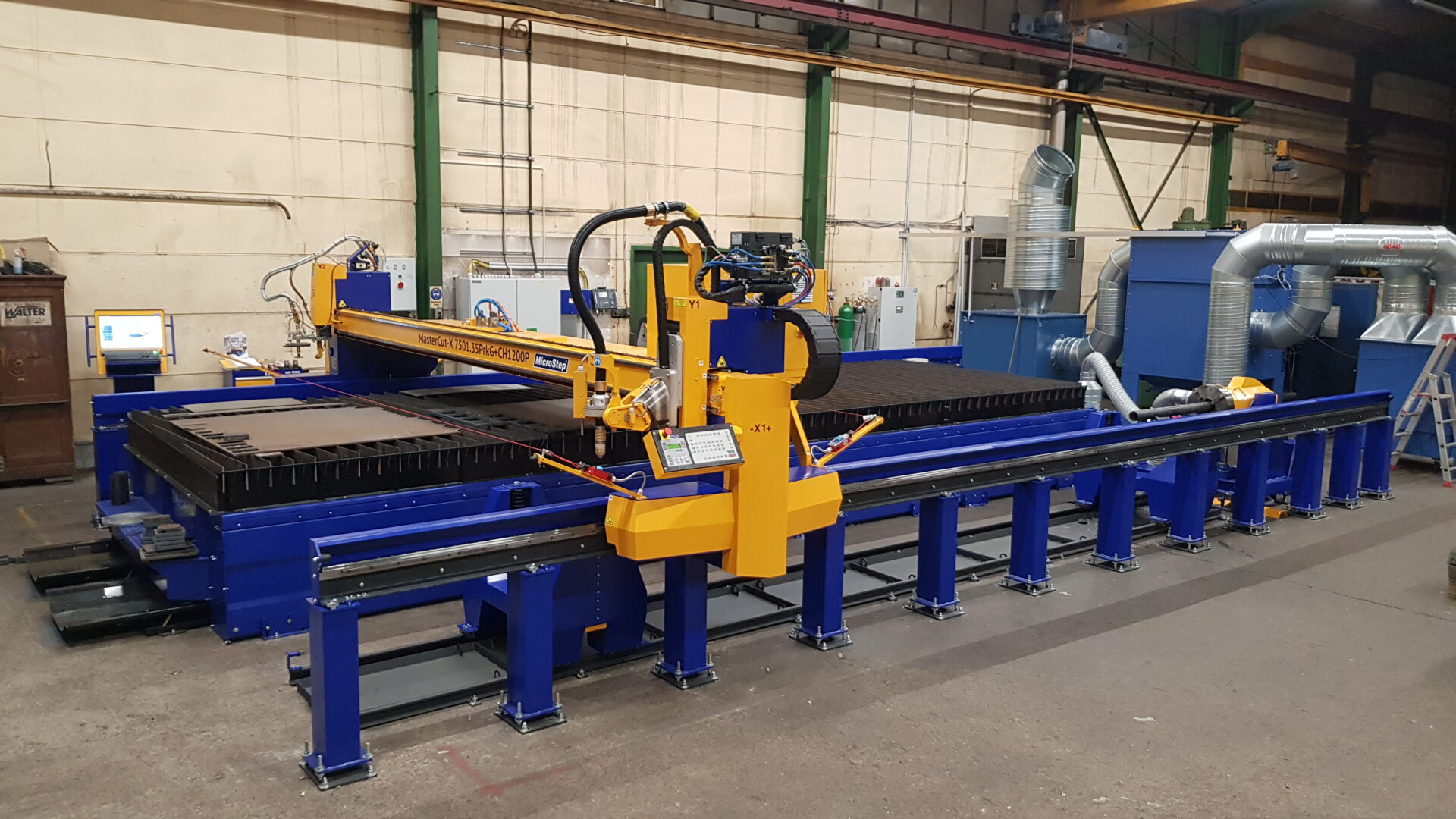

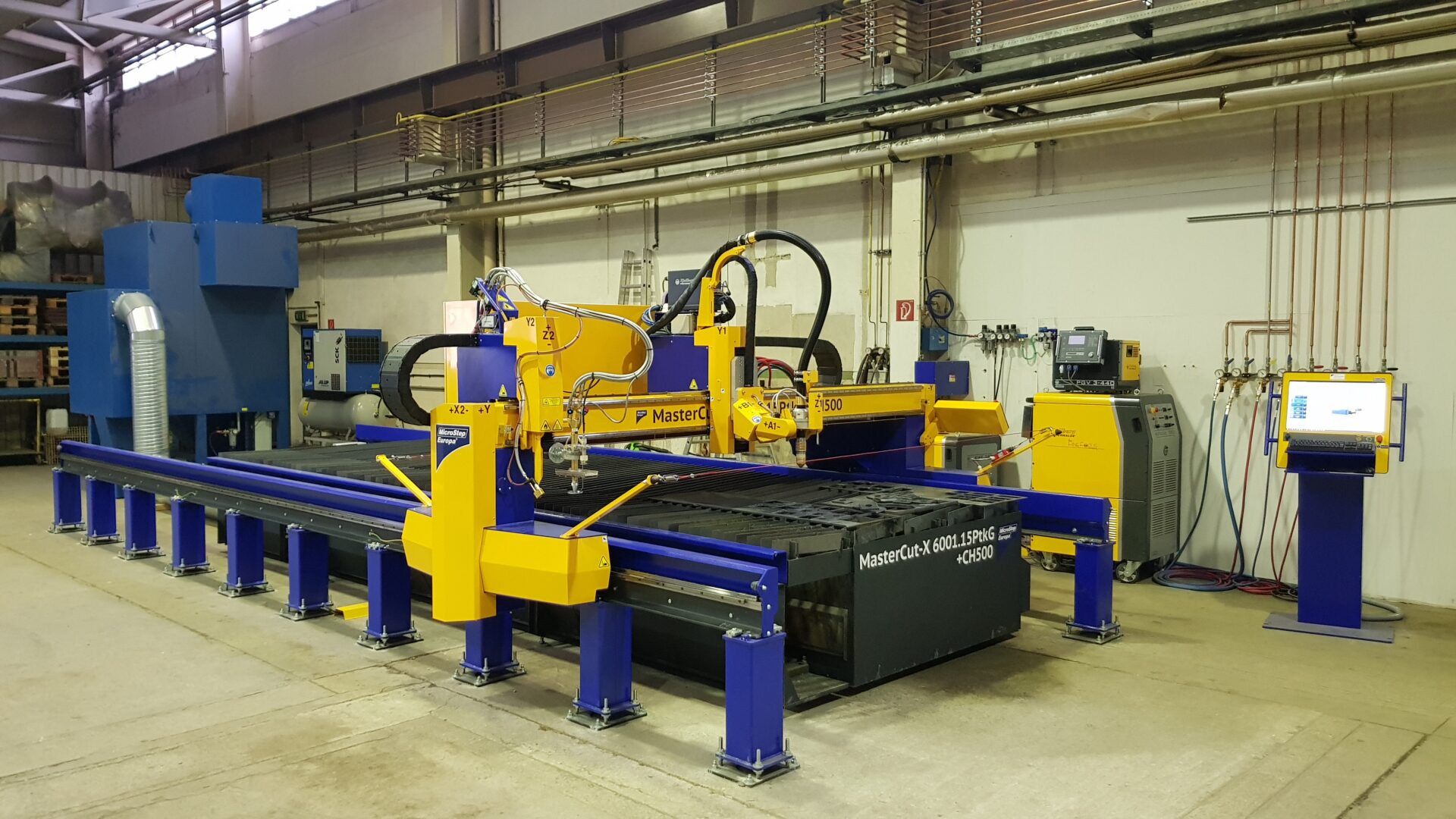

- If required, the pipe cutting channel can be covered with additional grates and used as extension of the cutting table including sideways fume extraction

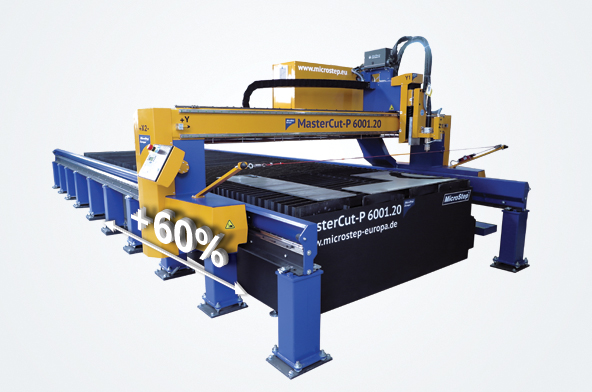

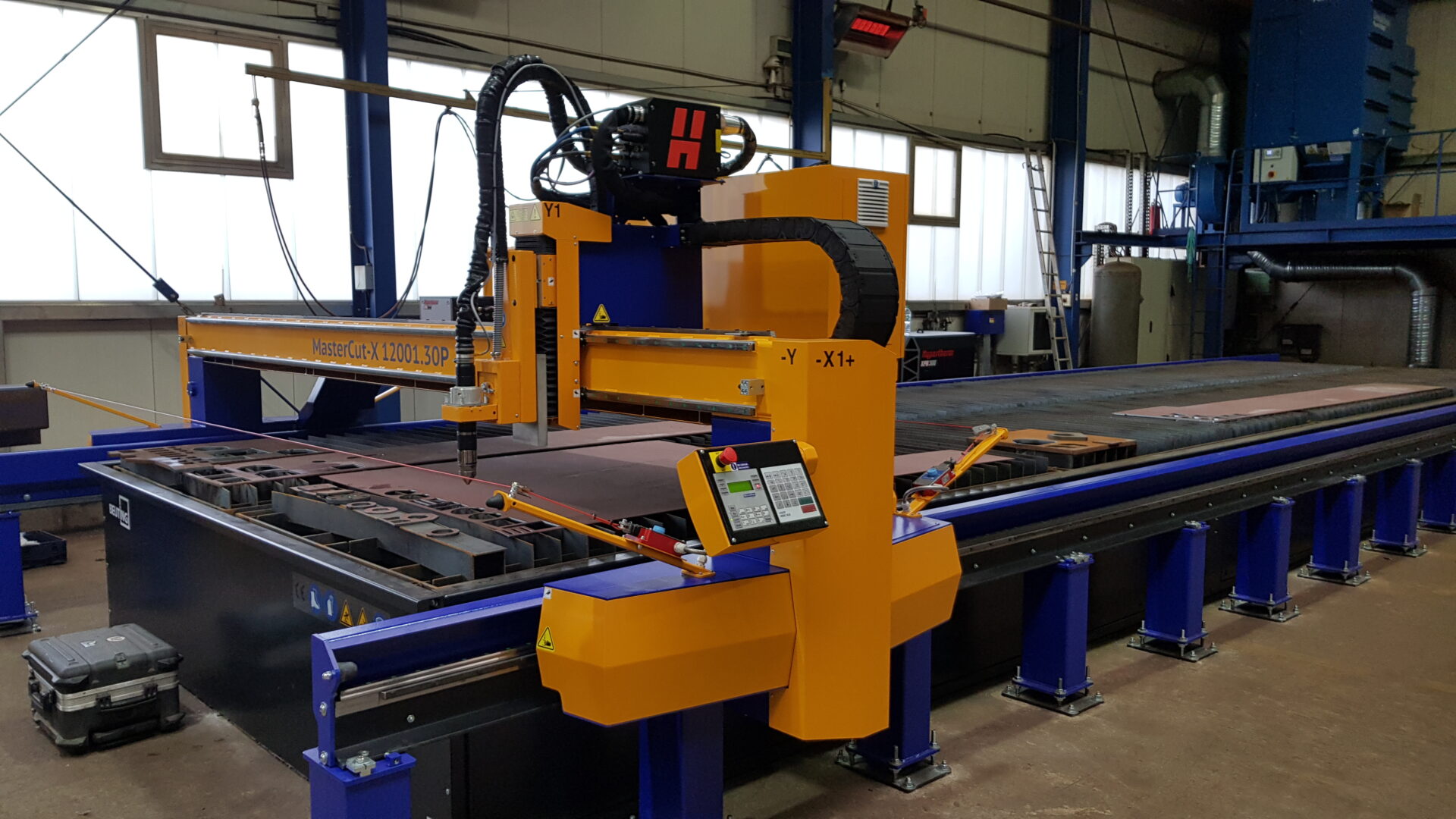

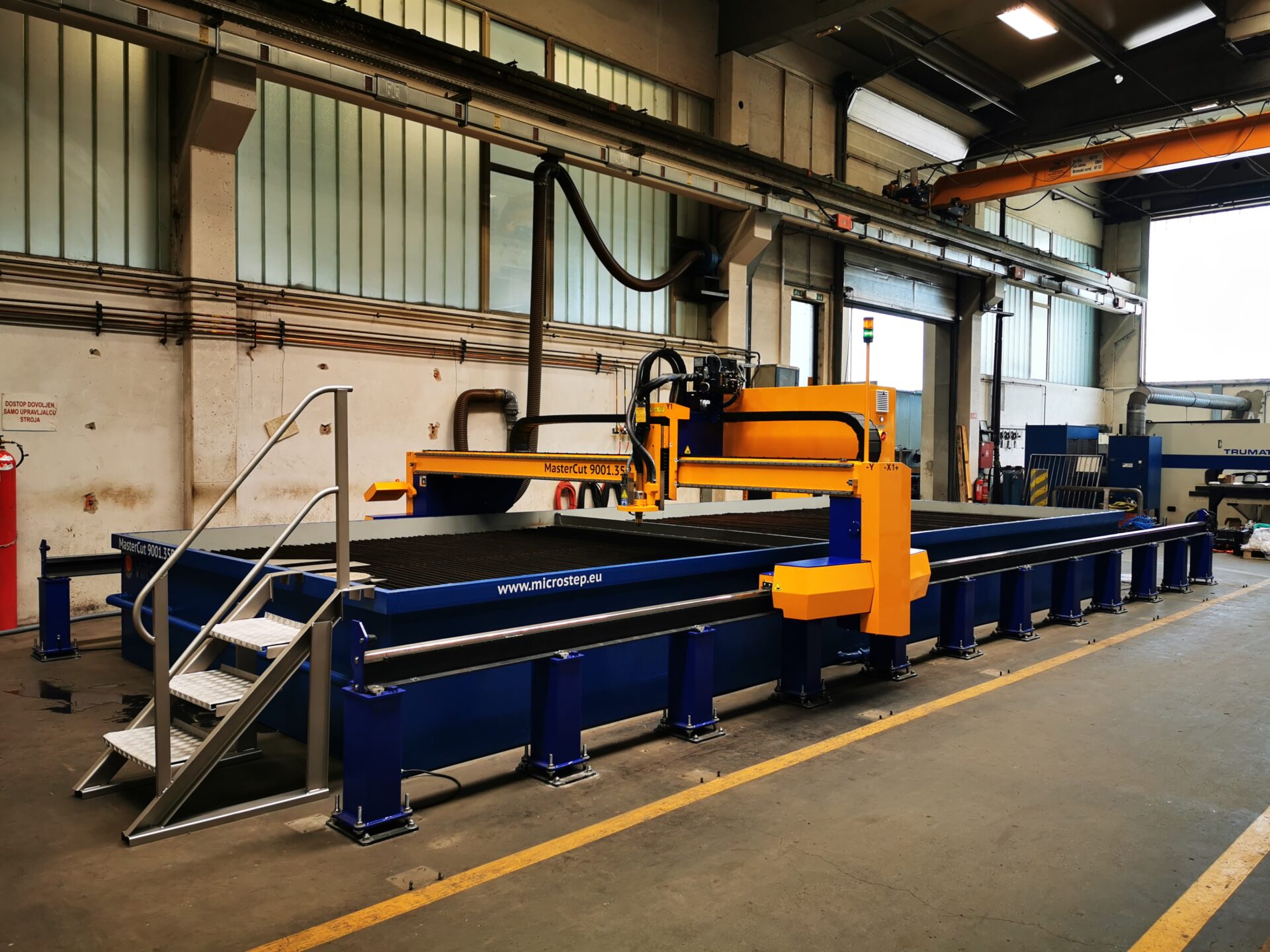

Because a robust machine construction is an important condition for excellent cutting results, in the latest generation of MasterCut the gantry supports have been extended by more than 60% in longitudinal direction (X axis), along with reinforcement of the gantry beam and redesigning of the drive system. Thanks to these measures, the positioning system is even more stable and lets the machine operate smoothly also with heavier equipment installed.
- Broad range of processing possibilities – cutting of plates, pipes & profiles with plasma or oxyfuel as well as several marking options
- Generous gantry clearance for processing of higher parts
- Rigid steel gantry to ensure high precision and dimensional accuracy
- Long-term reliability in single- and multi-shift operation
The machine offers excellent cutting results by utilizing both high-definition and conventional plasma sources, with an advanced height control based on proprietary adaptive algorithms backed by the ball screw actuated Z axis. A combination of plasma and oxyfuel cutting technologies along with extensive work area configurations make MasterCut a highly versatile production tool with an optimal price/performance ratio.
- V- and X-cuts as well as complex Y- or K-cuts up to 47°
- Fully-automatic compensation of potential mechanical imprecisions of the bevel head’s geometry in the range of hundredths of a mm thanks to MicroStep’s patented ACTG® technology
- Automatic compensation of bevel angle with the Adaptive Bevel Compensation feature (ABC)
- Increase your productivity with parallel cutting operations
- Automatic spacing of slave tool stations (option)
- Individual selection of tool parameters to fit your requirements
- All tools controlled automatically from the iMSNC® control system
- Enhance your production range by adding pipe and profile cutting option
- Convenient cutting program creation with MicroStep’s 2D and 3D CAM software
- High precision and dimensional accuracy reduce post-processing costs
- If required, the pipe cutting channel can be covered with additional grates and used as extension of the cutting table including sideways fume extraction
Because a robust machine construction is an important condition for excellent cutting results, in the latest generation of MasterCut the gantry supports have been extended by more than 60% in longitudinal direction (X axis), along with reinforcement of the gantry beam and redesigning of the drive system. Thanks to these measures, the positioning system is even more stable and lets the machine operate smoothly also with heavier equipment installed.

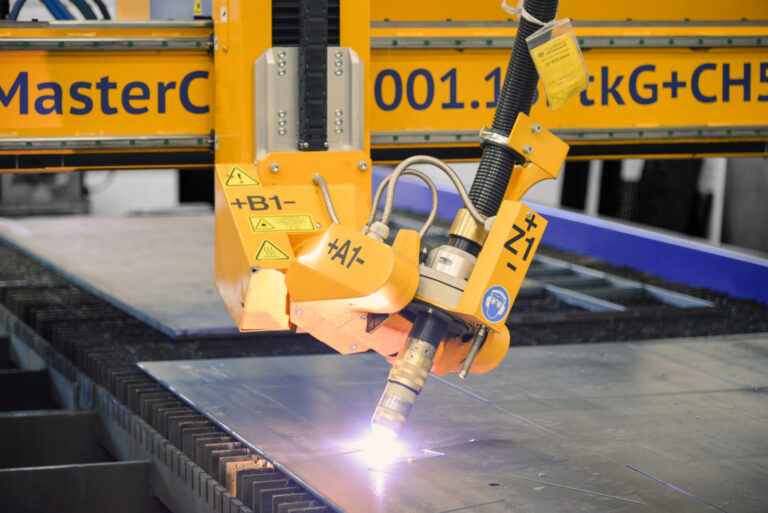

Plasma tool station for straight (vertical) cutting comes with anti-collision protection, laser pointer, automatic torch-height…
The in-house developed automatic calibration system for geometry of the cutting tool – ACTG® –…

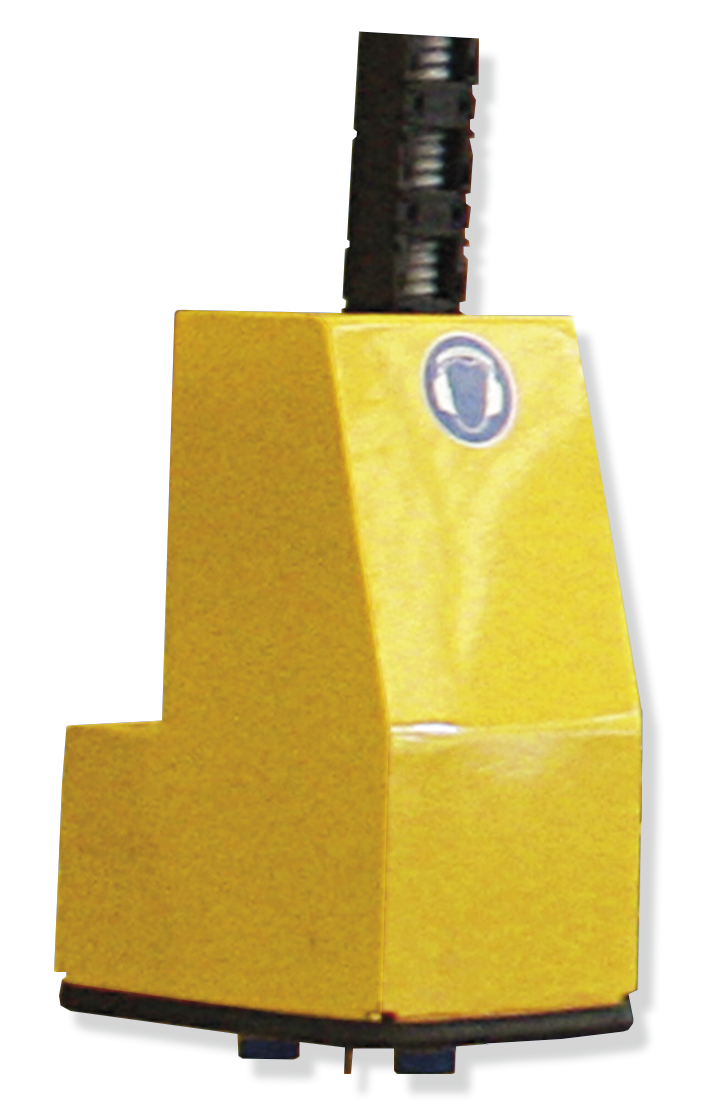

MicroPunch marking unit is designed for fast and simple micro-percussion marking of plates, pipes or…

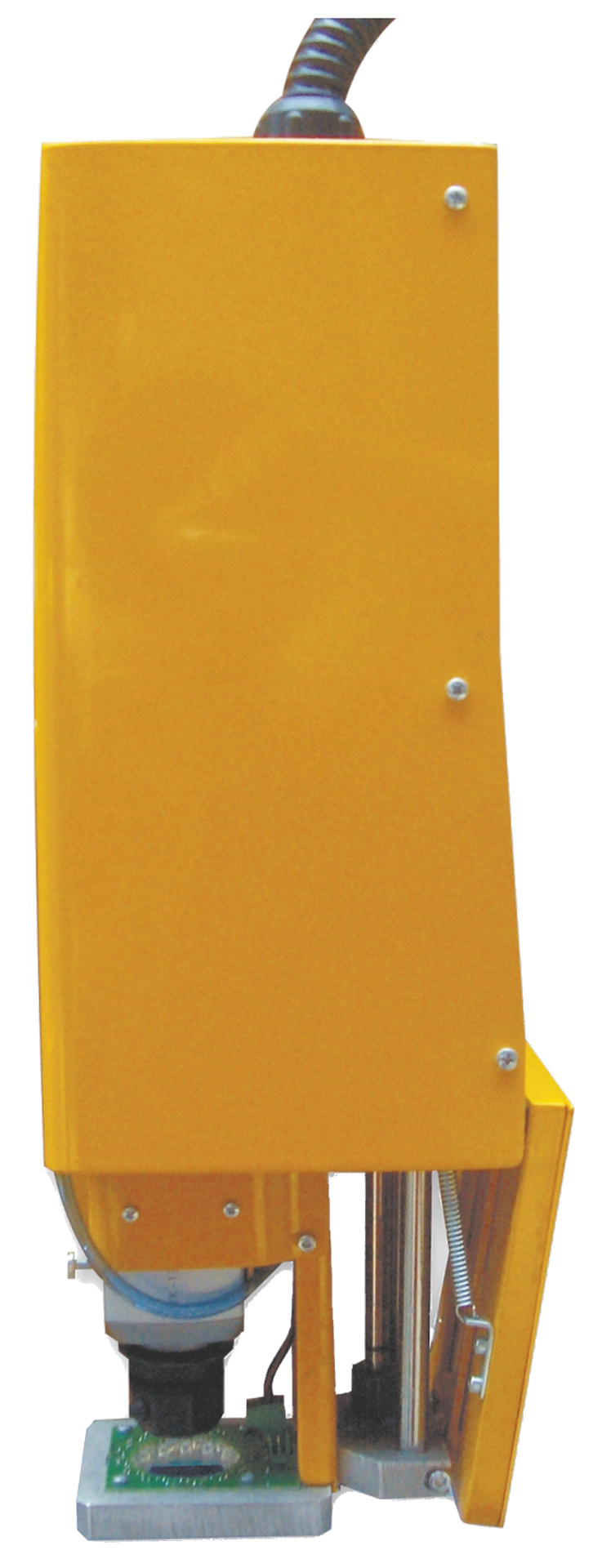

This camera can be used for two applications: Template scanning The template is scanned and…

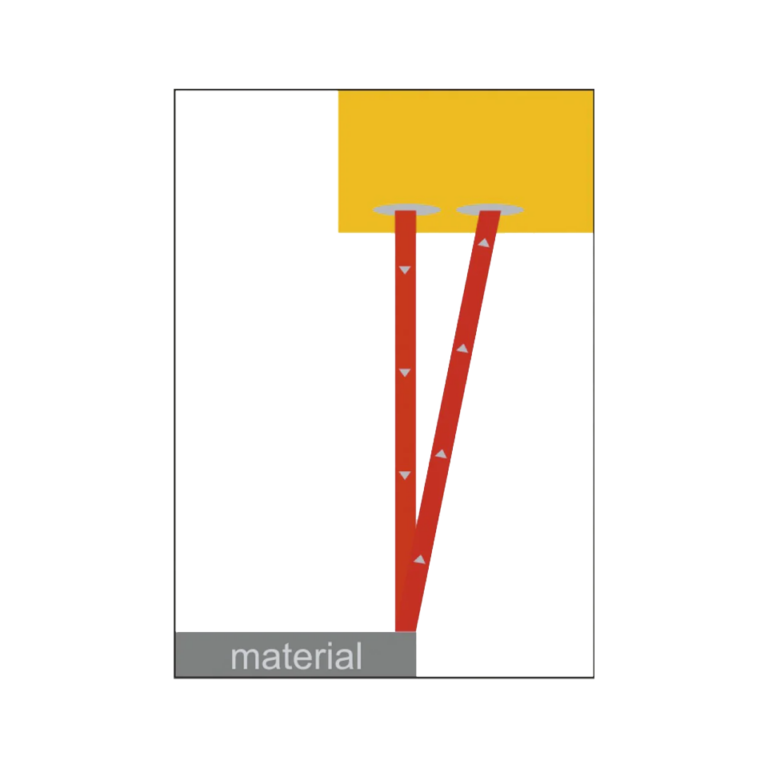

The Automatic Plate Alignment is a feature of the control system that enables automatic setting…

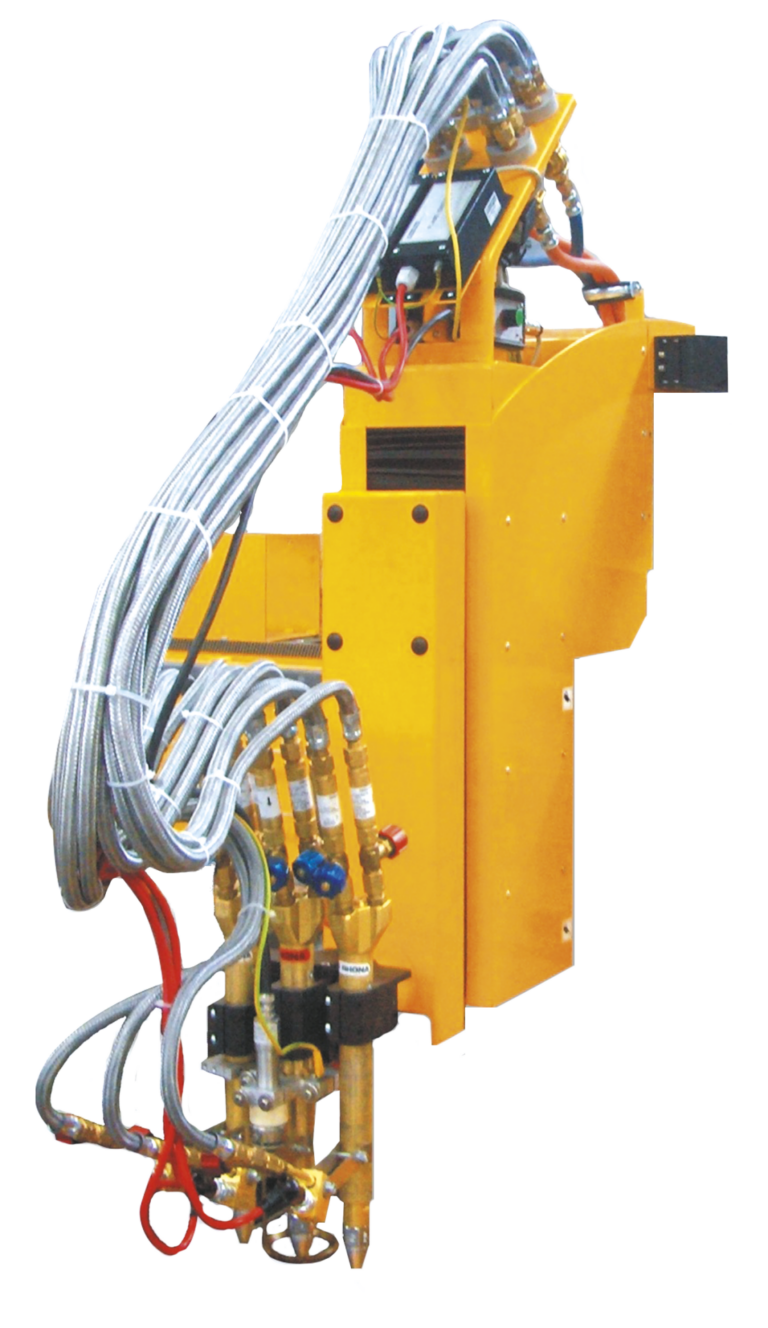

This tool station with a fork-type torch is intended for cutting stripes with oxyfuel torches…
It is possible to add another touch screen on the gantry which has the all…
Tilting tool station enables automatic setting of the torch’s tilt for bevel cutting with plasma…

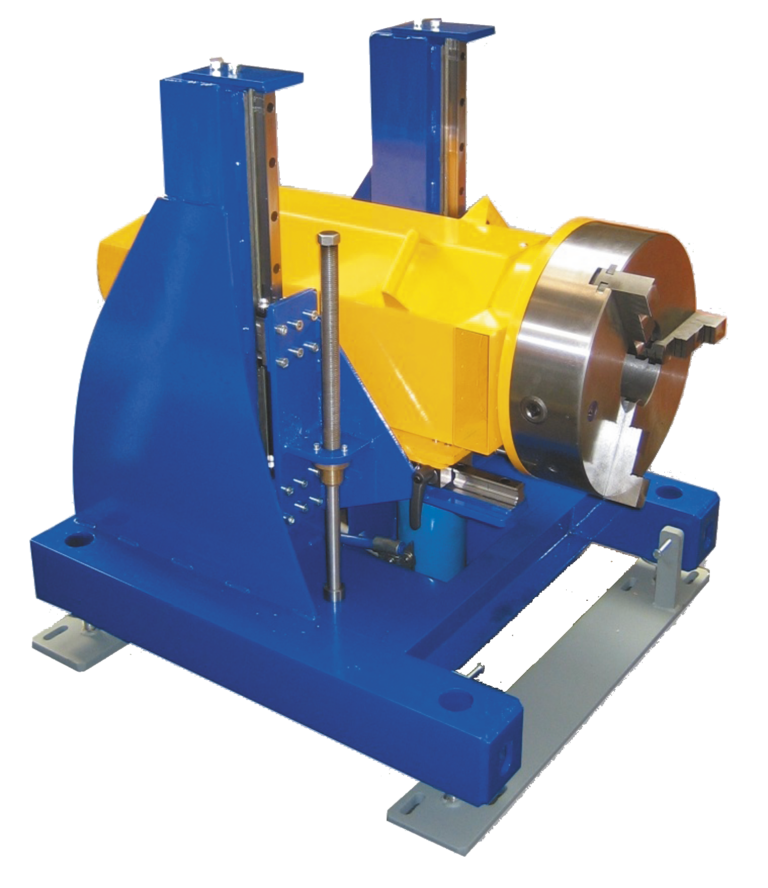

RSV is dedicated for clamping and turning of pipes and profiles. Together with plasma rotator…
The 3D tilting plasma tool station enables bevel cutting with possibility of tilting up to…
Video
Technical parameters
| Working length | 1500 – 30000 mm |
|---|---|
| Working width | 1500 – 4000 mm |
| Max number of tool stations | 4 (6 oxyfuel) |
| Max thickness of material cut by plasma | according to the plasma source |
| Max thickness of material cut by oxyfuel | 150 mm (optionally 200 mm) |
| Bevel cutting | yes (see Accessories) |
|---|---|
| Pipe cutting | Ø 30 – 700 mm, max 10 t |
| Drilling and tapping | up to Ø 13 mm |
| Positioning speed | max 51 m/min (linear guides), max 43 m/min (rails) |
| Bidirectional repeatability | 0.05 mm/m |

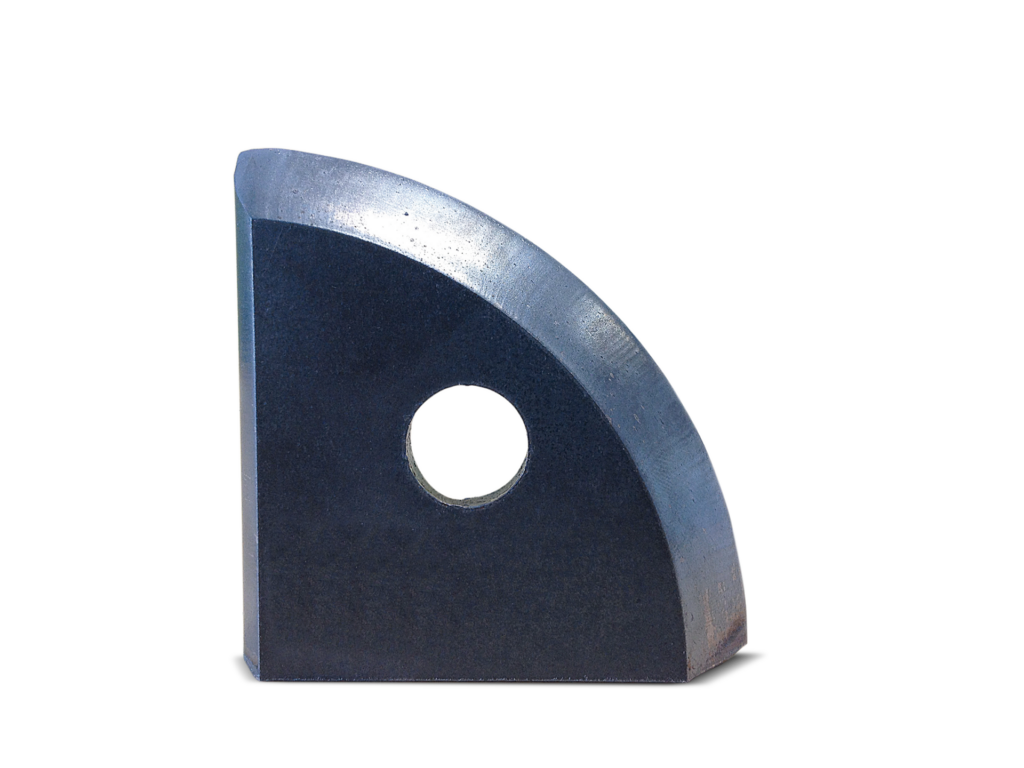

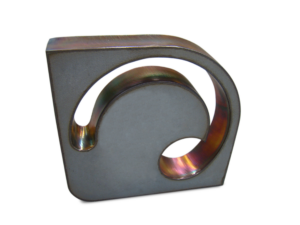

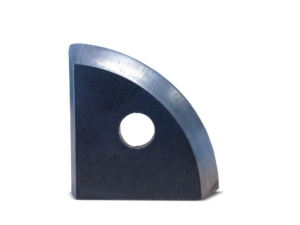

Samples
