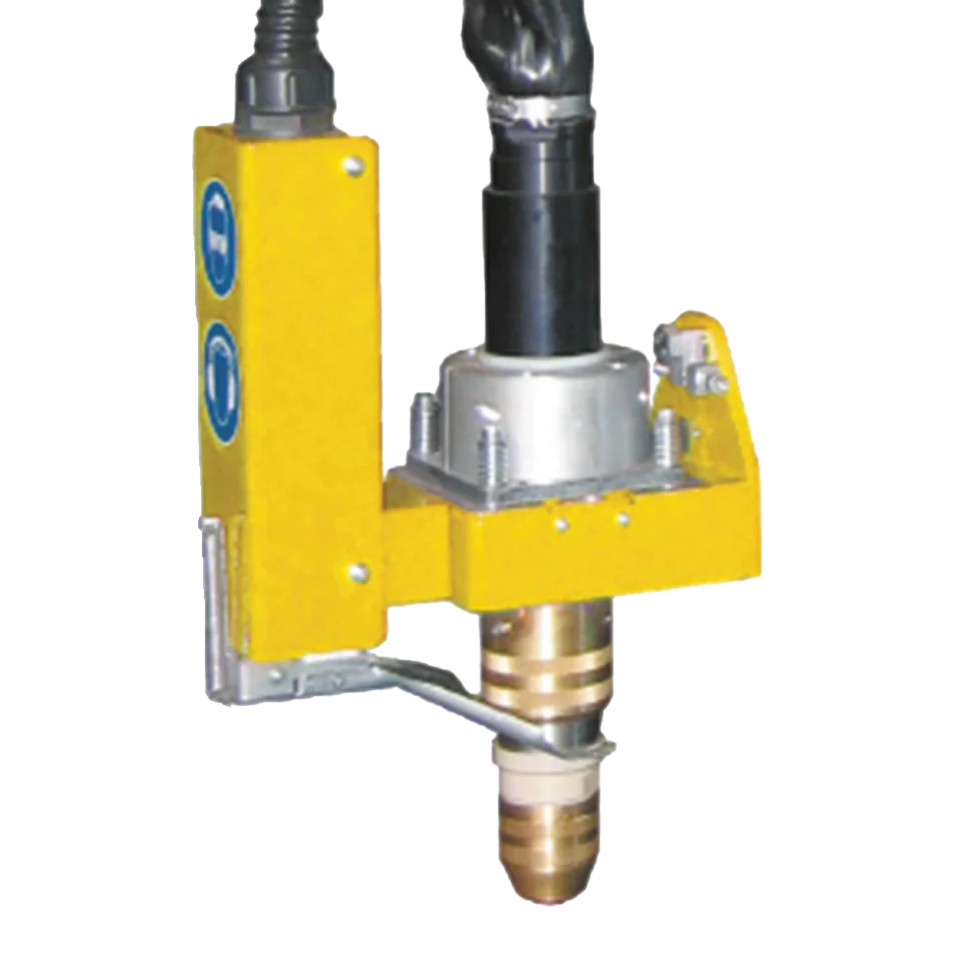

Plasma Straight Tool Station
Plasma tool station for straight (vertical) cutting comes with anti-collision protection, laser pointer, automatic torch-height control by arc-voltage and full support of plasma marking.
Plasma Straight Tool Station
Technical parameters
MetricImperial
| Degrees of freedom | 4 (Y, Z) + X on the machine |
|---|---|
| Max. thickness of material | according to plasma source |
| Total stroke (Z) | up to 450 mm |
| Positioning speed in Y | up to 40 m/min |
|---|---|
| Positioning speed in Z | up to 9 m/min |
“Please note: Some parameters (e.g. max. thickness of material, total stroke etc.) vary with the machine type the tool station is installed upon.
