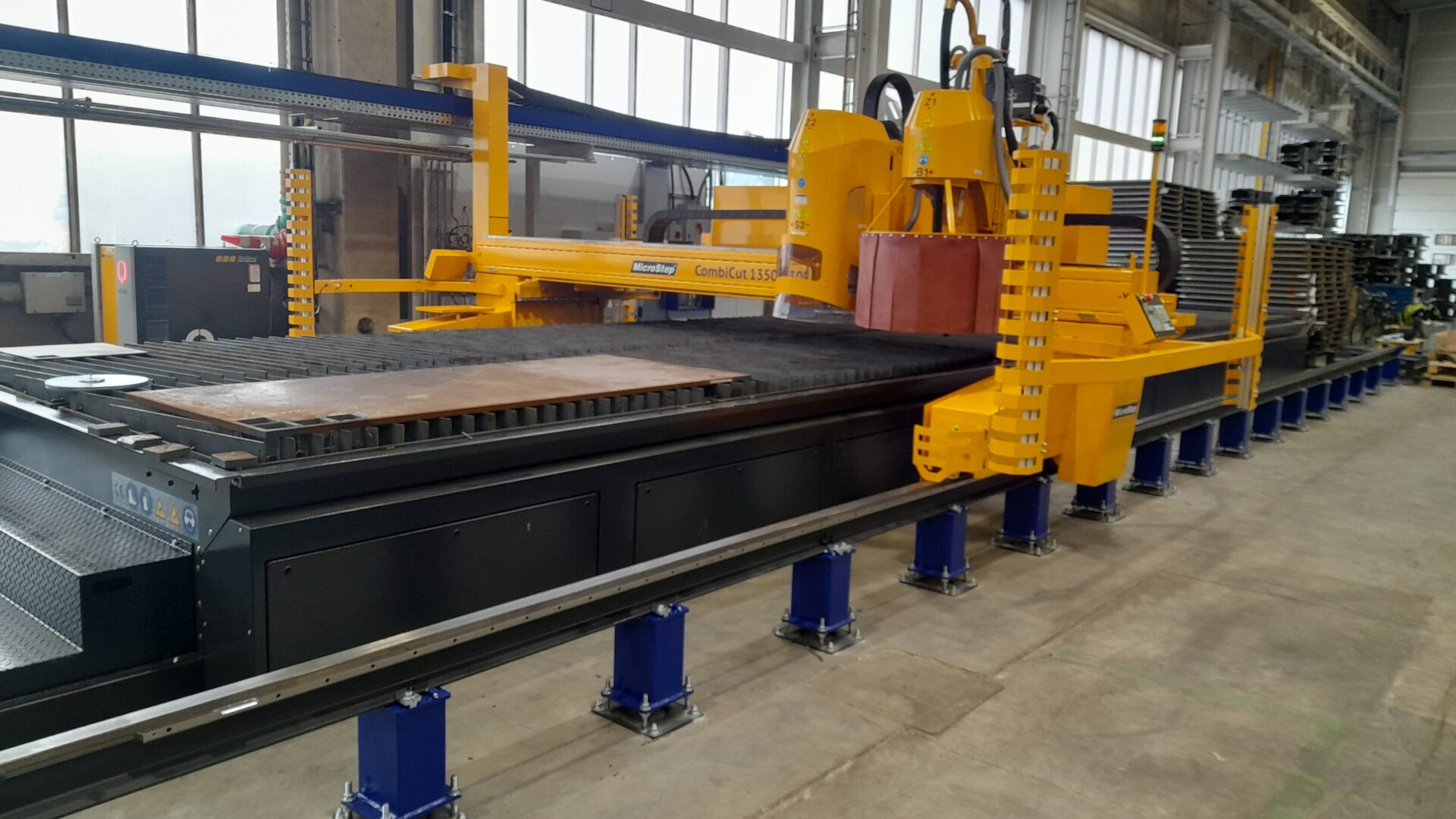

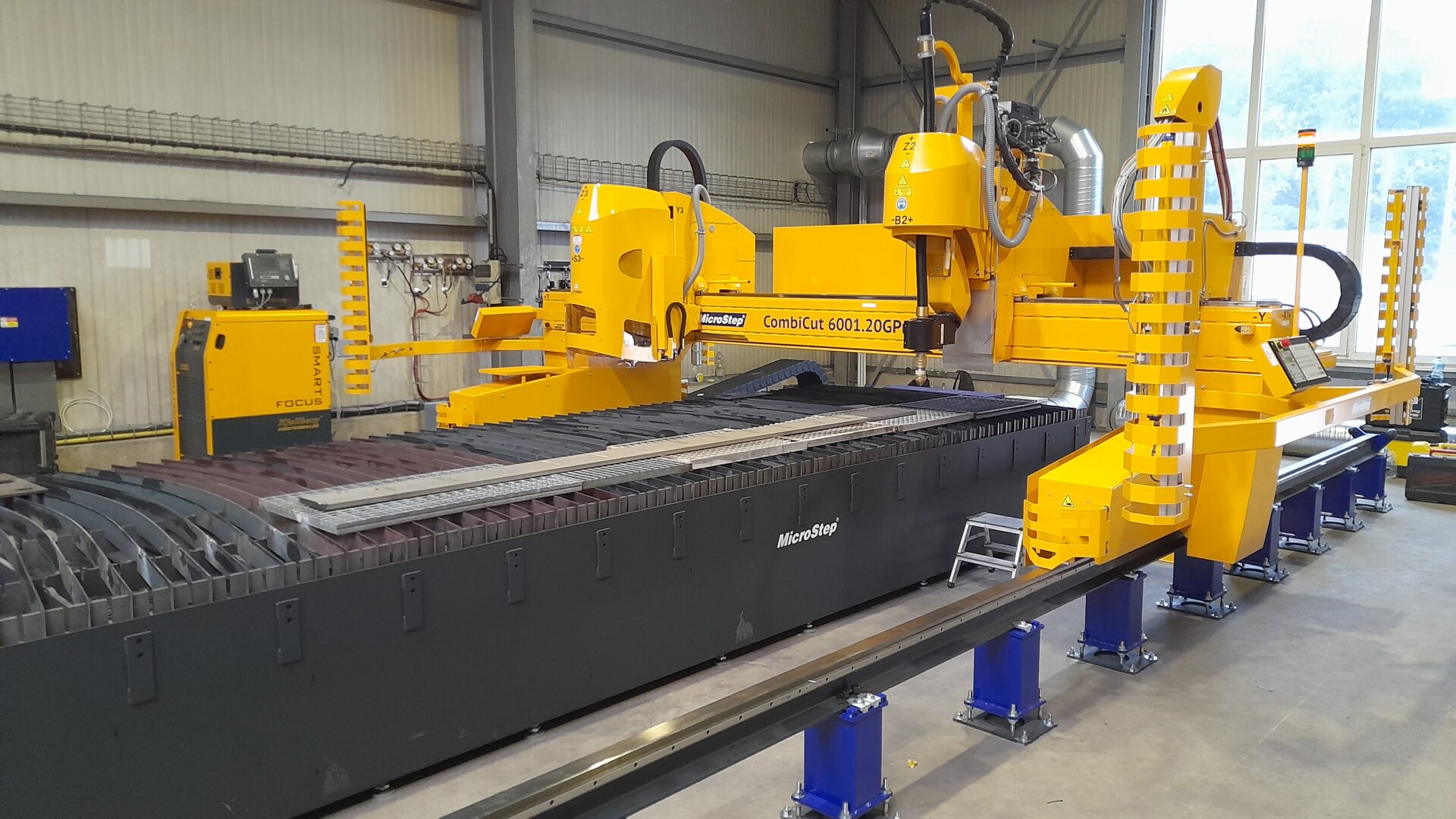

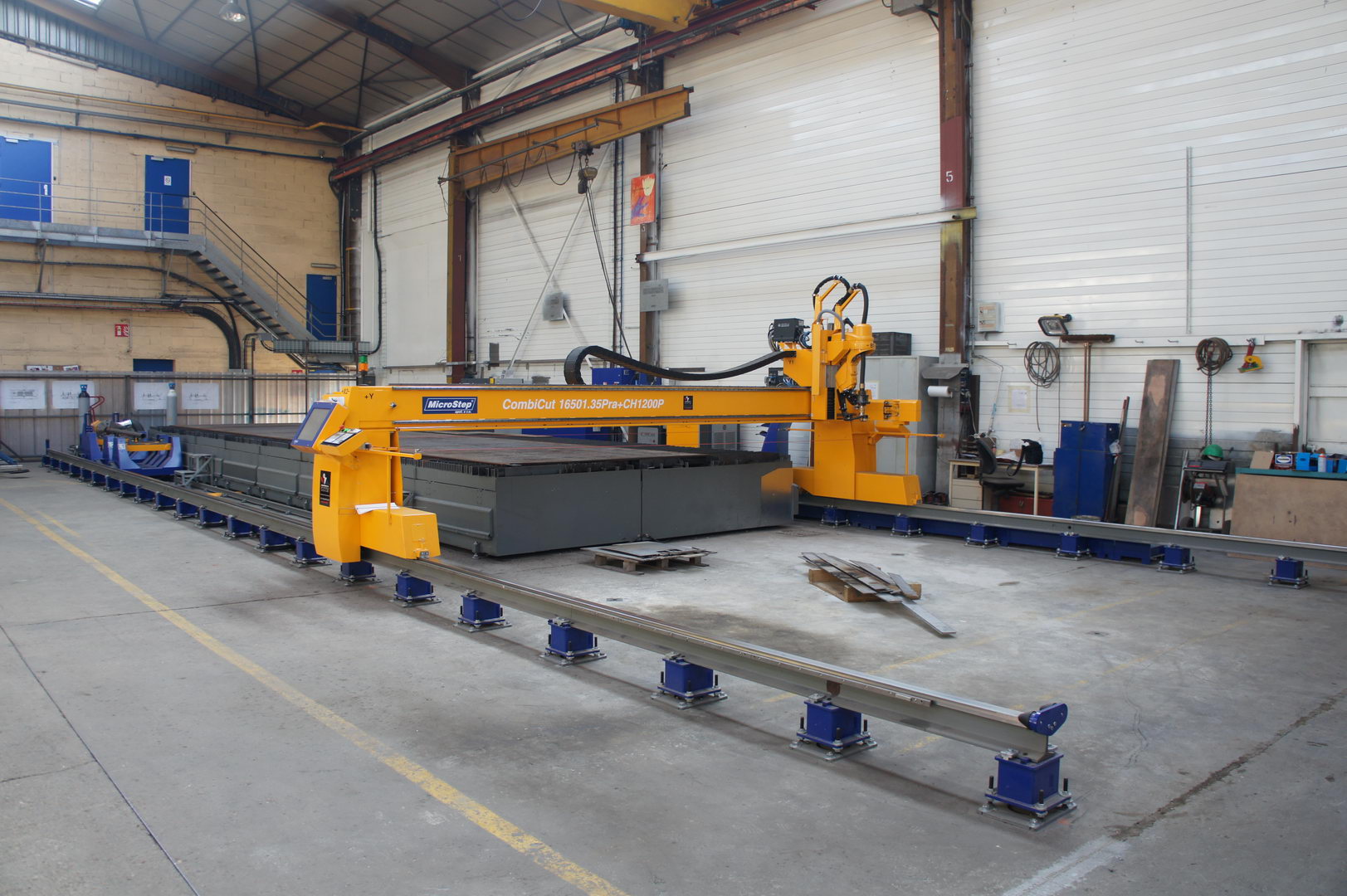

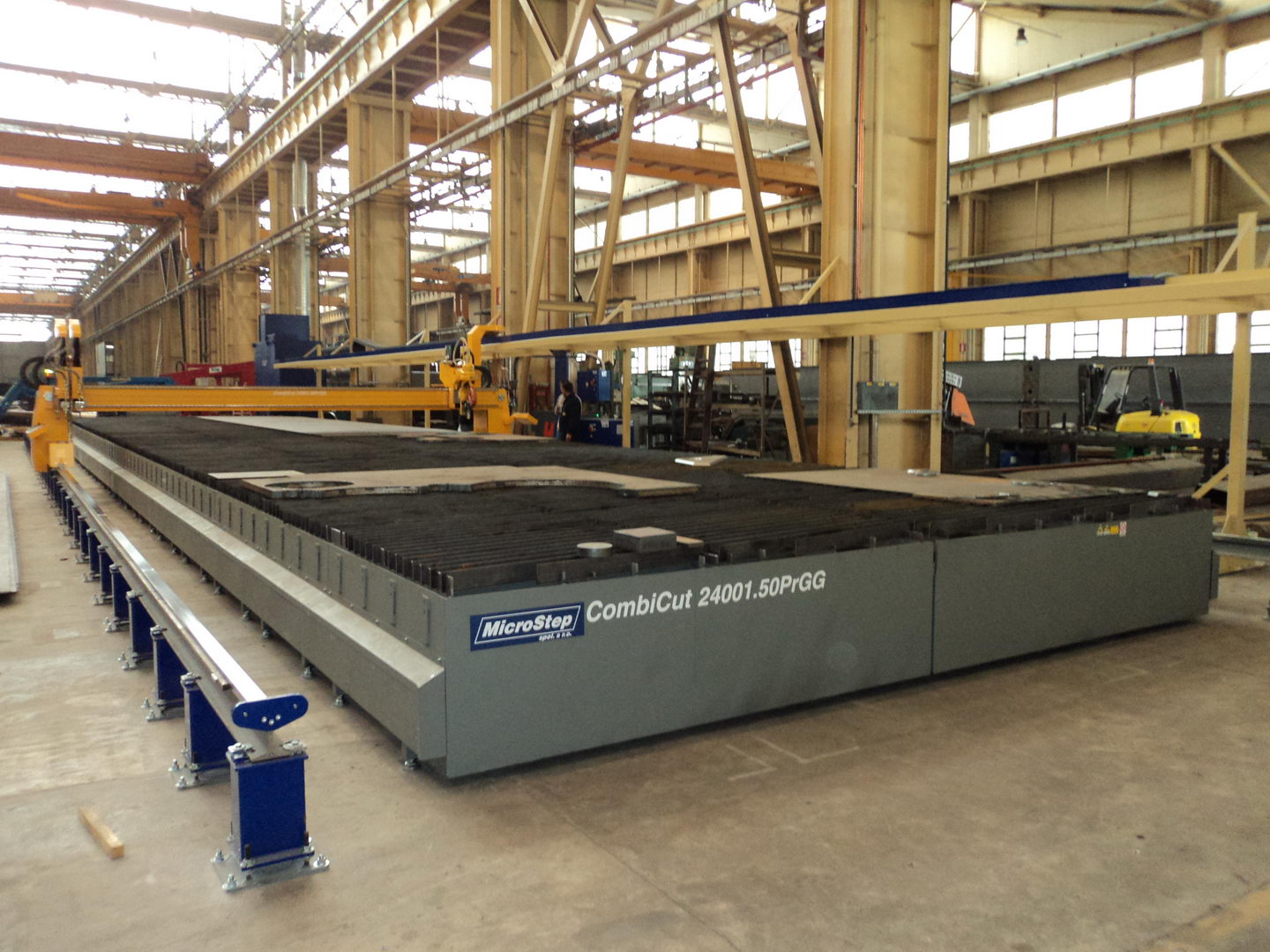

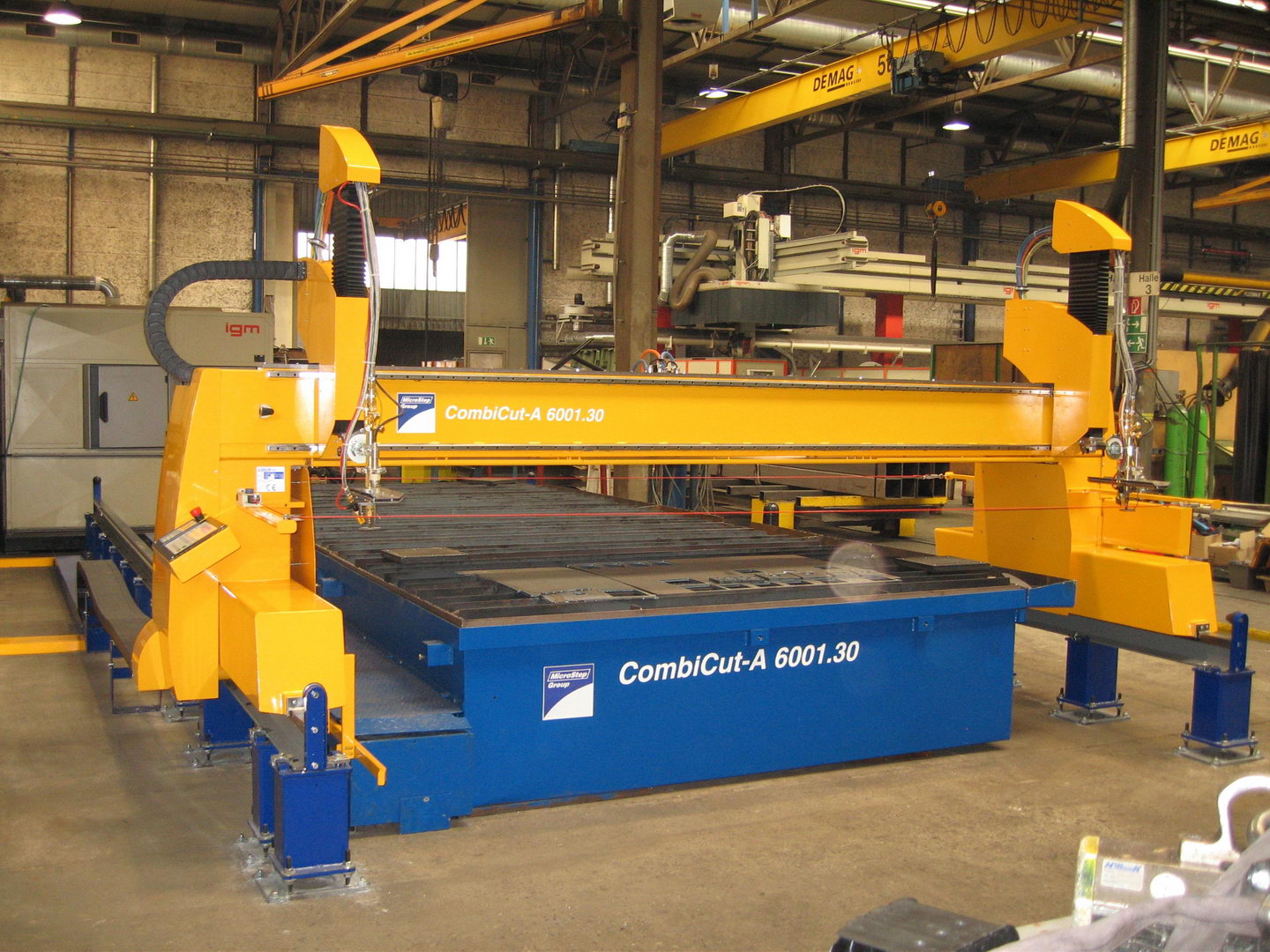

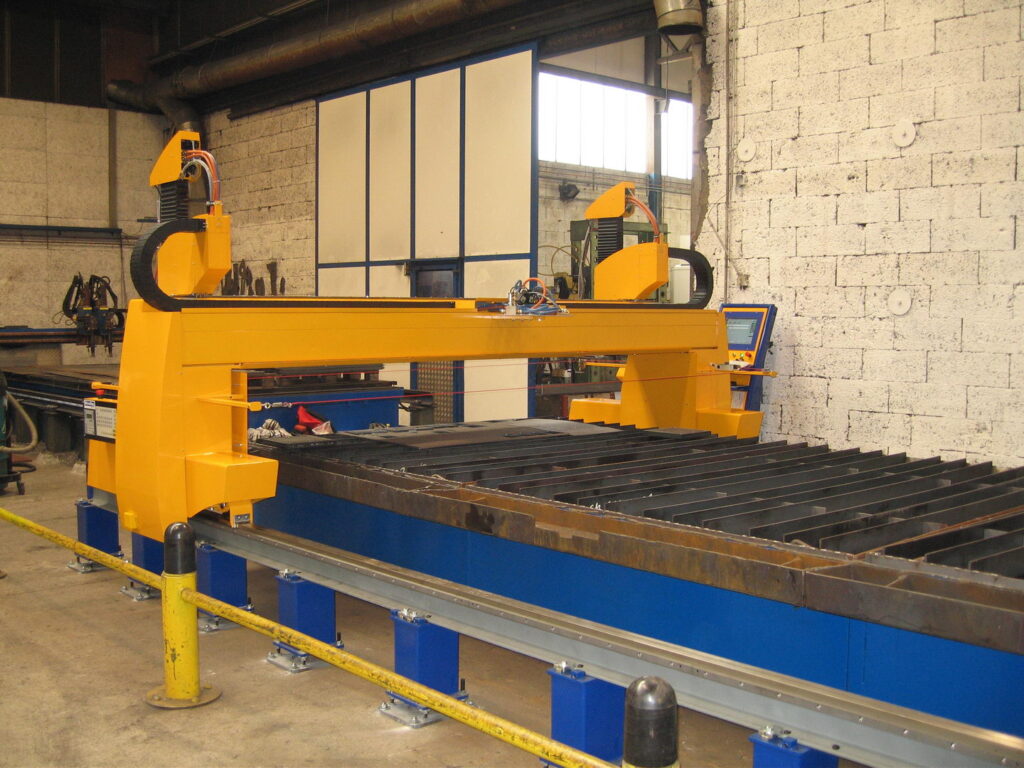

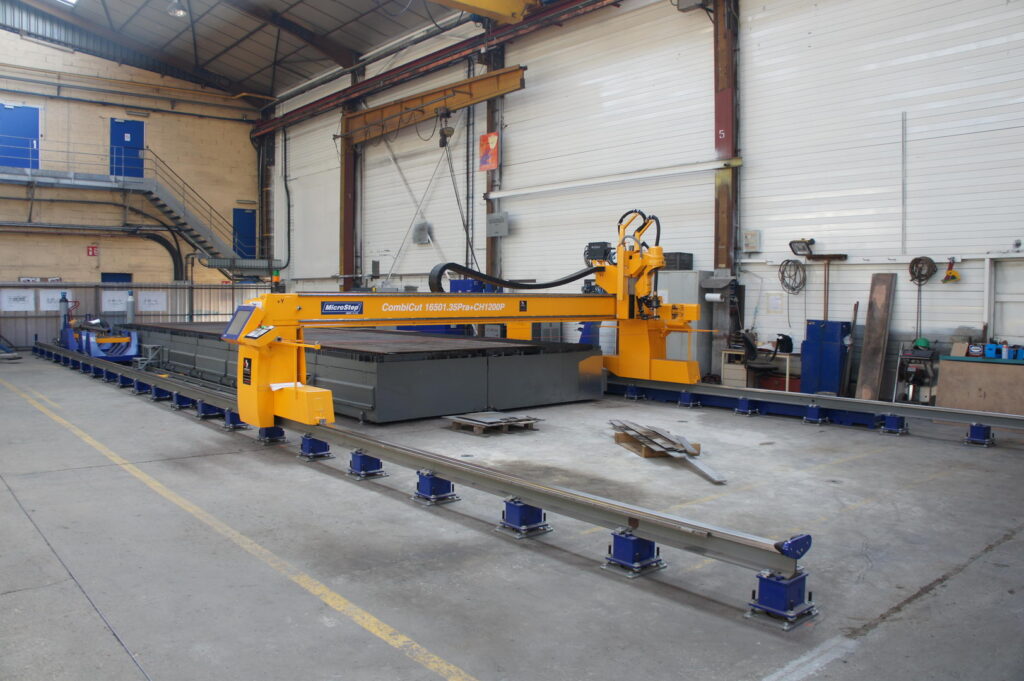

Built for tough environments
This robust and high-precision CNC machine is designed especially for multiple-shift high-performance plasma and oxyfuel cutting. It allows cutting of steel up to 300 mm, bevel cutting with a pair of rotary oxyfuel triple torches or plasma rotators, simultaneous cutting with more than 10 torches, drilling up to Ø 40 mm, inkjet or micropercussion marking, pipe and dome processing.
Features
Extreme conditions present a great challenge to any cutting machine. With CombiCut, MicroStep has come up with a solution that is suitable also for nonstandard environments.
- Operating temperatures: -10° to +45°C
- Resistance to dirt, dust and humidity
- Robust machine design for longevity even in heavy-duty cutting operations
- Increase your productivity with parallel cutting operations
- Possibility of parallel bevel cutting with several rotator bevel heads
- Automatic spacing of slave tool stations (option)
- Individual selection of tool parameters to fit your requirements
- All tools controlled automatically from the iMSNC® control system
- Fully automatic and highly precise bevel cutting up to 50° (plasma rotator) or up to 60° (oxyfuel rotator)
- Bevel cutting of plates, pipes, profiles and domes
- Additional Beveling Process (ABP) – simple and reliable subsequent weld seam preparation
- Intuitive and easy programming of bevels with MicroStep’s CAM solutions
- Auto-calibration of rotator via ACTG® feature for consistent quality and precision
CombiCut machines are designed to withstand high workloads in multiple-shift operations including multi-torch parallel oxyfuel cutting of material thicknesses up to 300 mm. Intelligent temperature management keeps the system from exceeding its limits even in harsh environmental conditions and under intensive cutting load.

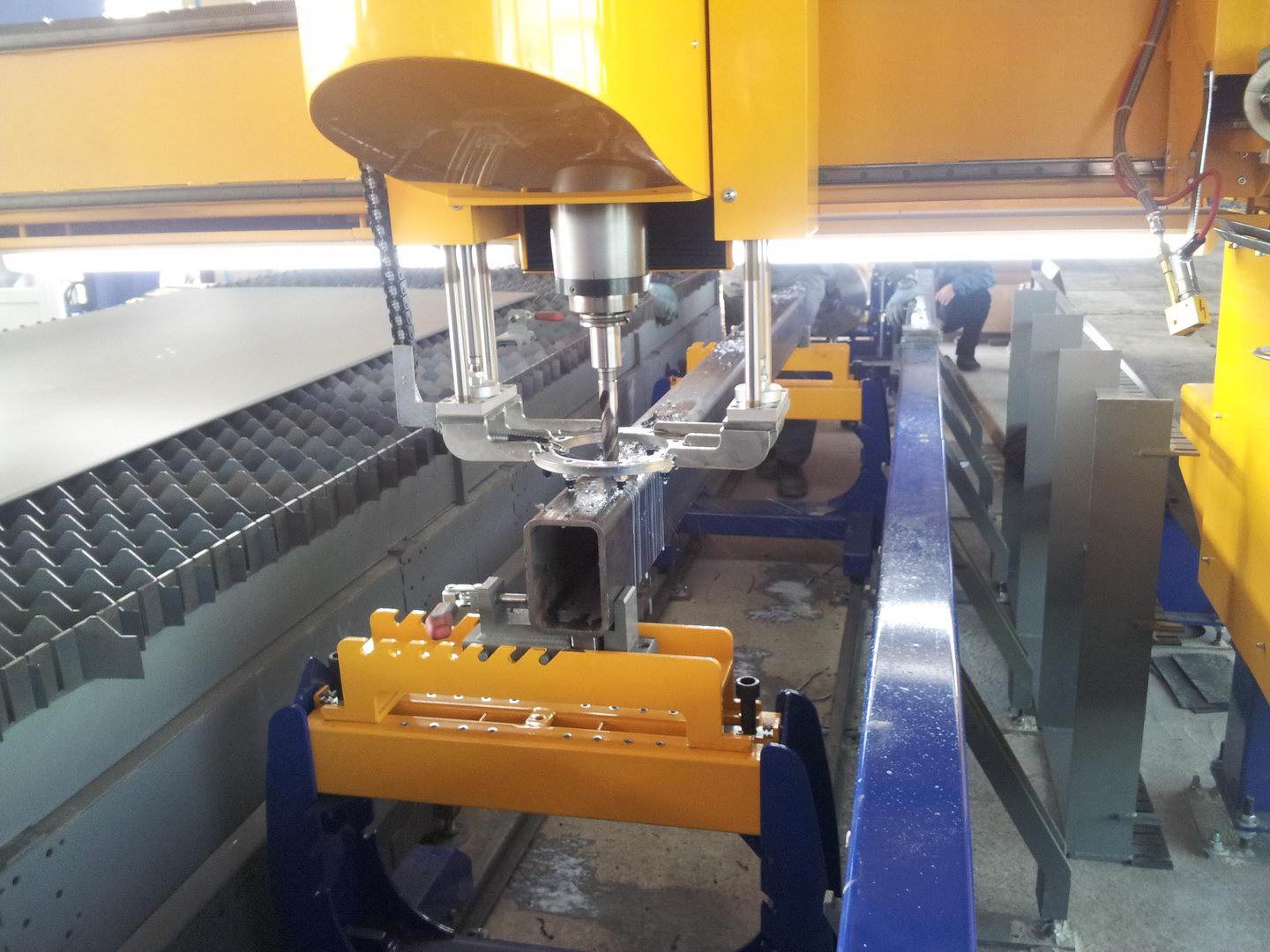

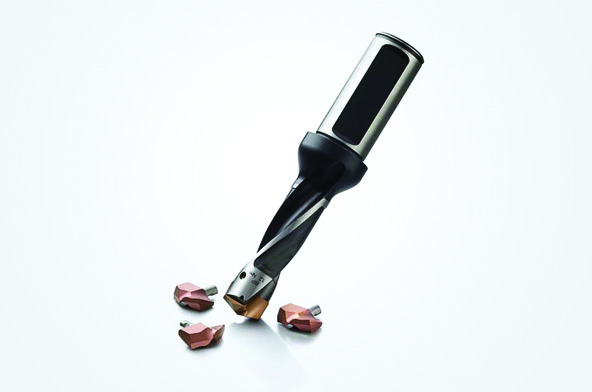

The fully automatic drilling solution provides a substantial added value for your production. Before the parts are cut, precise holes, threads and countersinks can be produced within the same cutting plan, with holes up to Ø 40 mm and threads up to M33. To enable smooth and fast tool change, the machine can be equipped with a tool magazine for 6, 8 or 16 tools.
- Enhance your production range by adding pipe and profile cutting option
- Convenient cutting program creation with MicroStep’s 2D and 3D CAM software
- High precision and dimensional accuracy reduce post-processing costs
- If required, the pipe cutting channel can be covered with additional grates and used as extension of the cutting table including sideways fume extraction

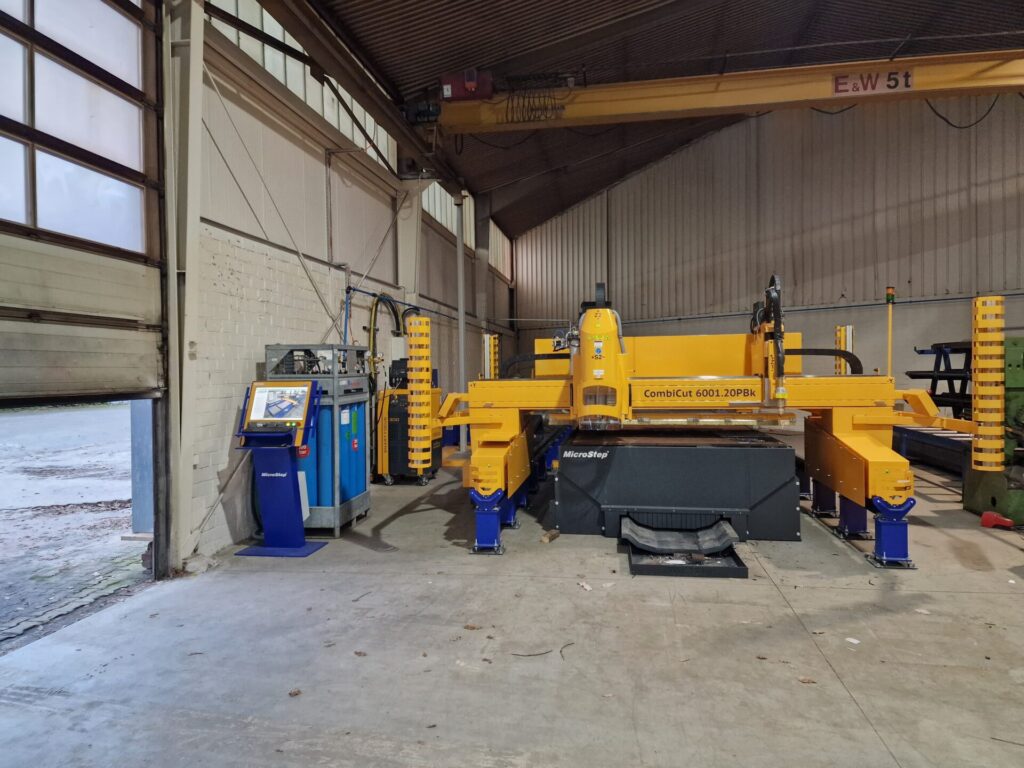

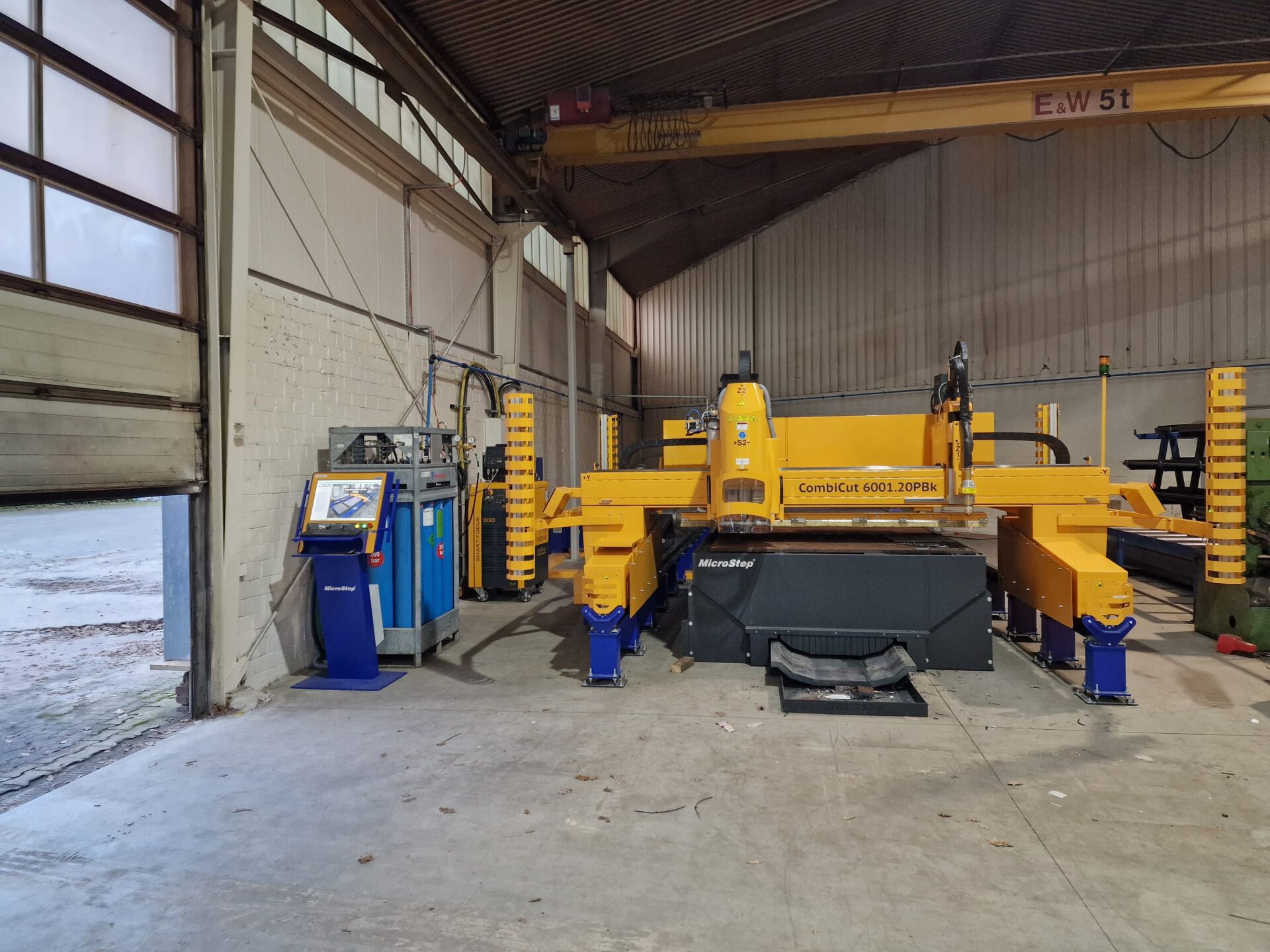

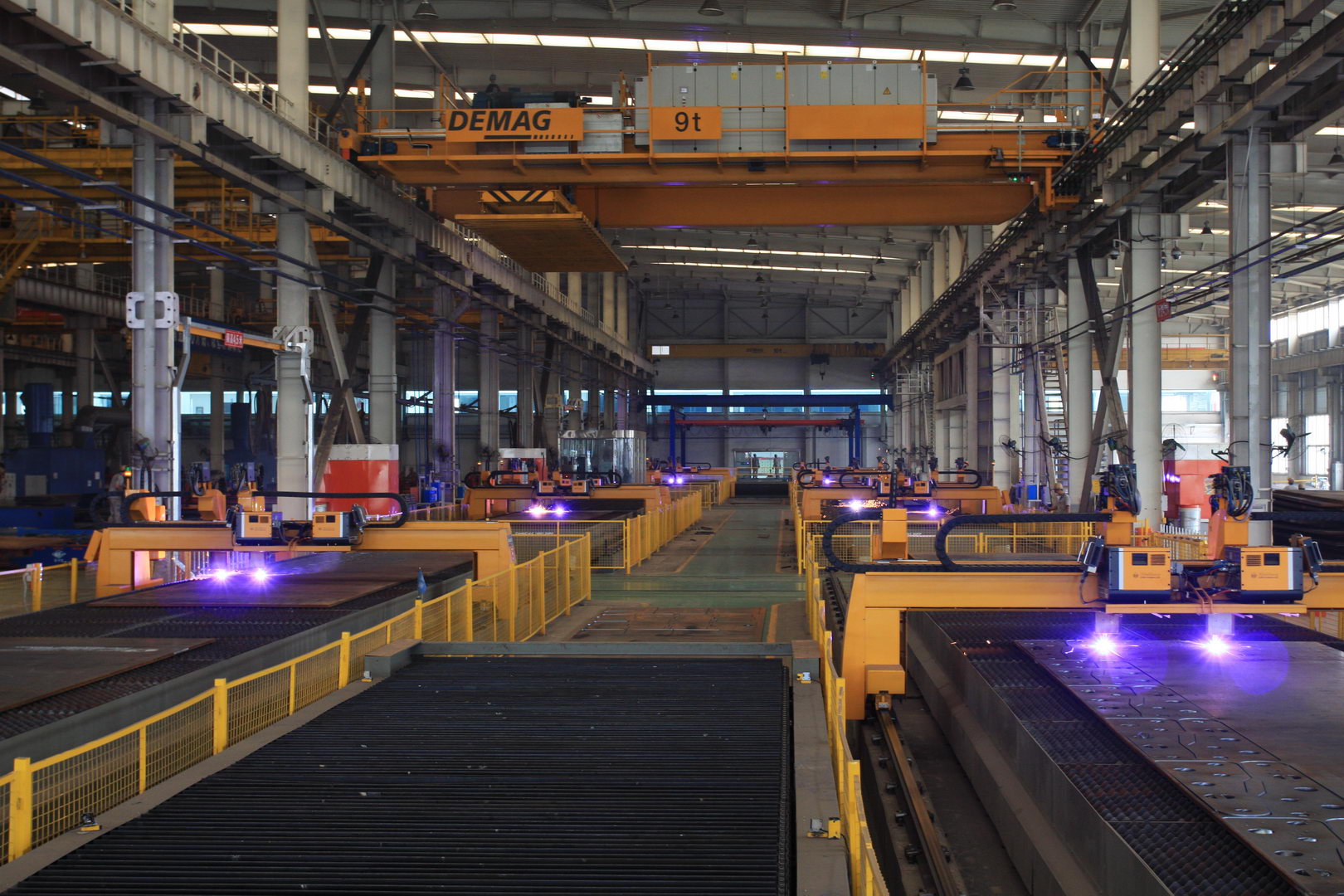

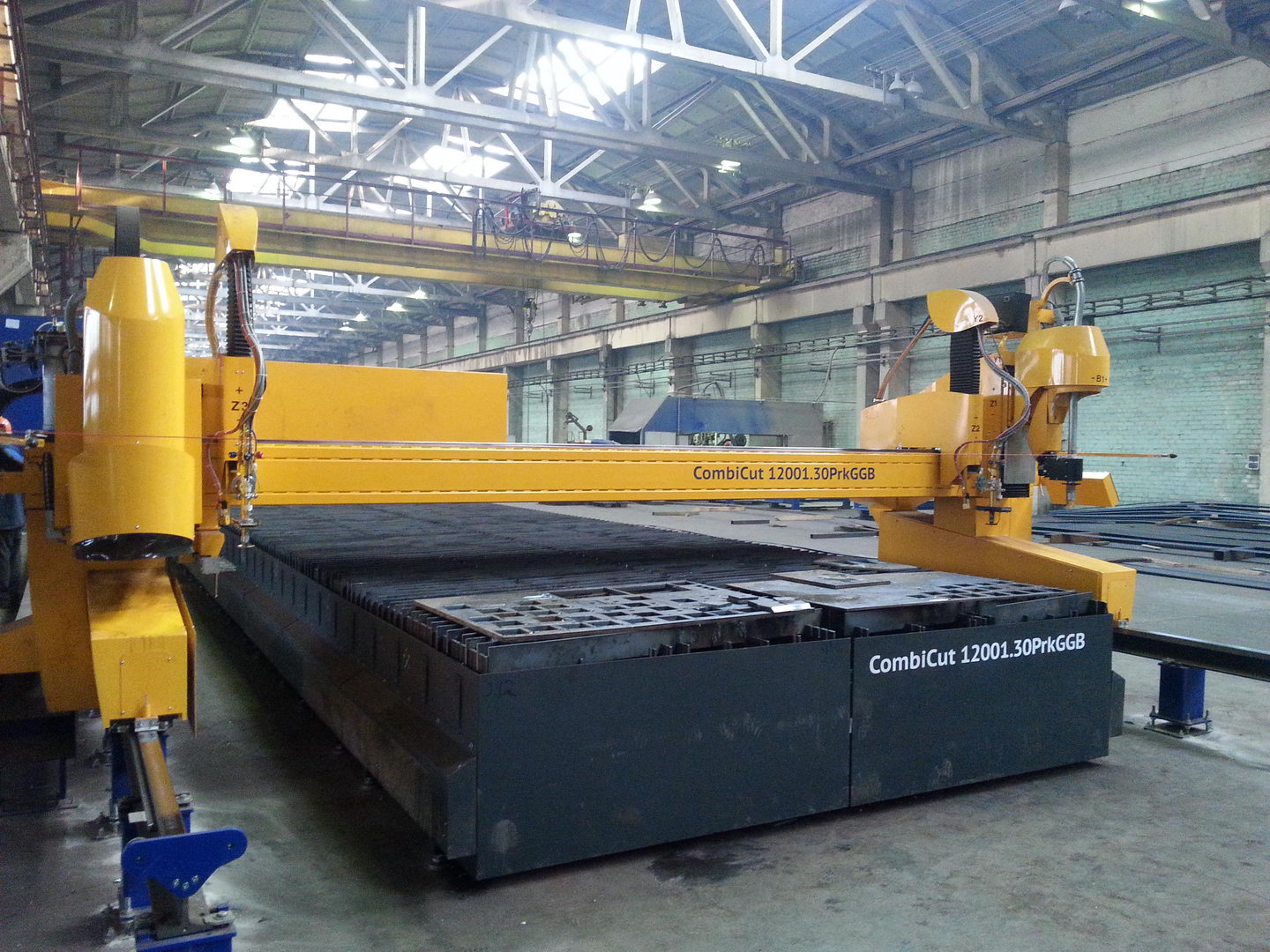

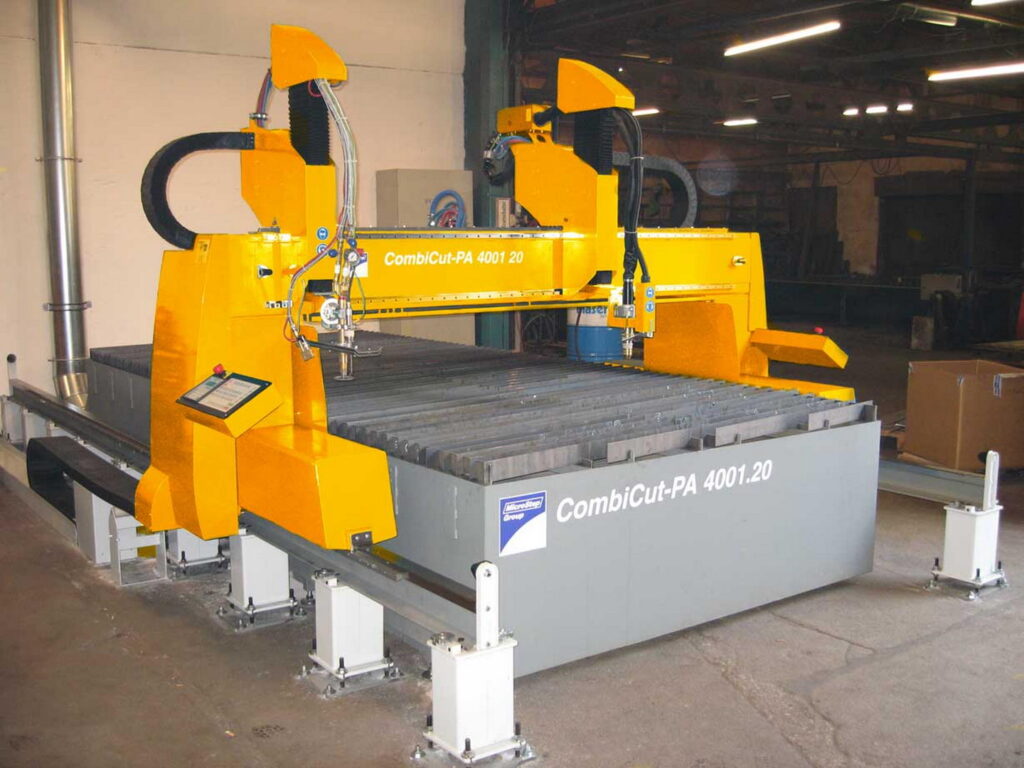

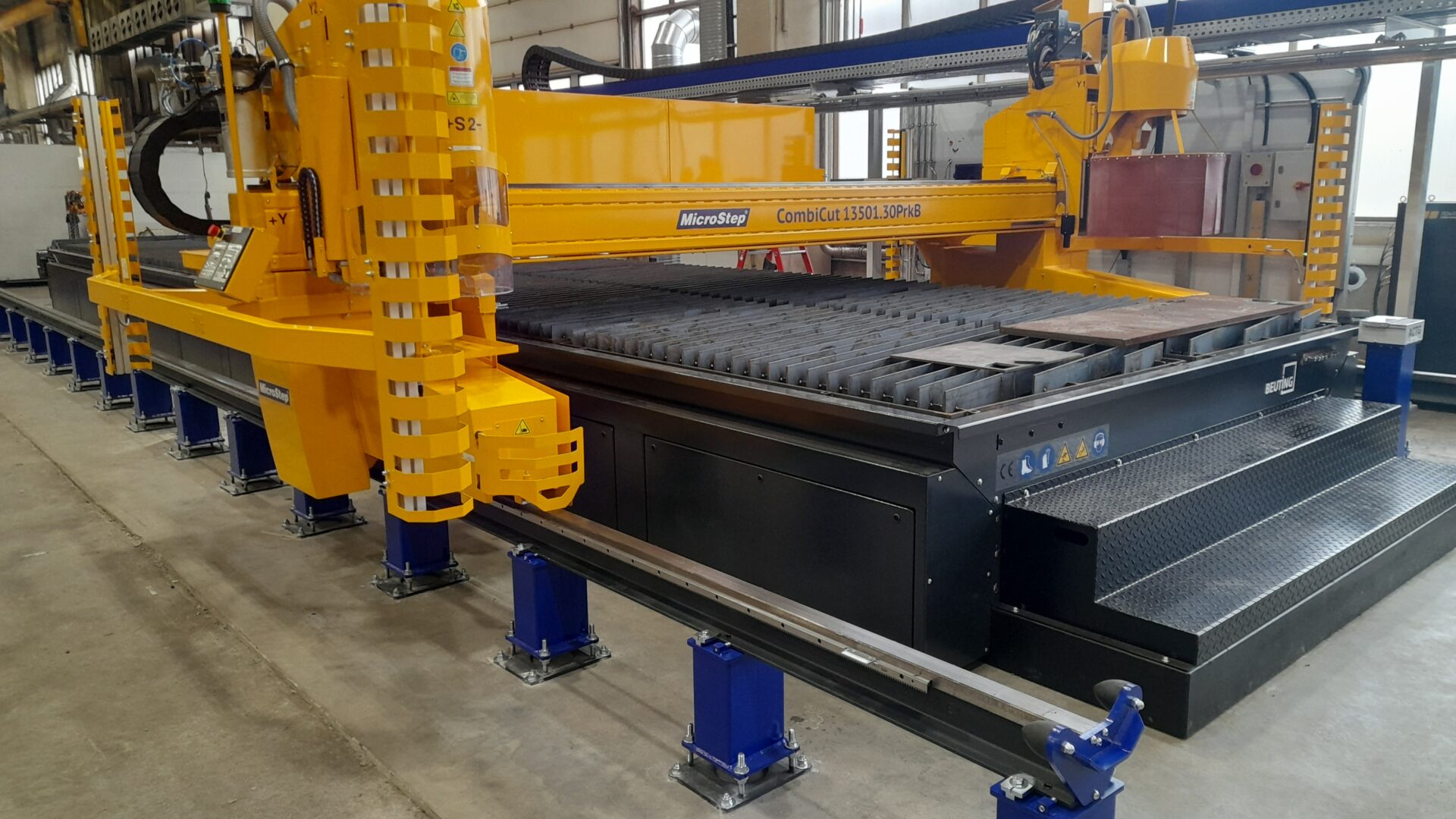

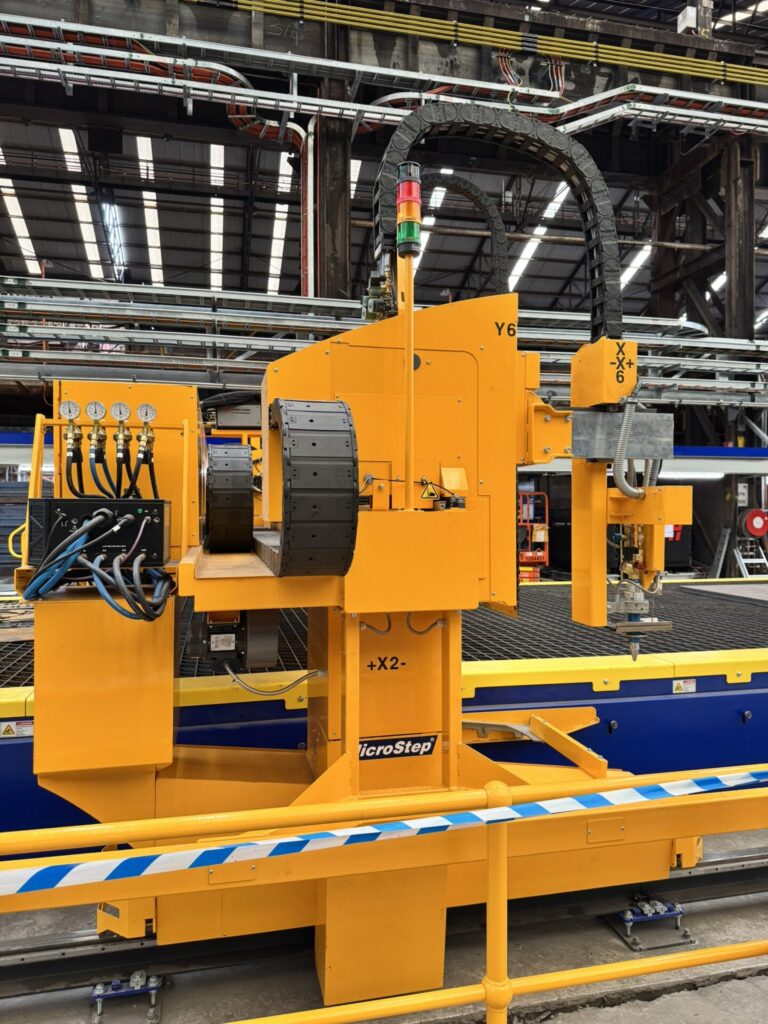

Robust and durable
Extreme conditions present a great challenge to any cutting machine. With CombiCut, MicroStep has come up with a solution that is suitable also for nonstandard environments.
- Operating temperatures: -10° to +45°C
- Resistance to dirt, dust and humidity
- Robust machine design for longevity even in heavy-duty cutting operations

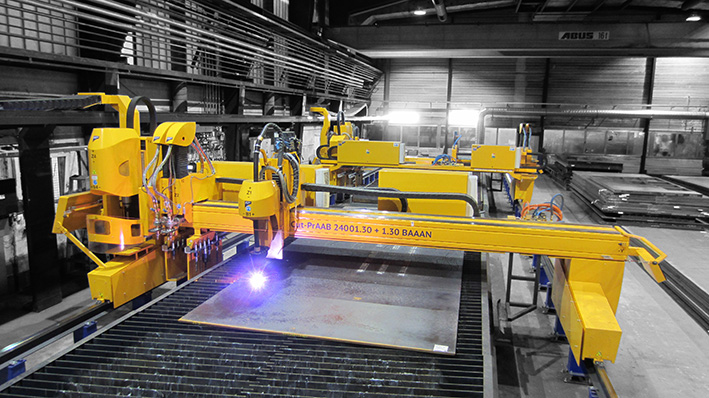

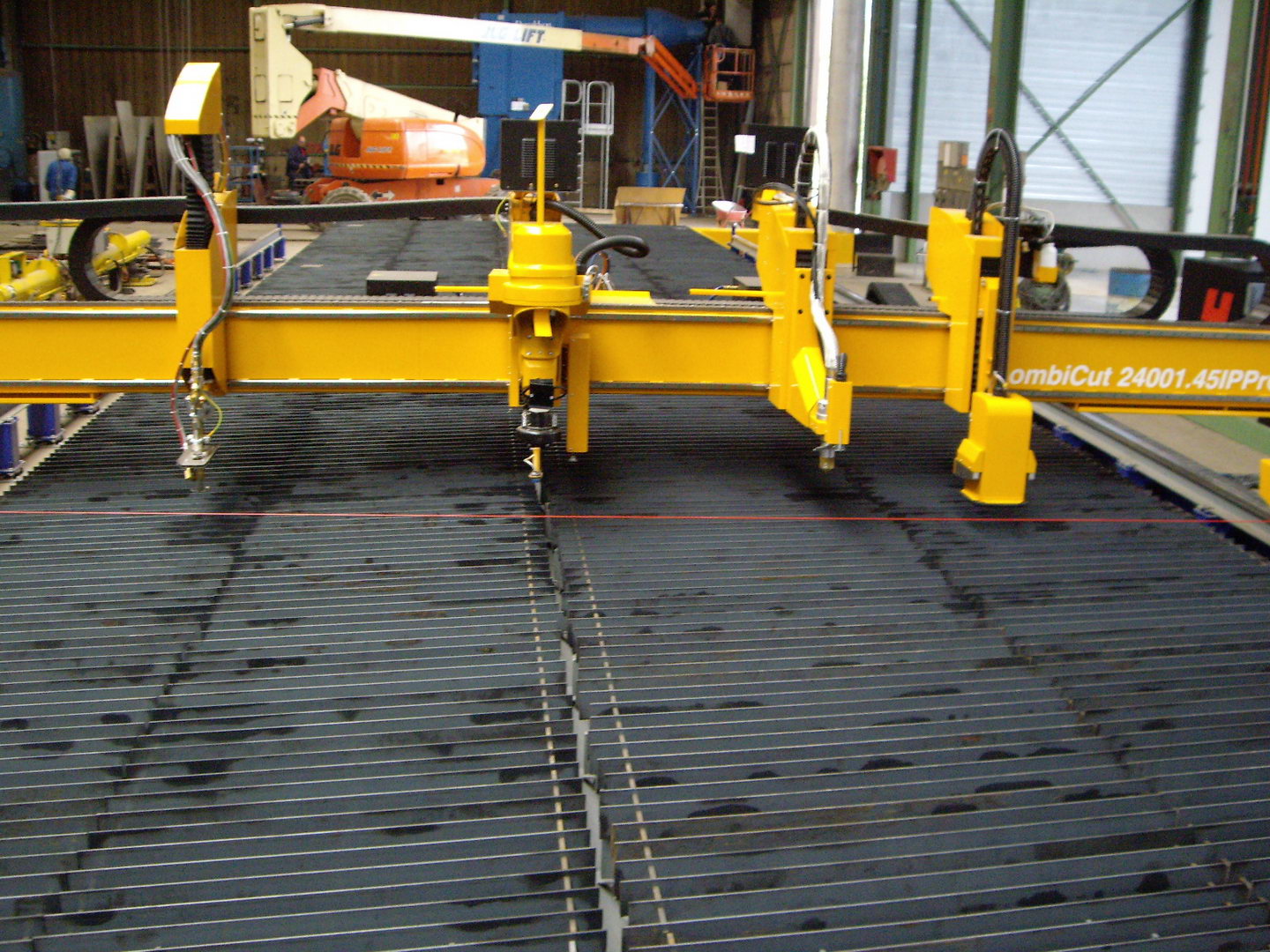

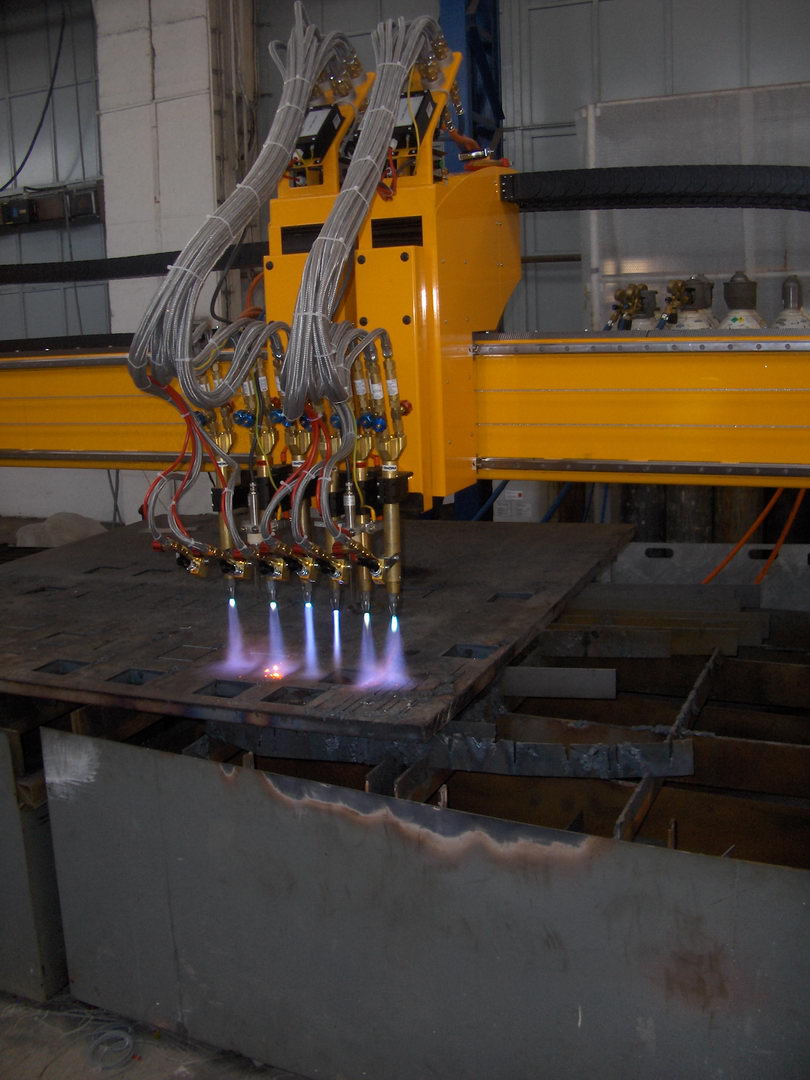

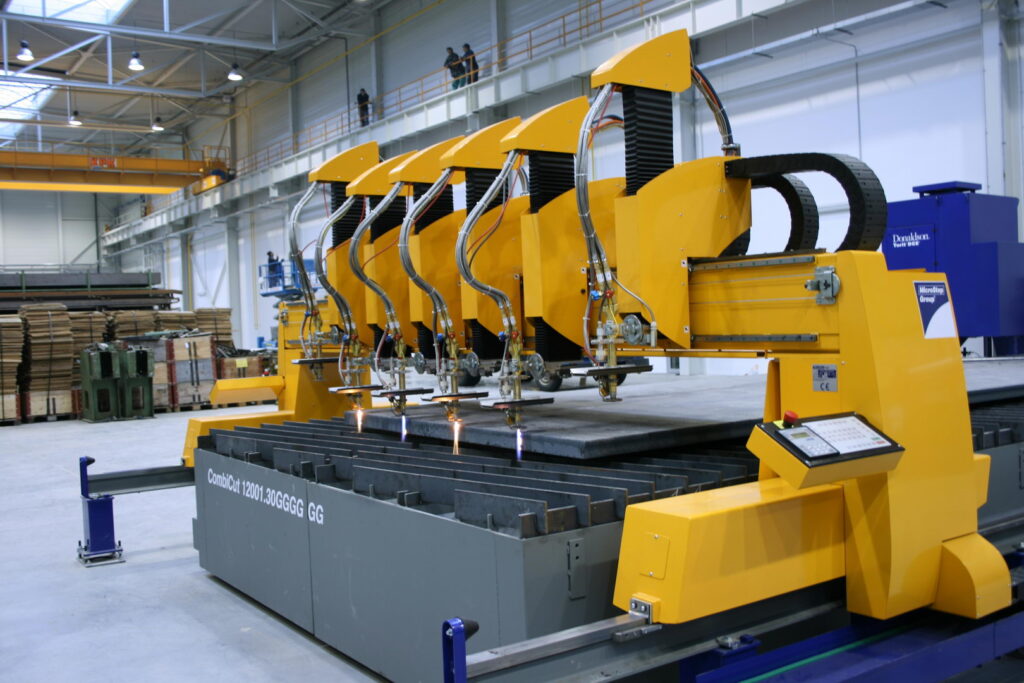

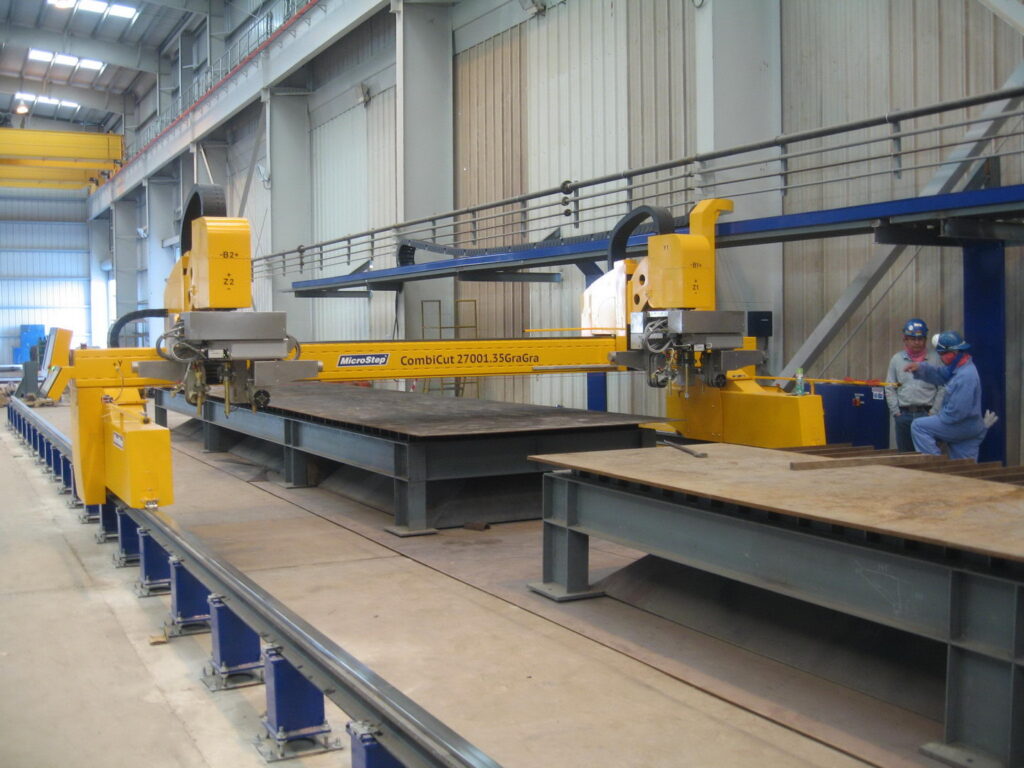

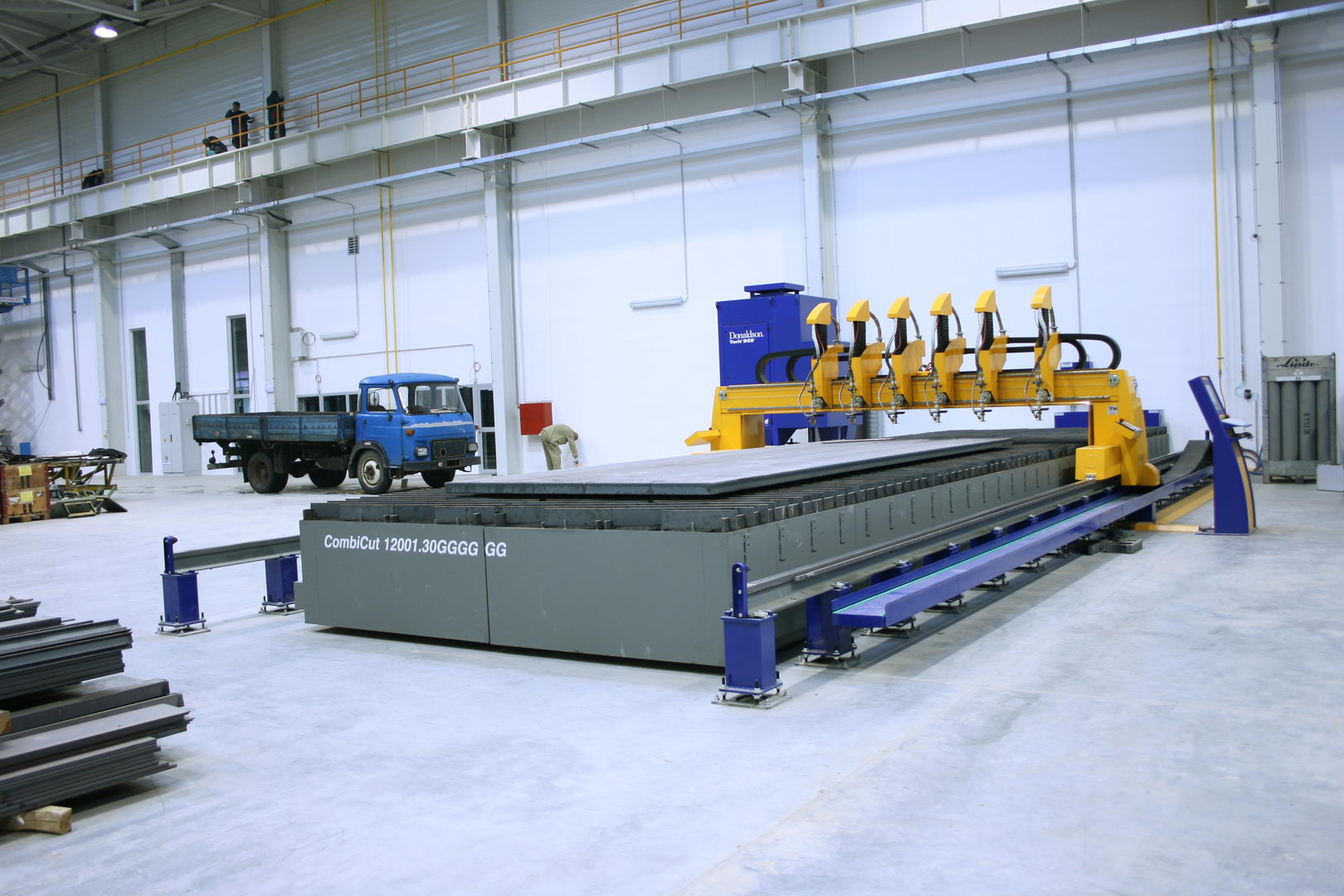

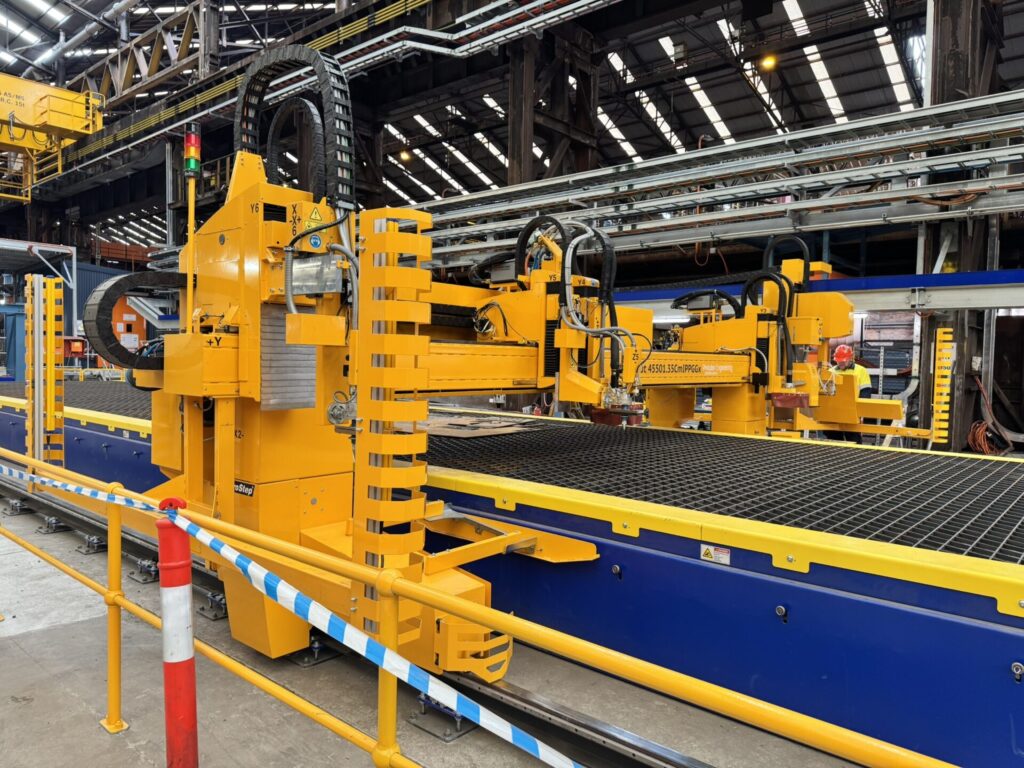

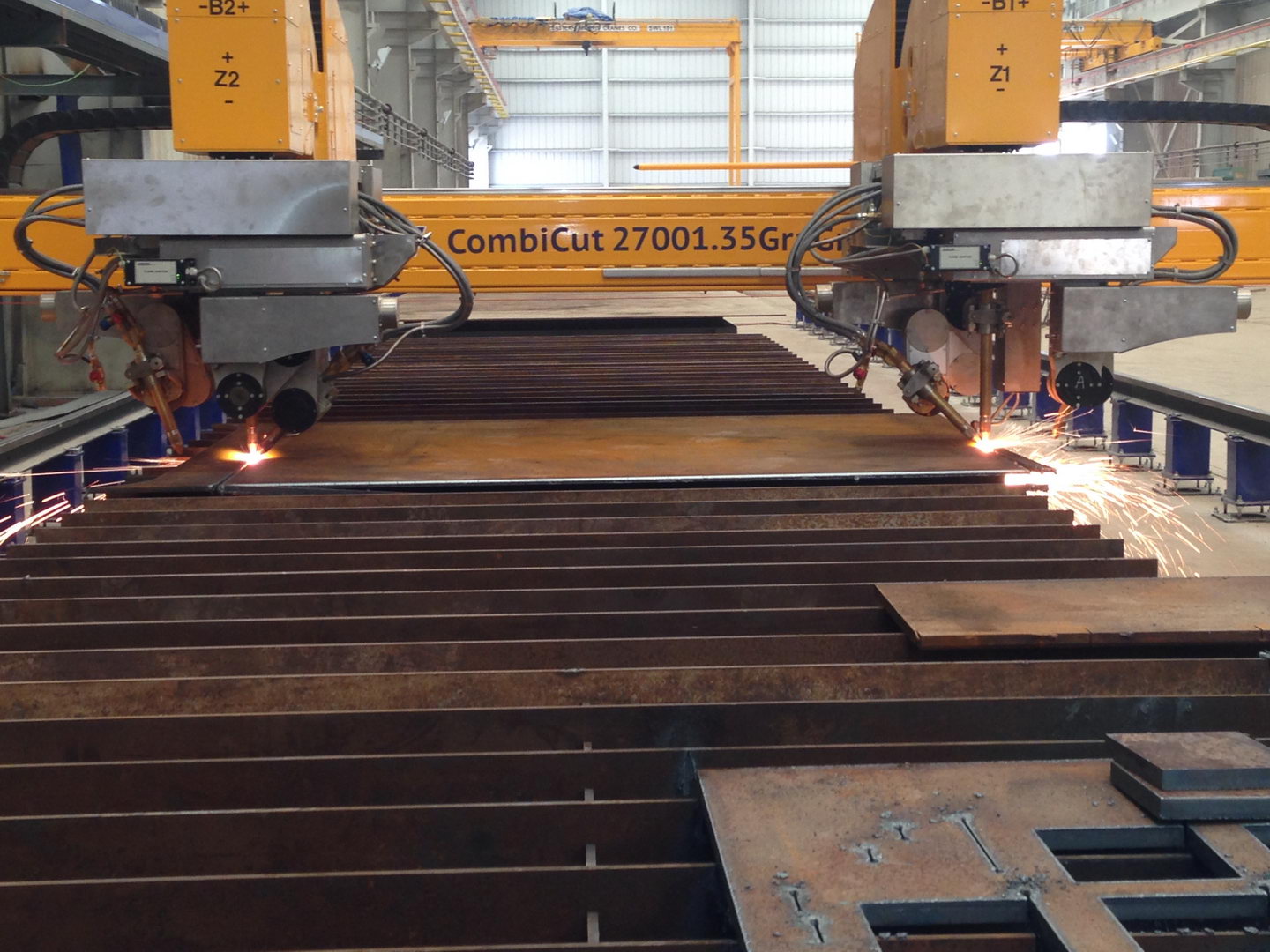

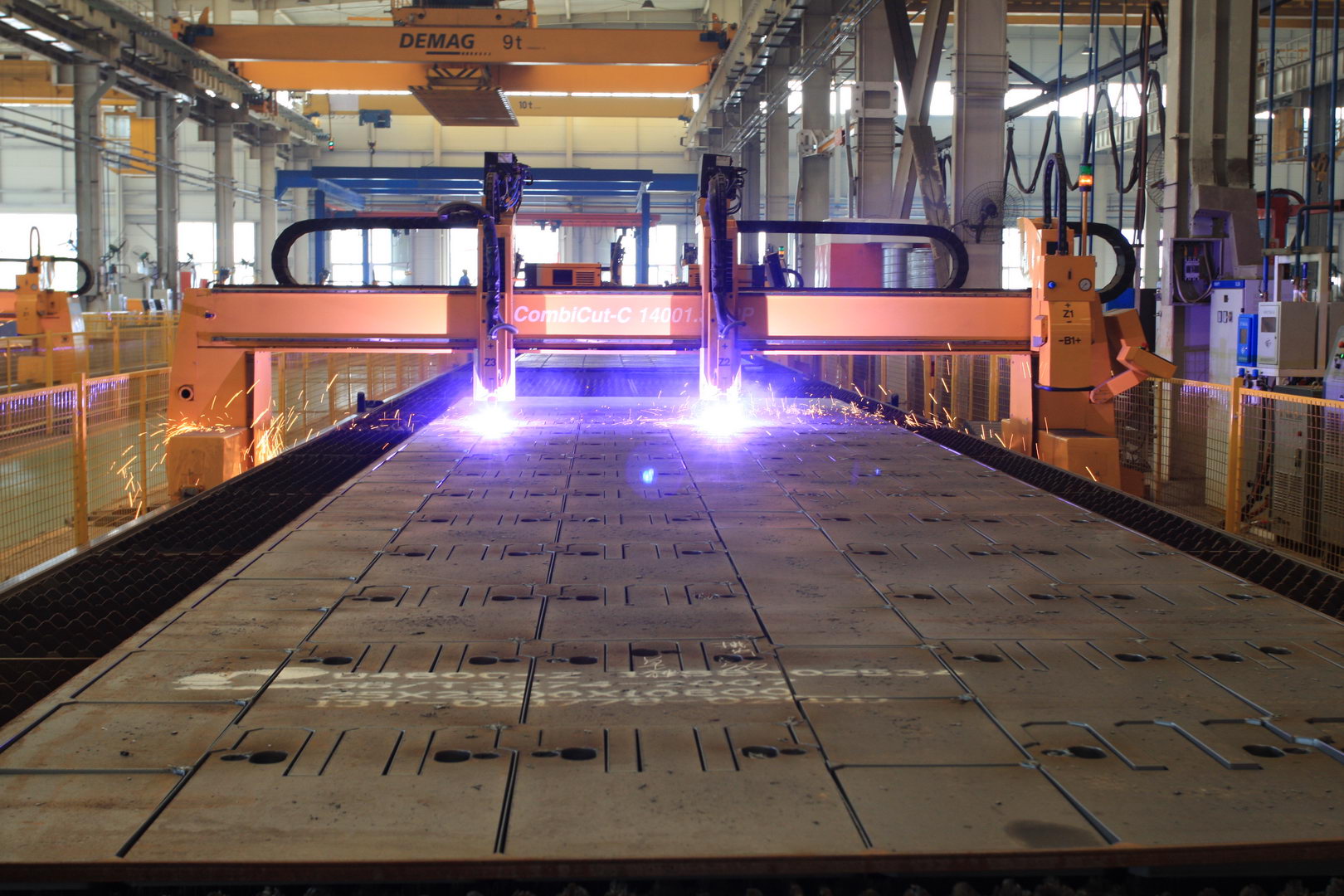

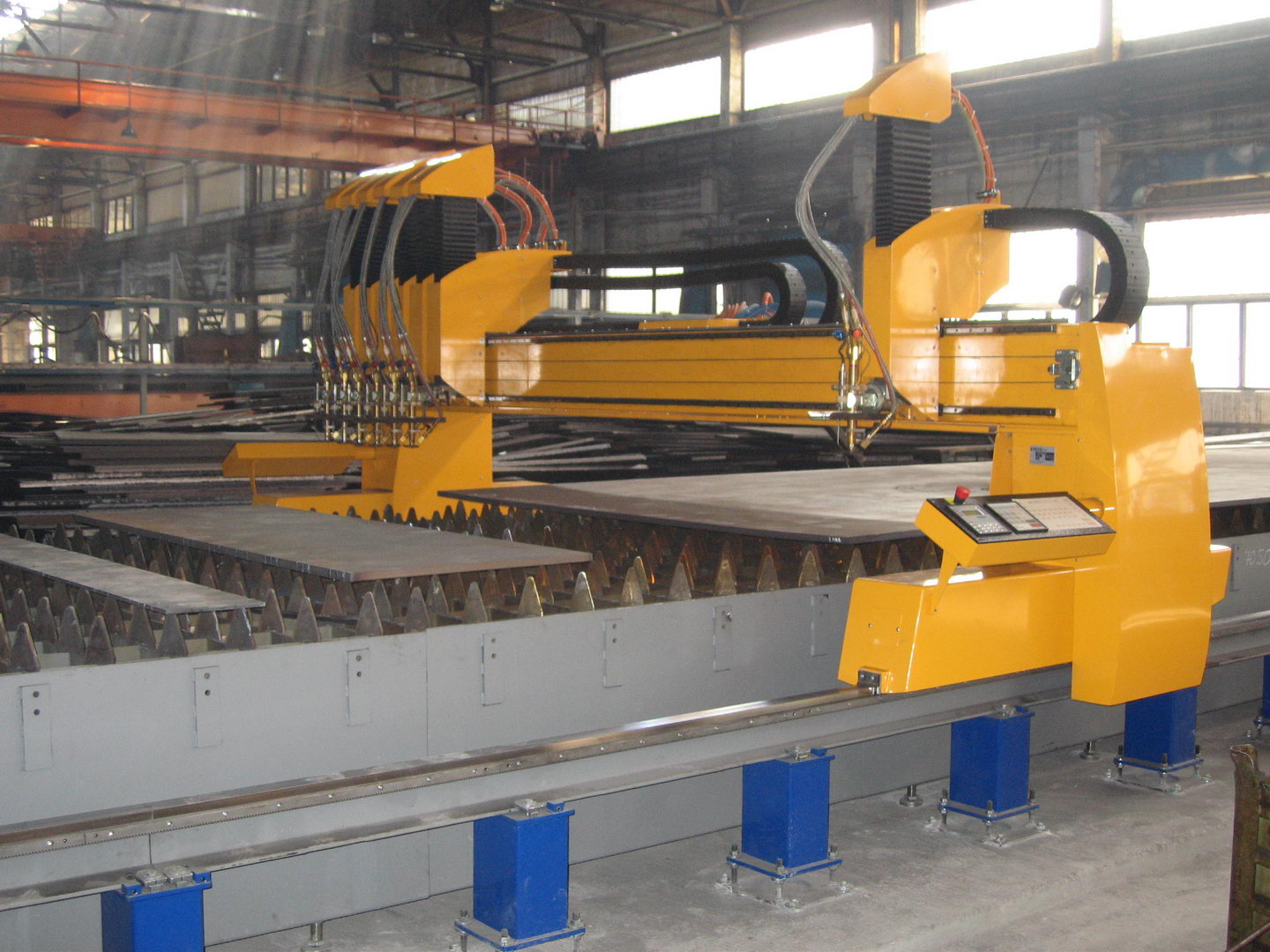

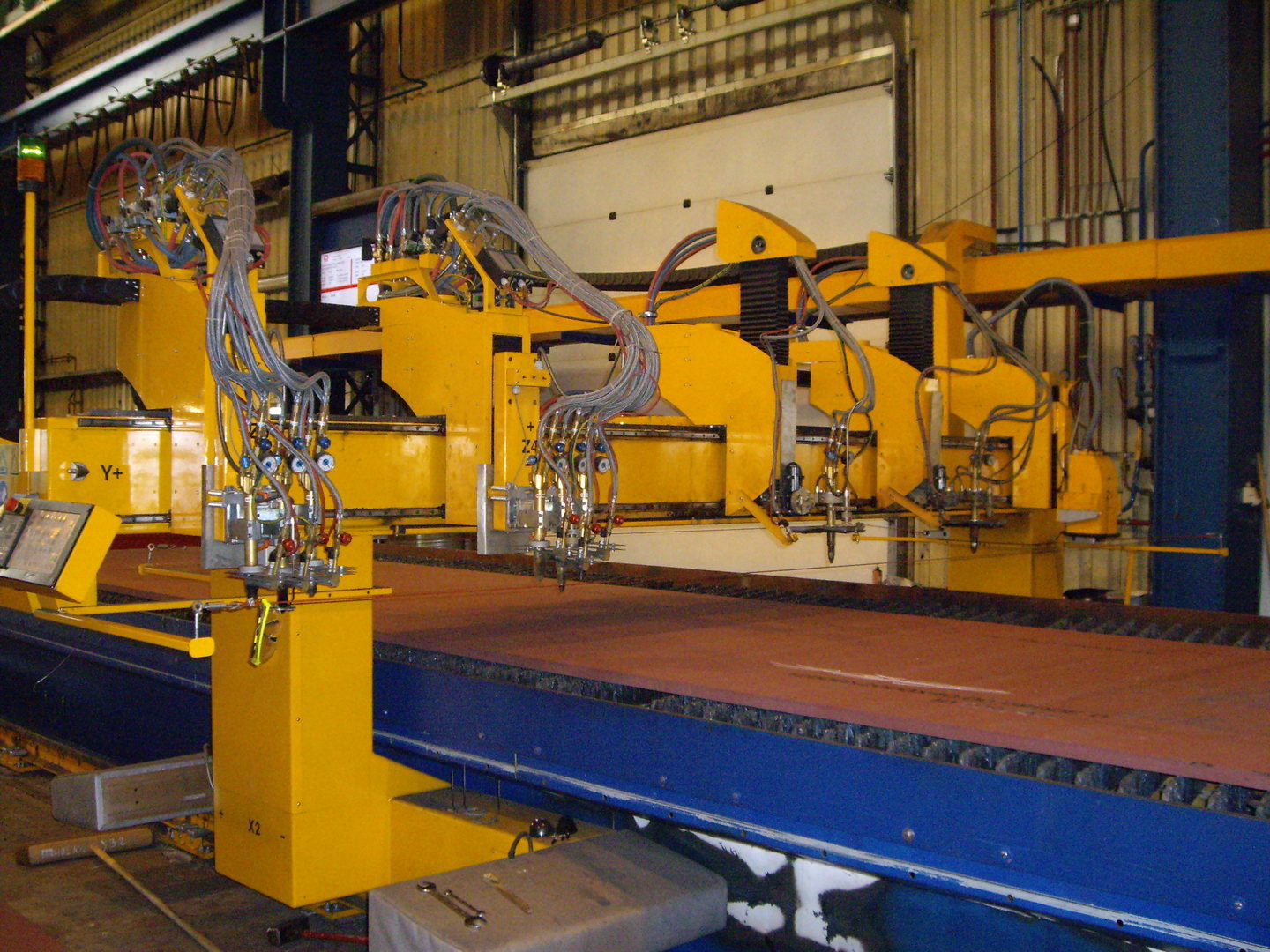

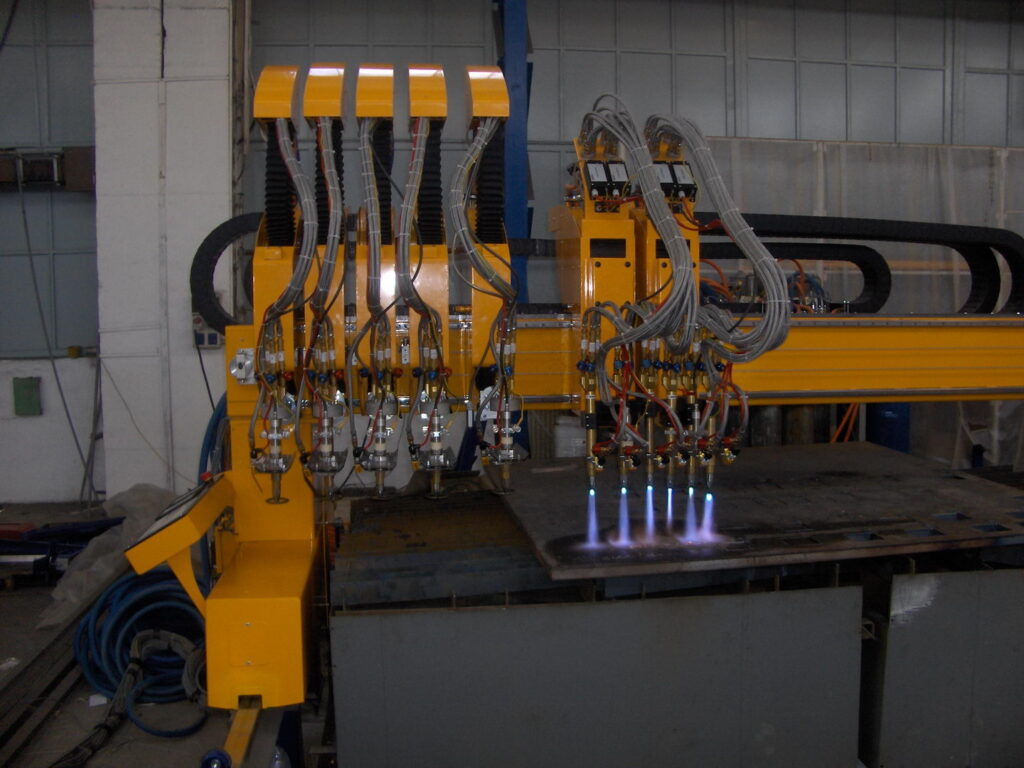

Multi-tool cutting with up to 8 oxyfuel torches
- Increase your productivity with parallel cutting operations
- Possibility of parallel bevel cutting with several rotator bevel heads
- Automatic spacing of slave tool stations (option)
- Individual selection of tool parameters to fit your requirements
- All tools controlled automatically from the iMSNC® control system

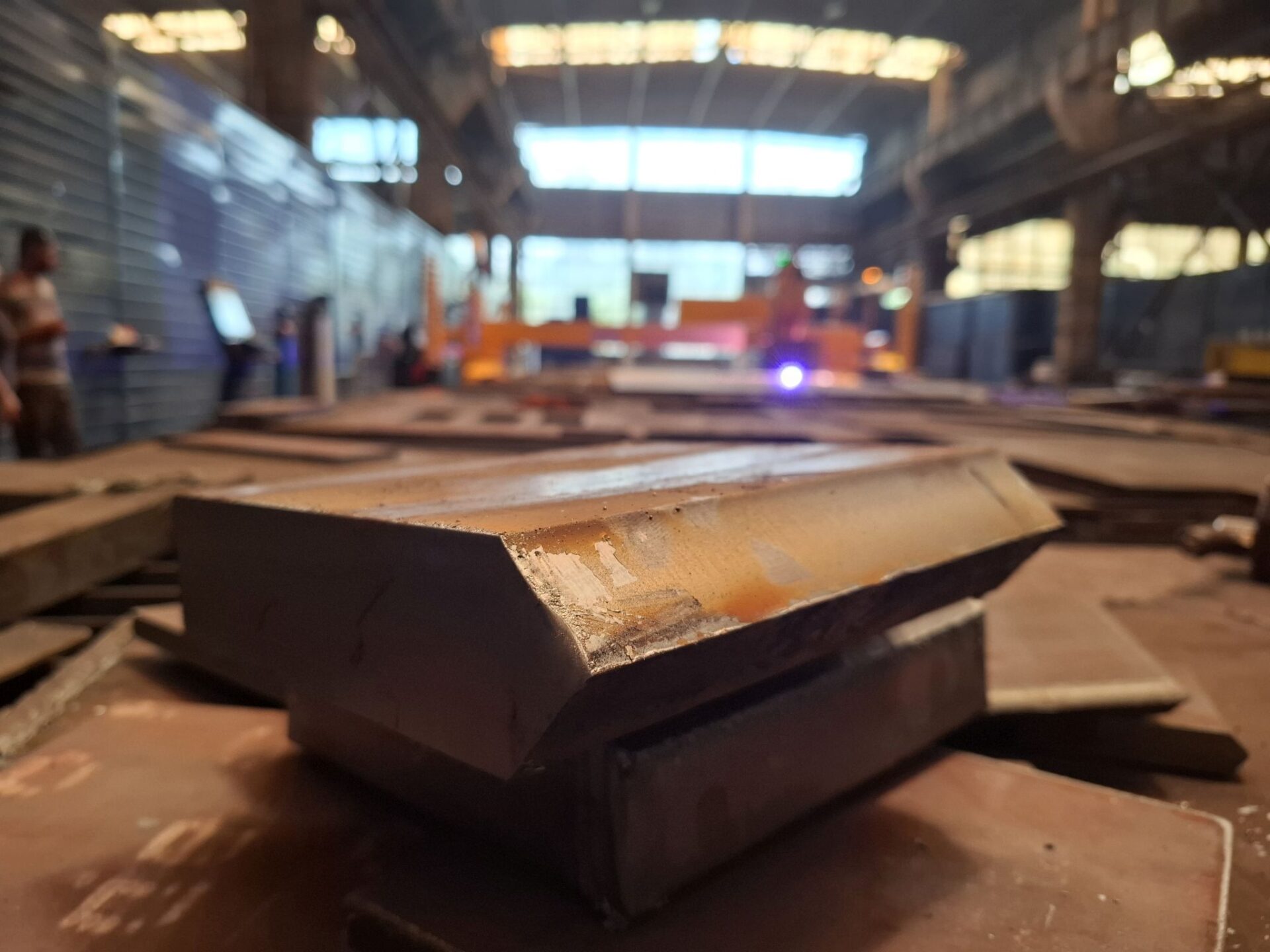

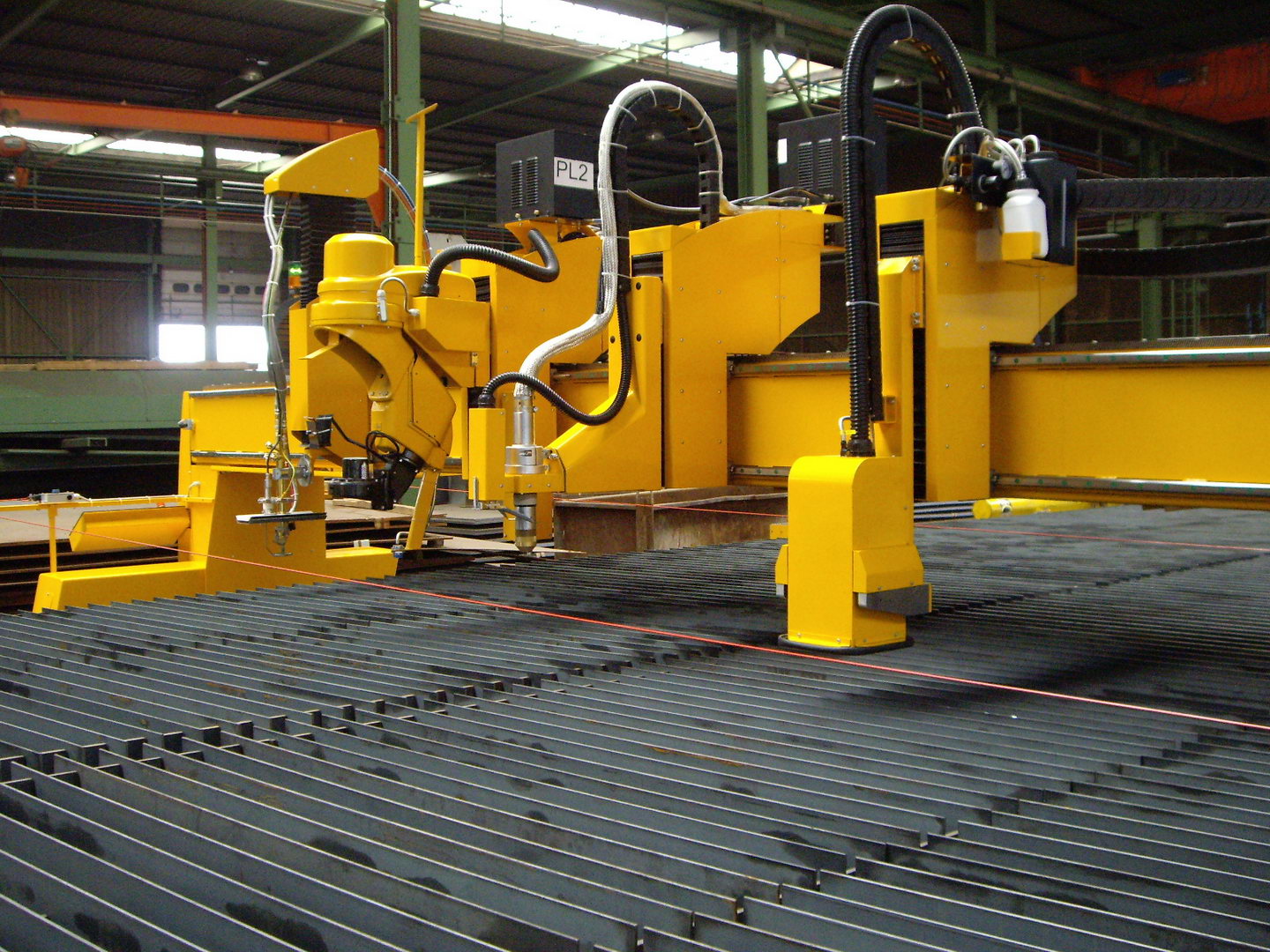

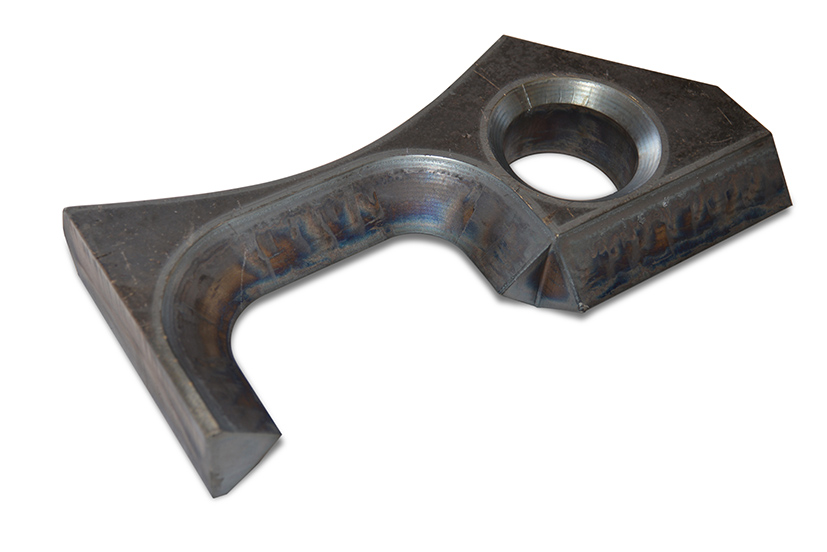

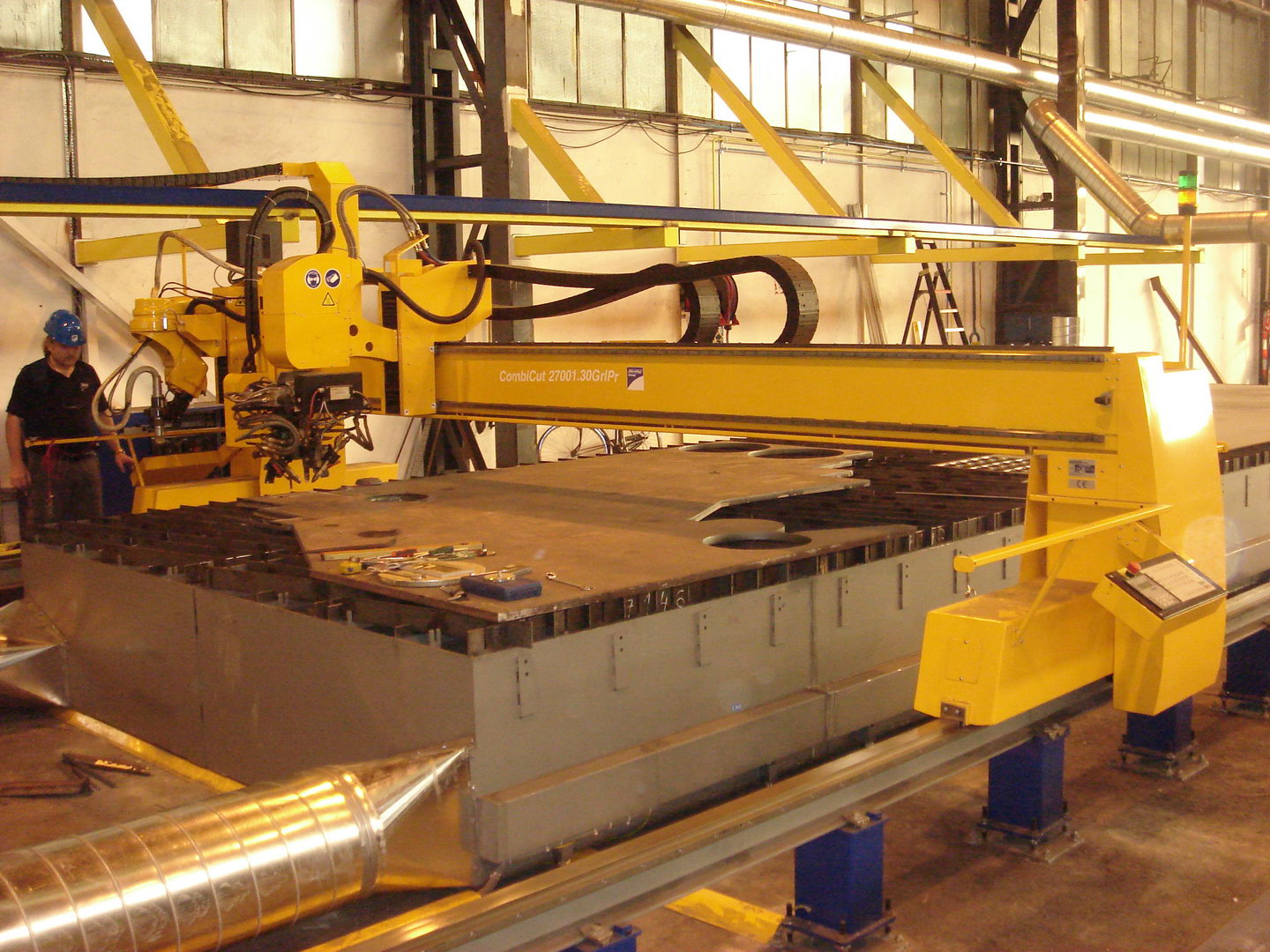

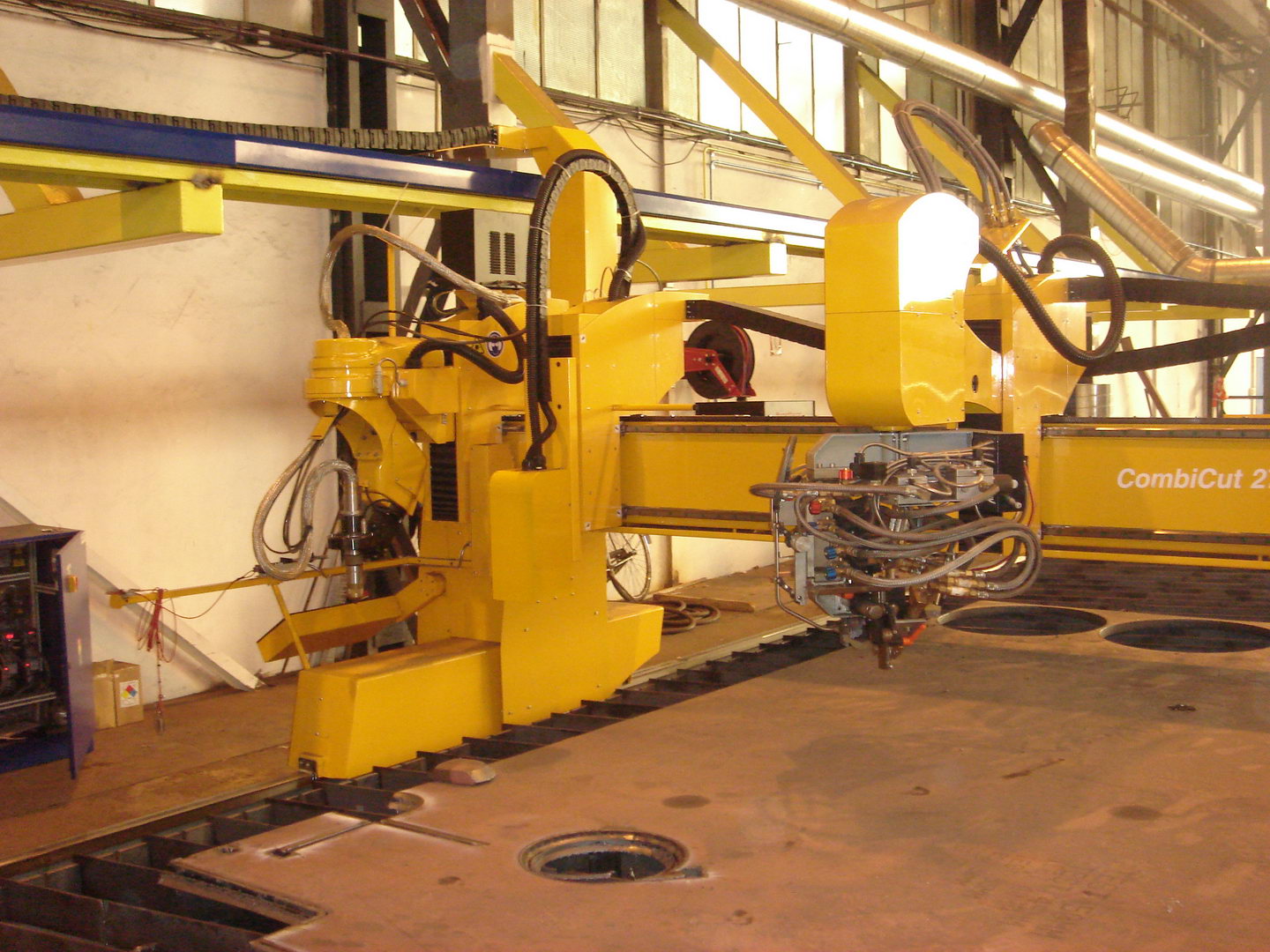

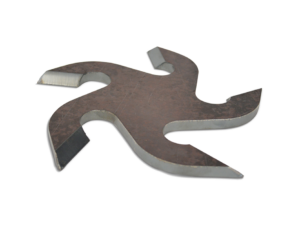

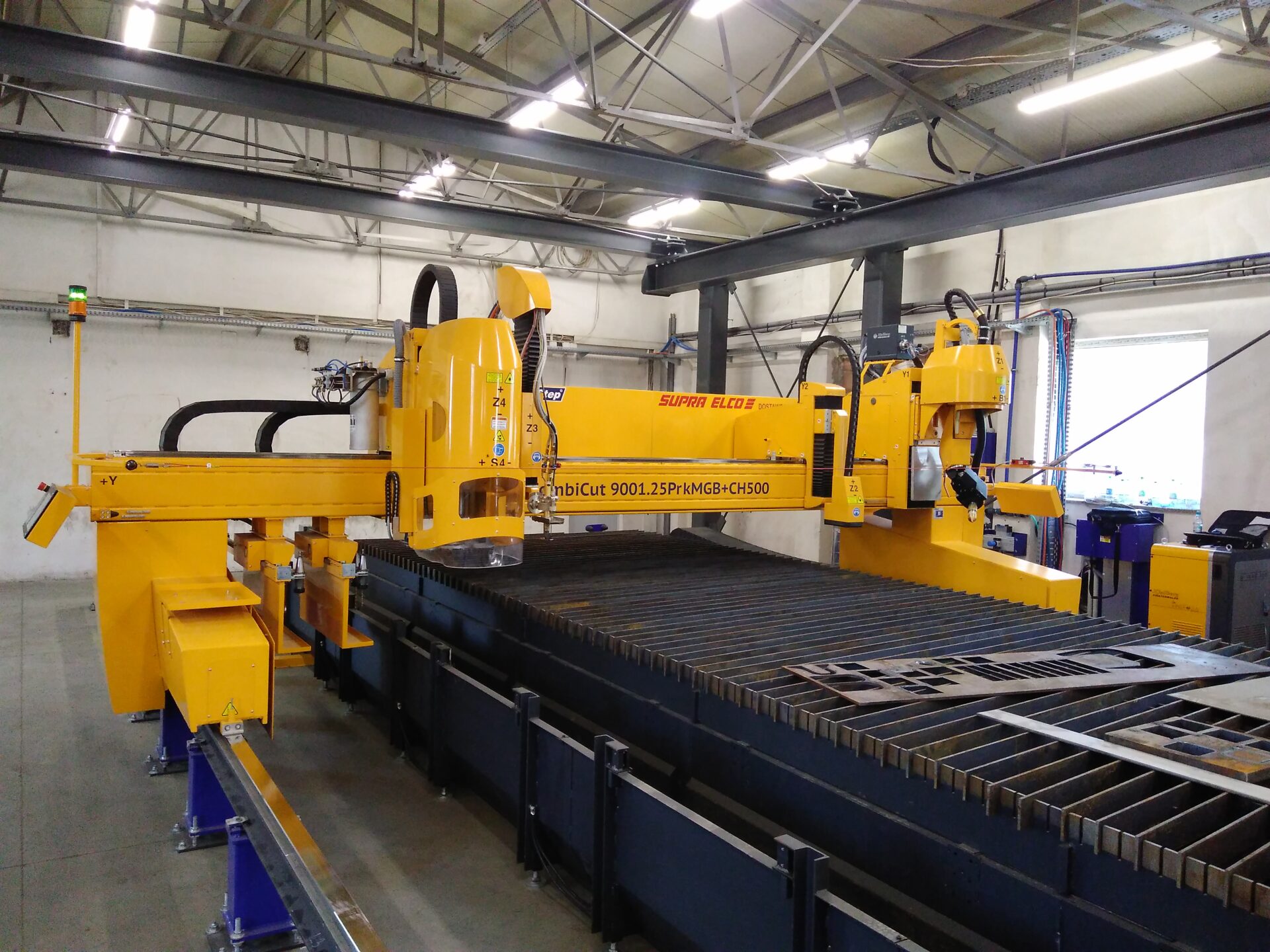

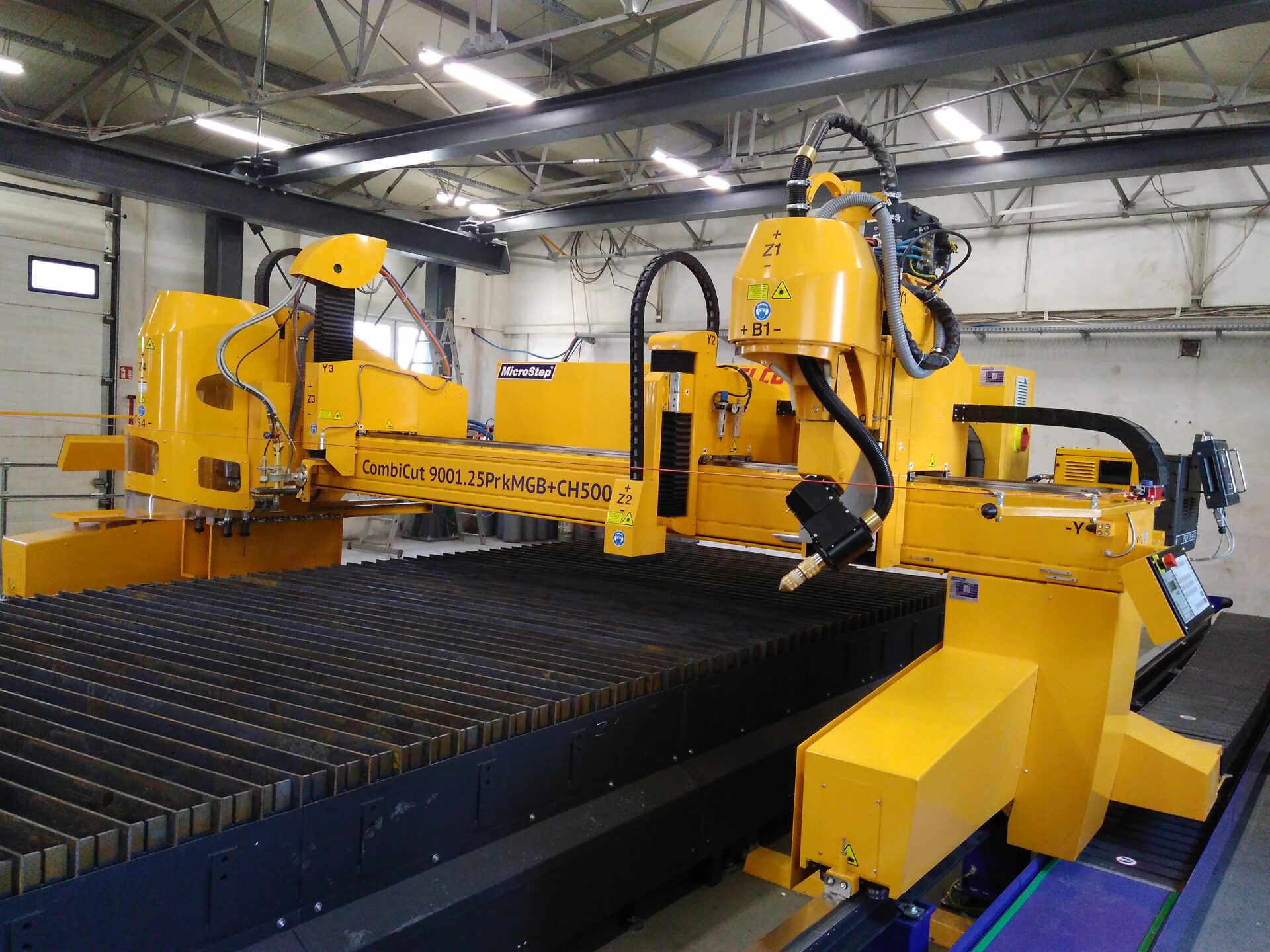

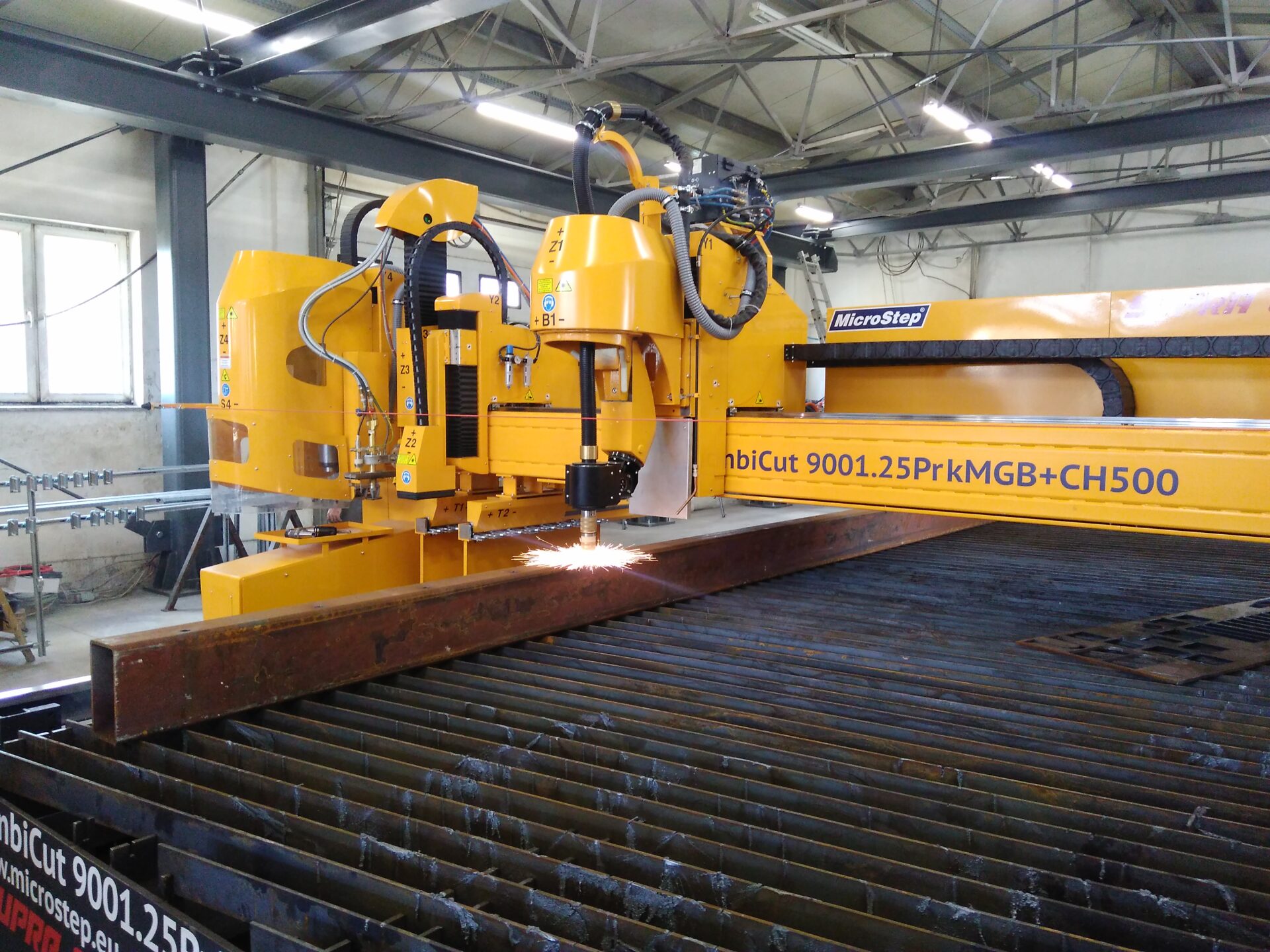

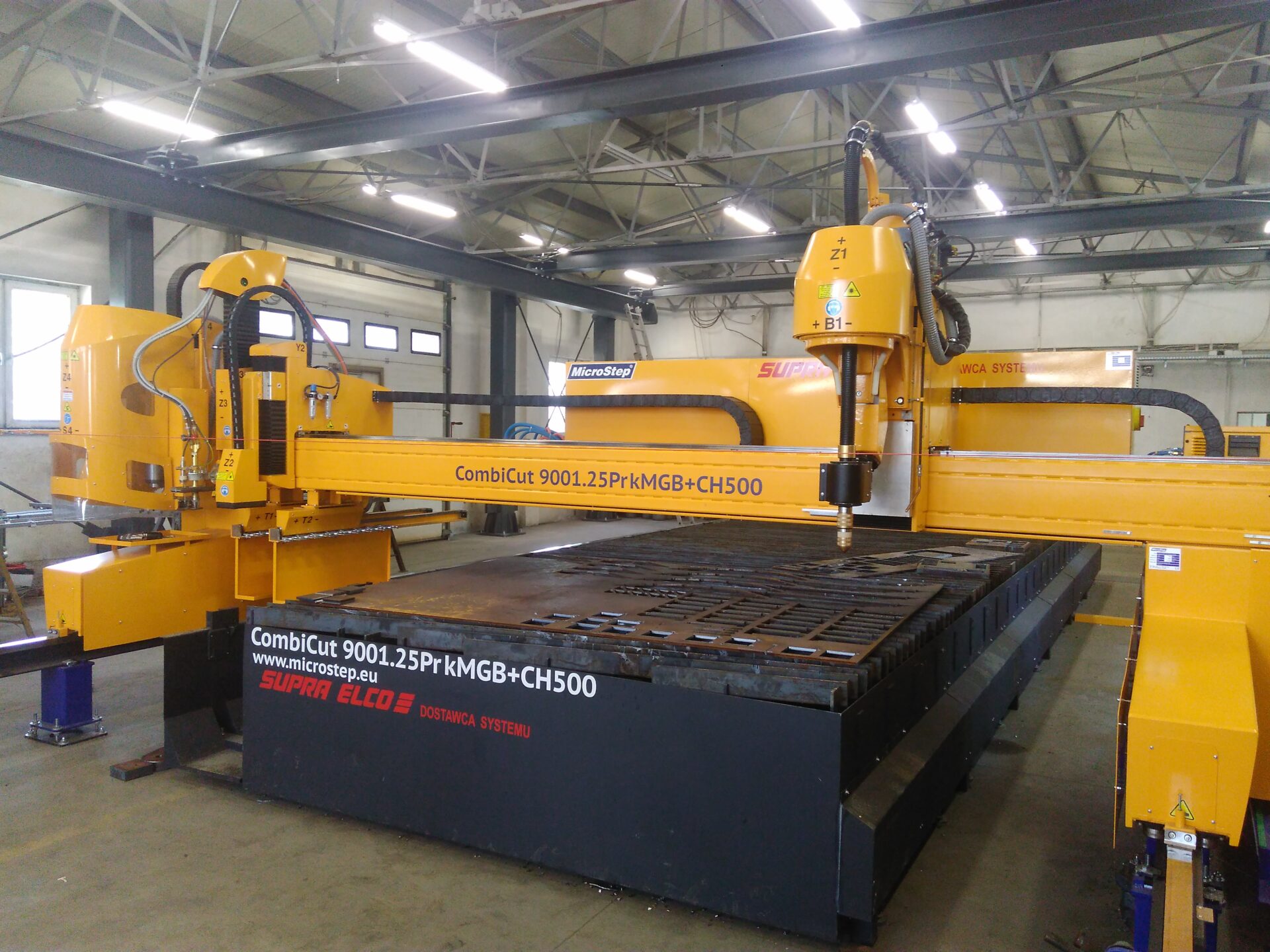

Fast and precise bevel cutting with plasma and oxyfuel
- Fully automatic and highly precise bevel cutting up to 50° (plasma rotator) or up to 60° (oxyfuel rotator)
- Bevel cutting of plates, pipes, profiles and domes
- Additional Beveling Process (ABP) – simple and reliable subsequent weld seam preparation
- Intuitive and easy programming of bevels with MicroStep’s CAM solutions
- Auto-calibration of rotator via ACTG® feature for consistent quality and precision

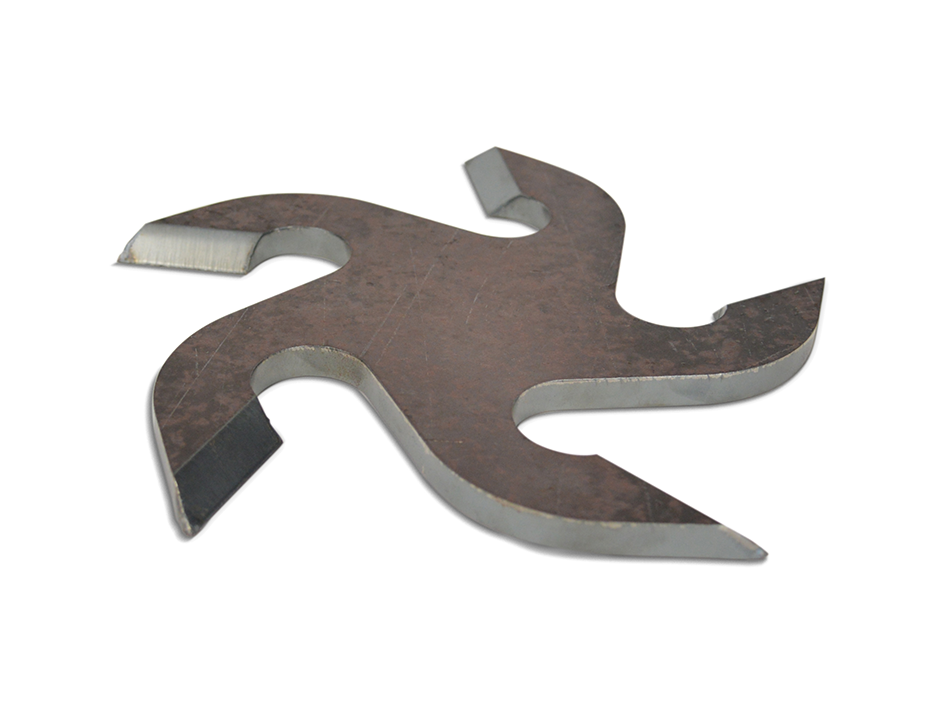

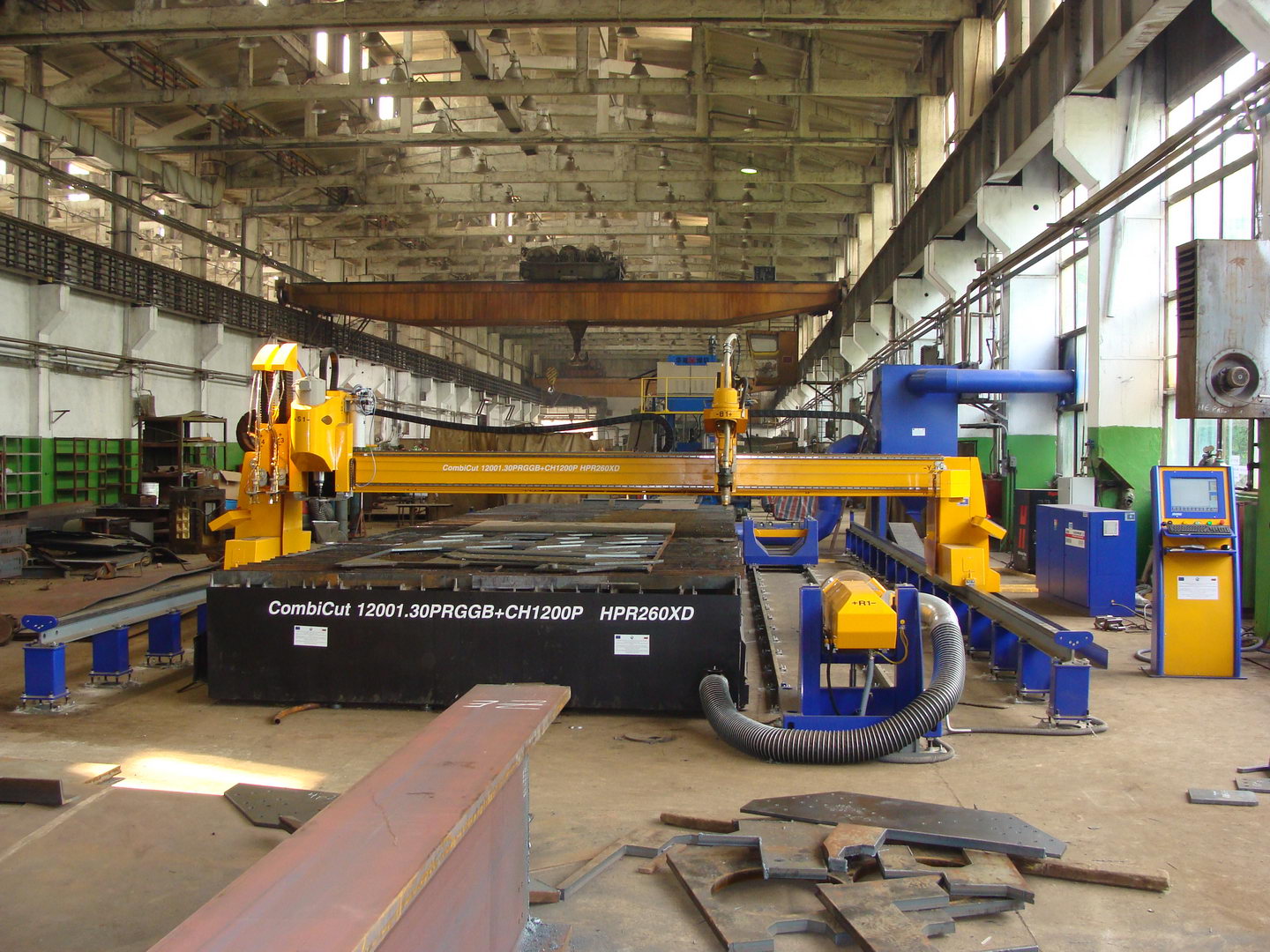

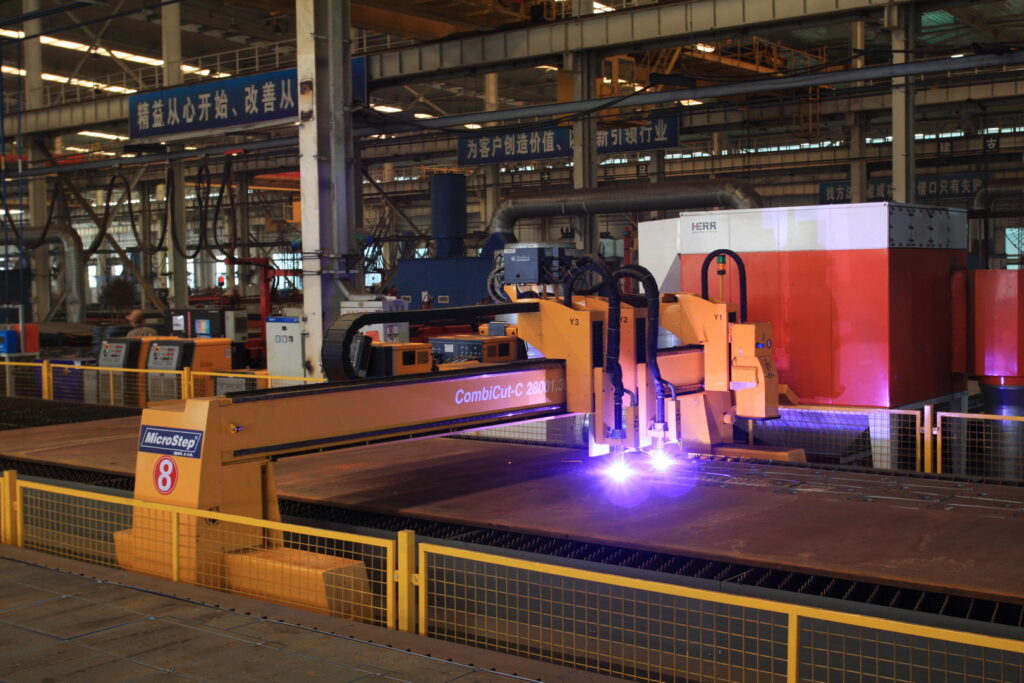

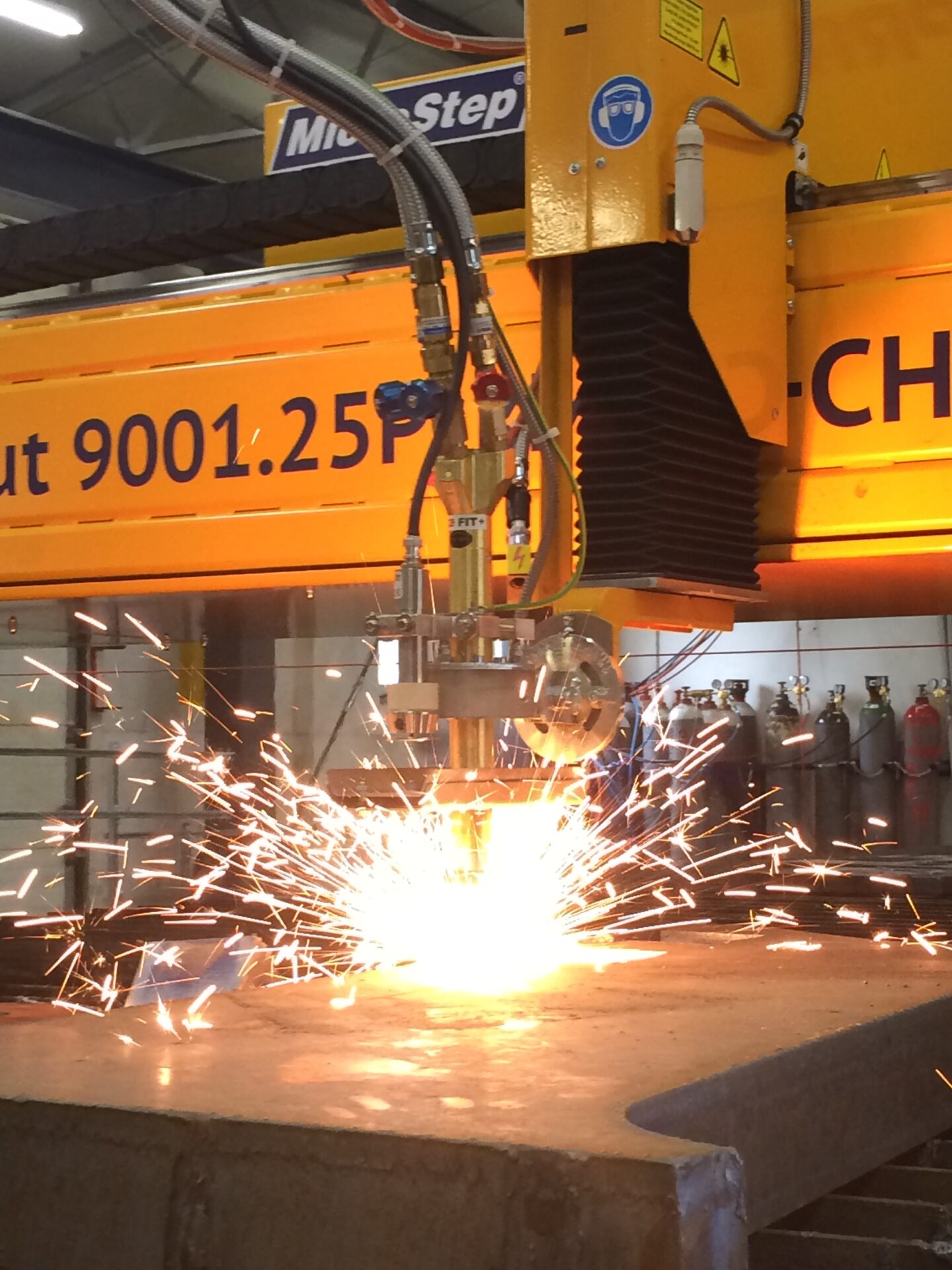

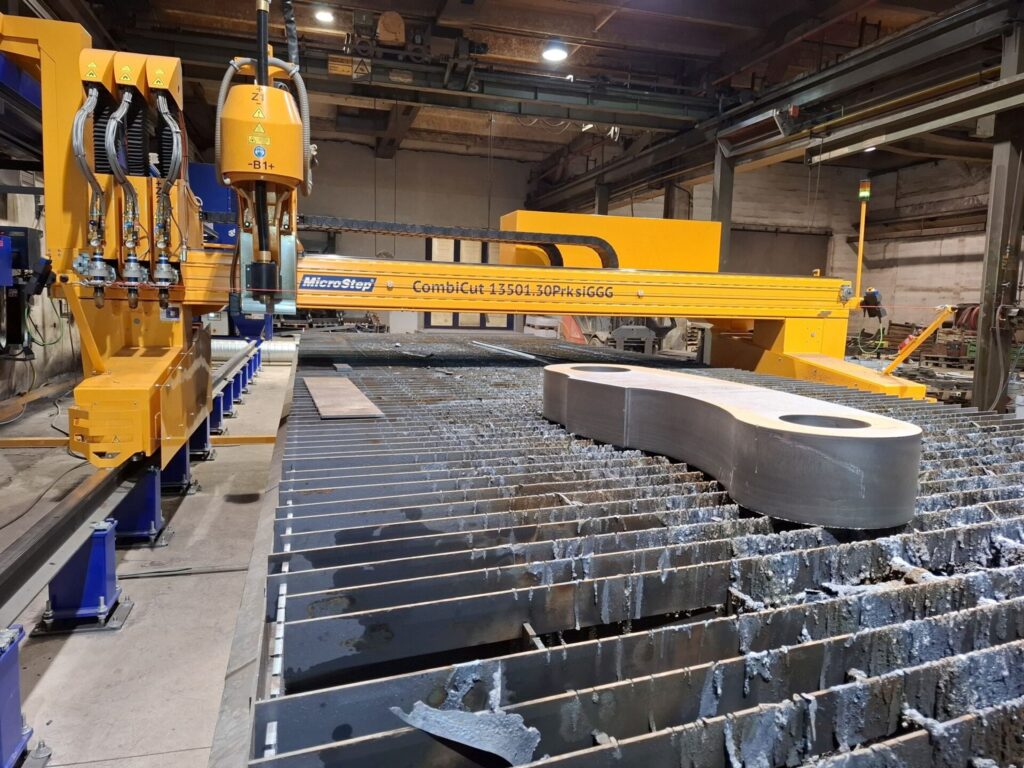

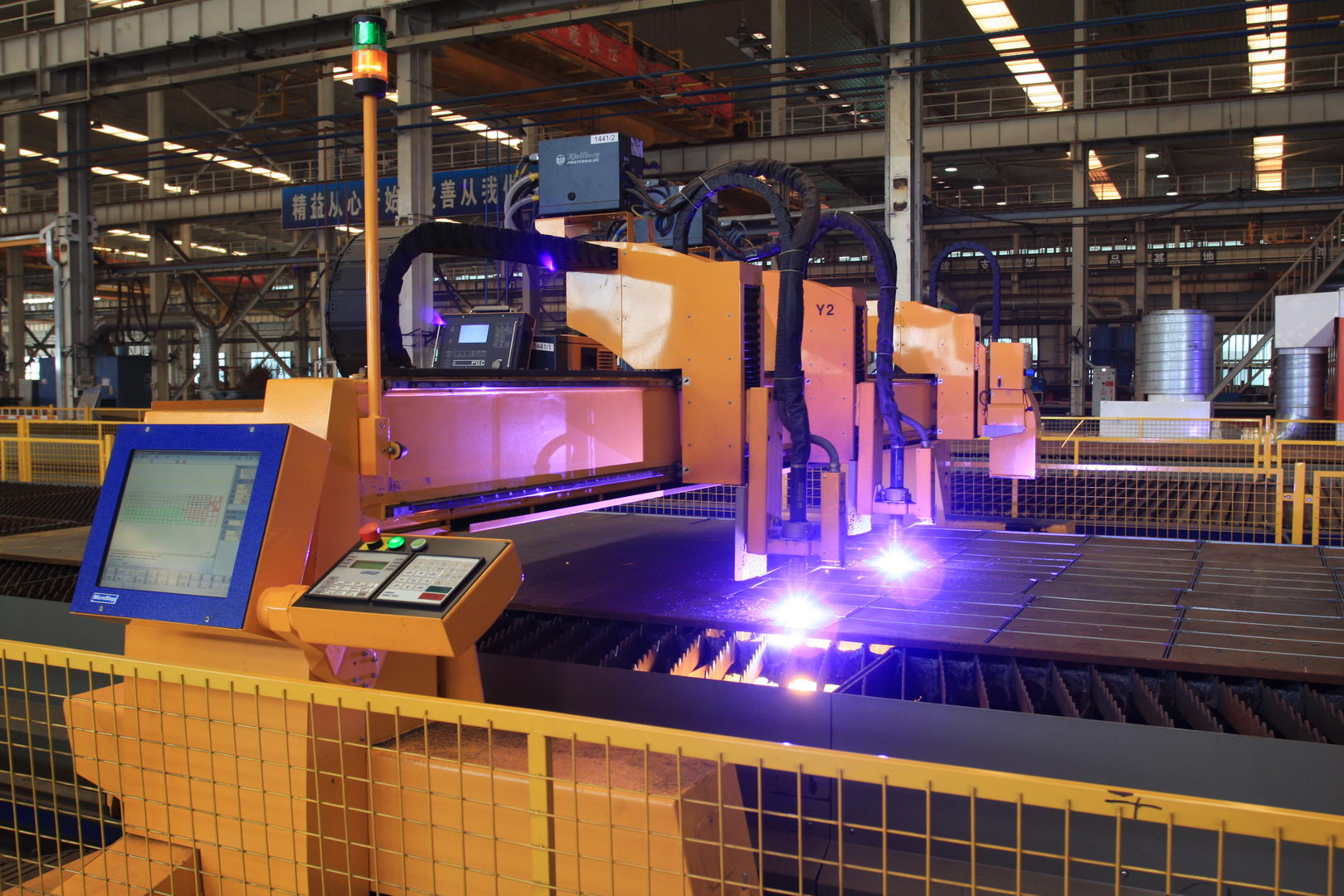

Cutting with plasma up to 800 A and oxyfuel up to 300 mm
CombiCut machines are designed to withstand high workloads in multiple-shift operations including multi-torch parallel oxyfuel cutting of material thicknesses up to 300 mm. Intelligent temperature management keeps the system from exceeding its limits even in harsh environmental conditions and under intensive cutting load.

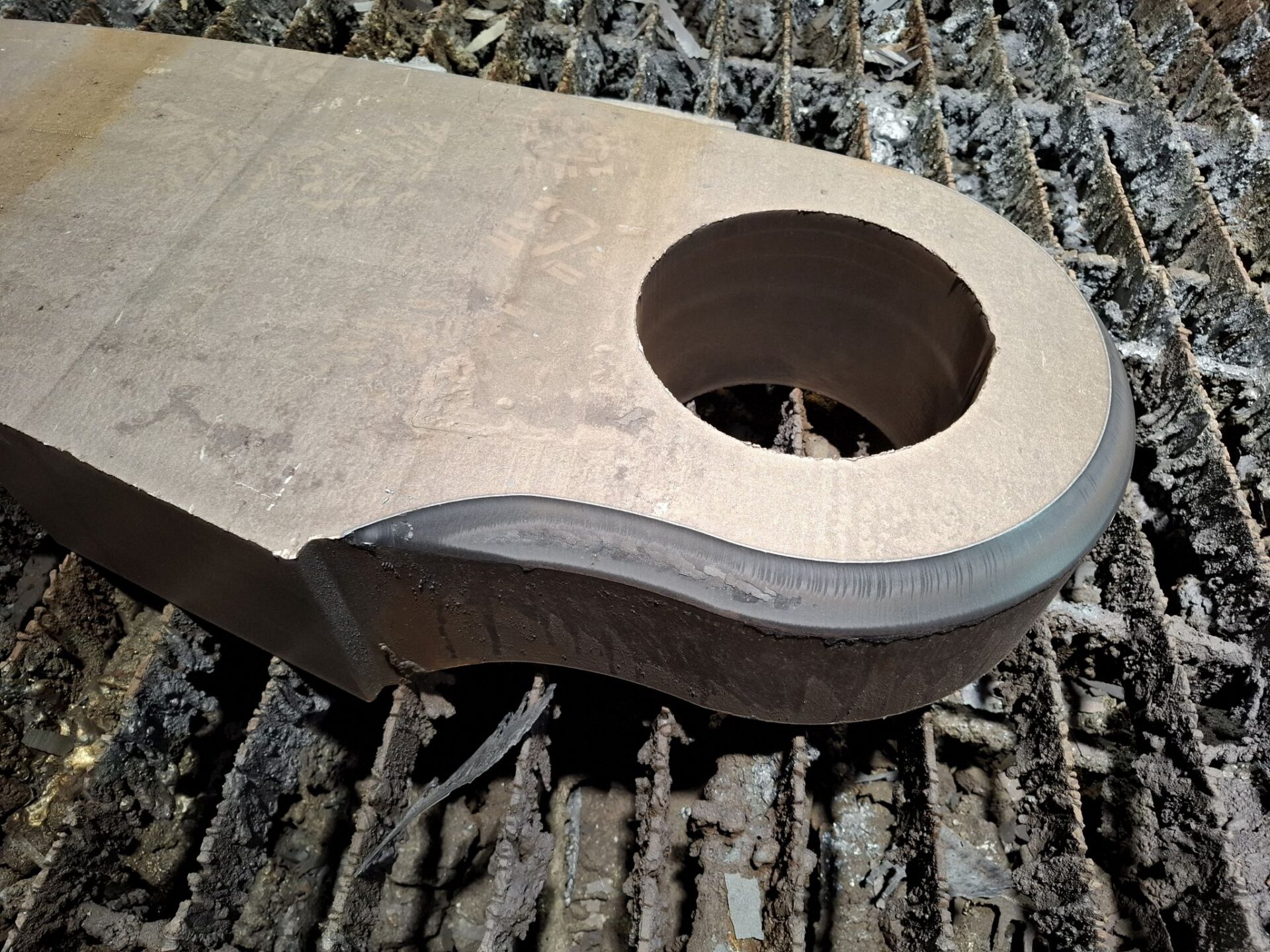

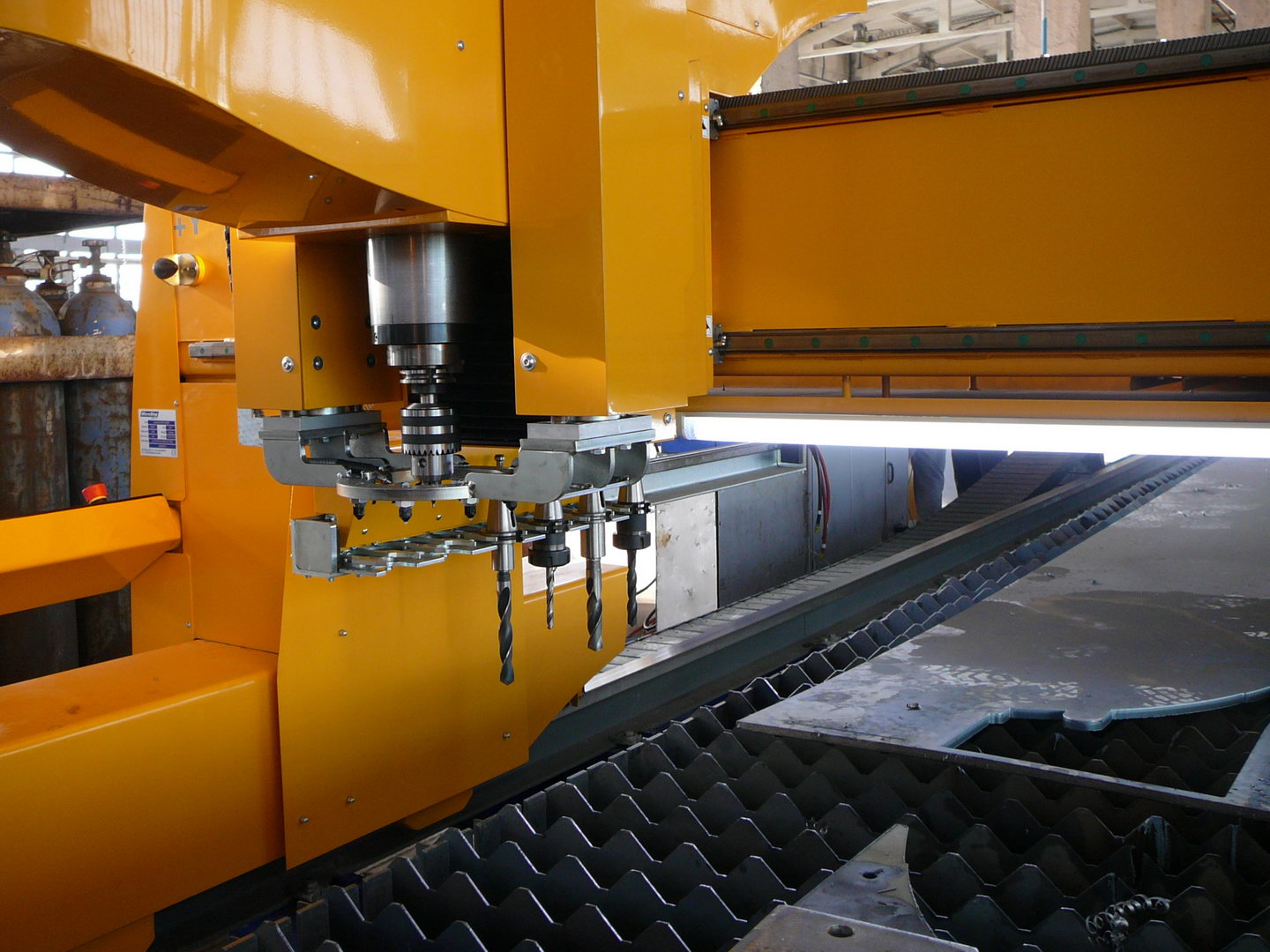

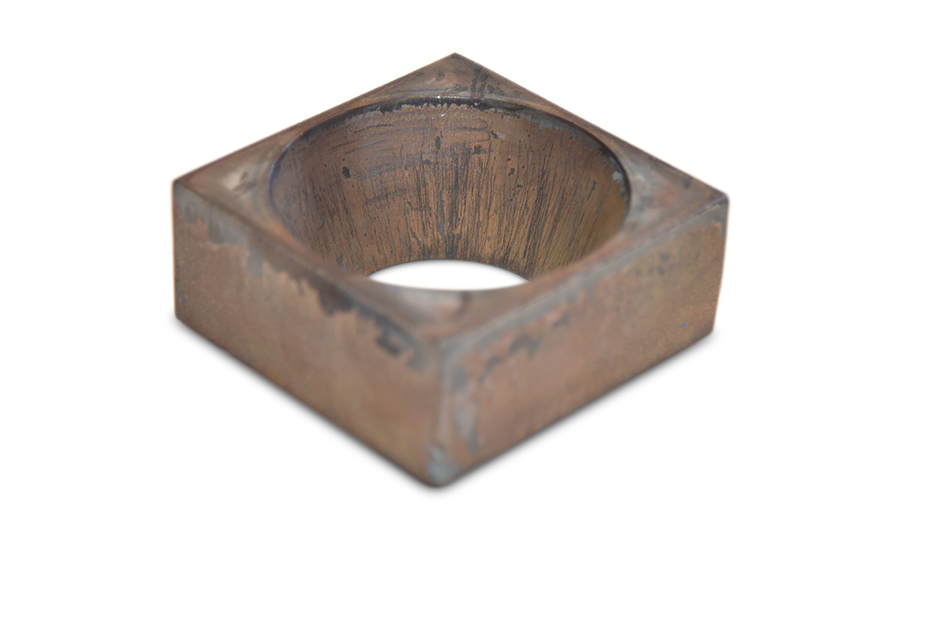

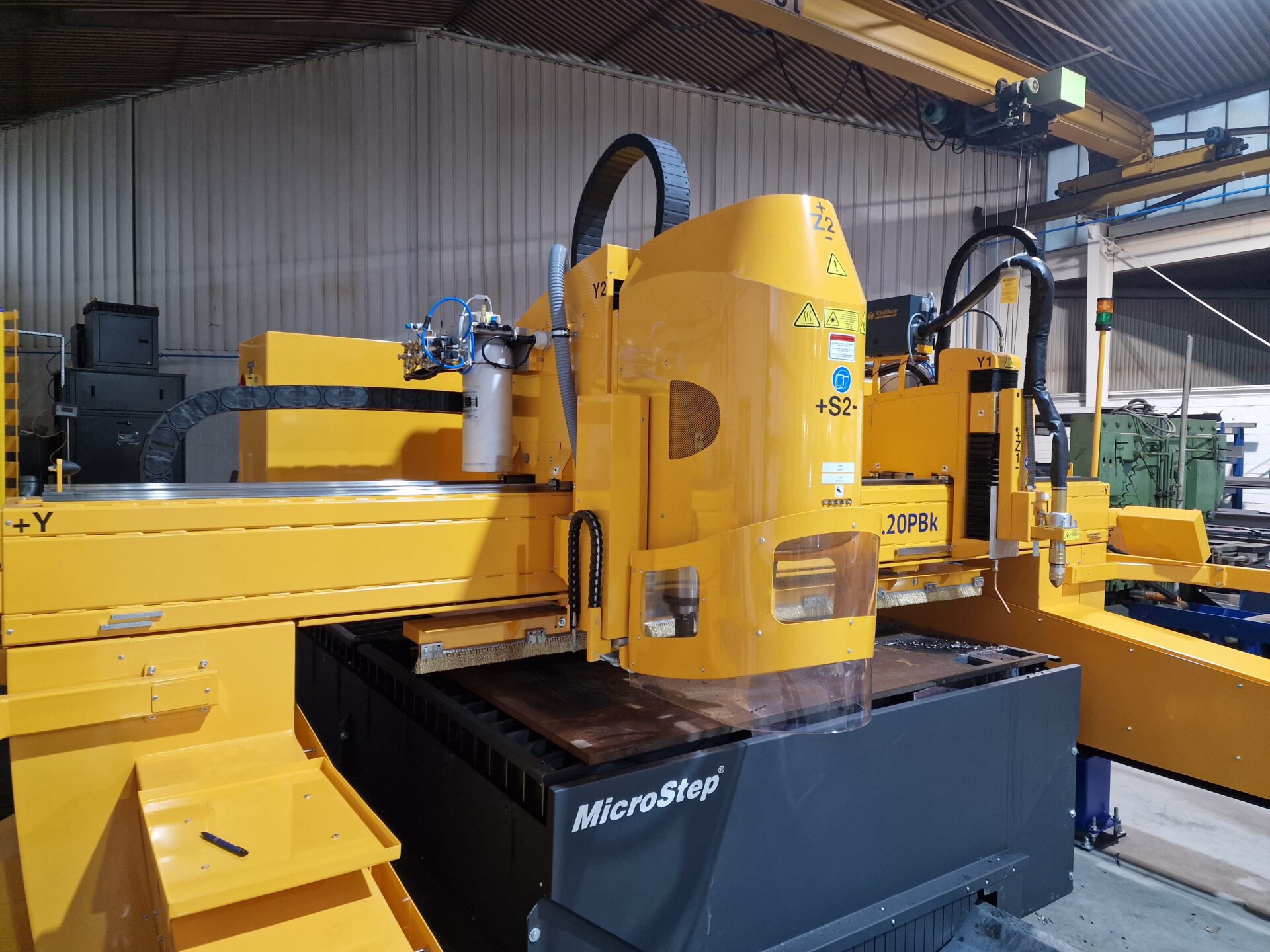

Fully automatic drilling up to Ø 40 mm and tapping up to M33
The fully automatic drilling solution provides a substantial added value for your production. Before the parts are cut, precise holes, threads and countersinks can be produced within the same cutting plan, with holes up to Ø 40 mm and threads up to M33. To enable smooth and fast tool change, the machine can be equipped with a tool magazine for 6, 8 or 16 tools.

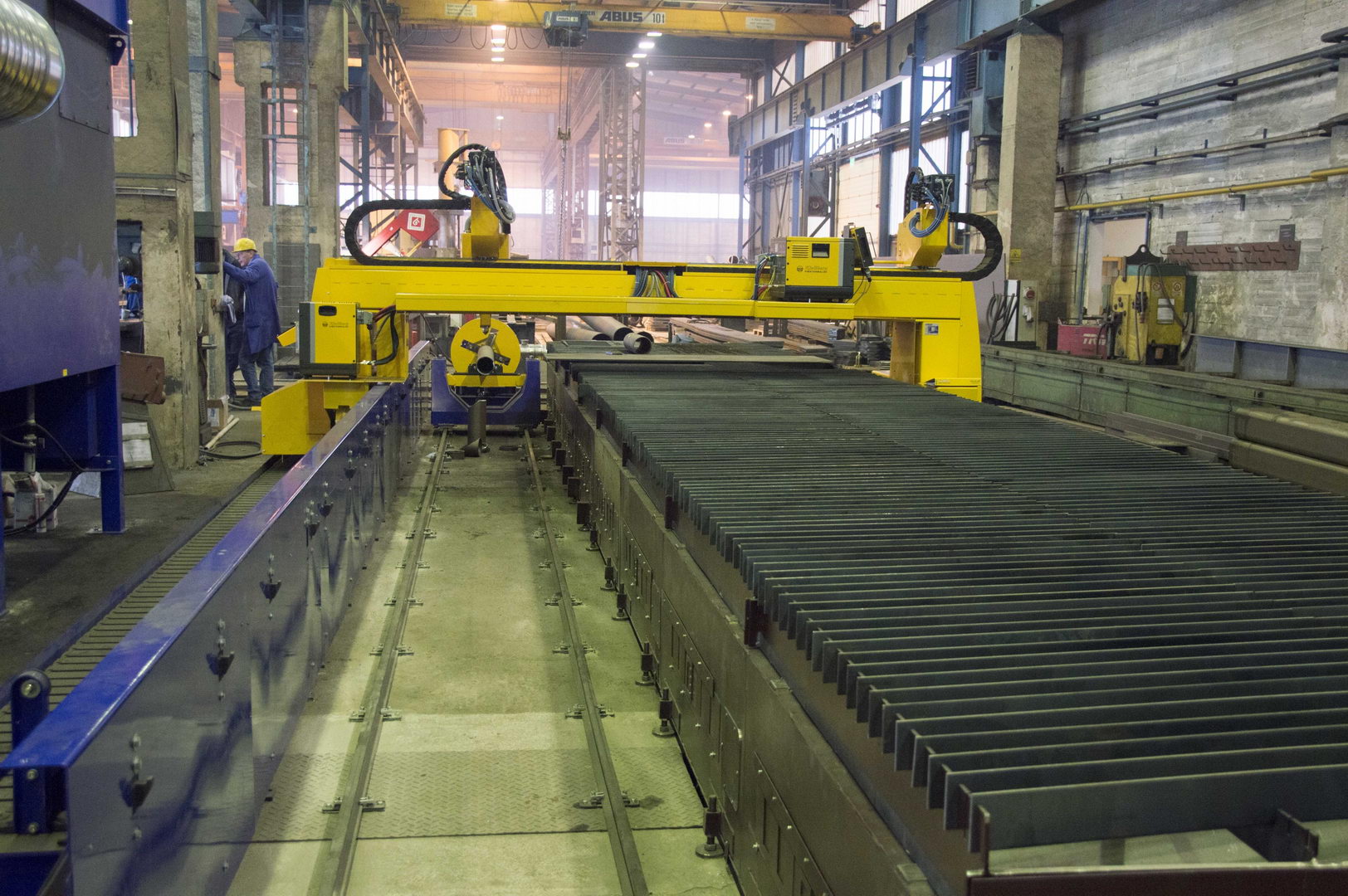

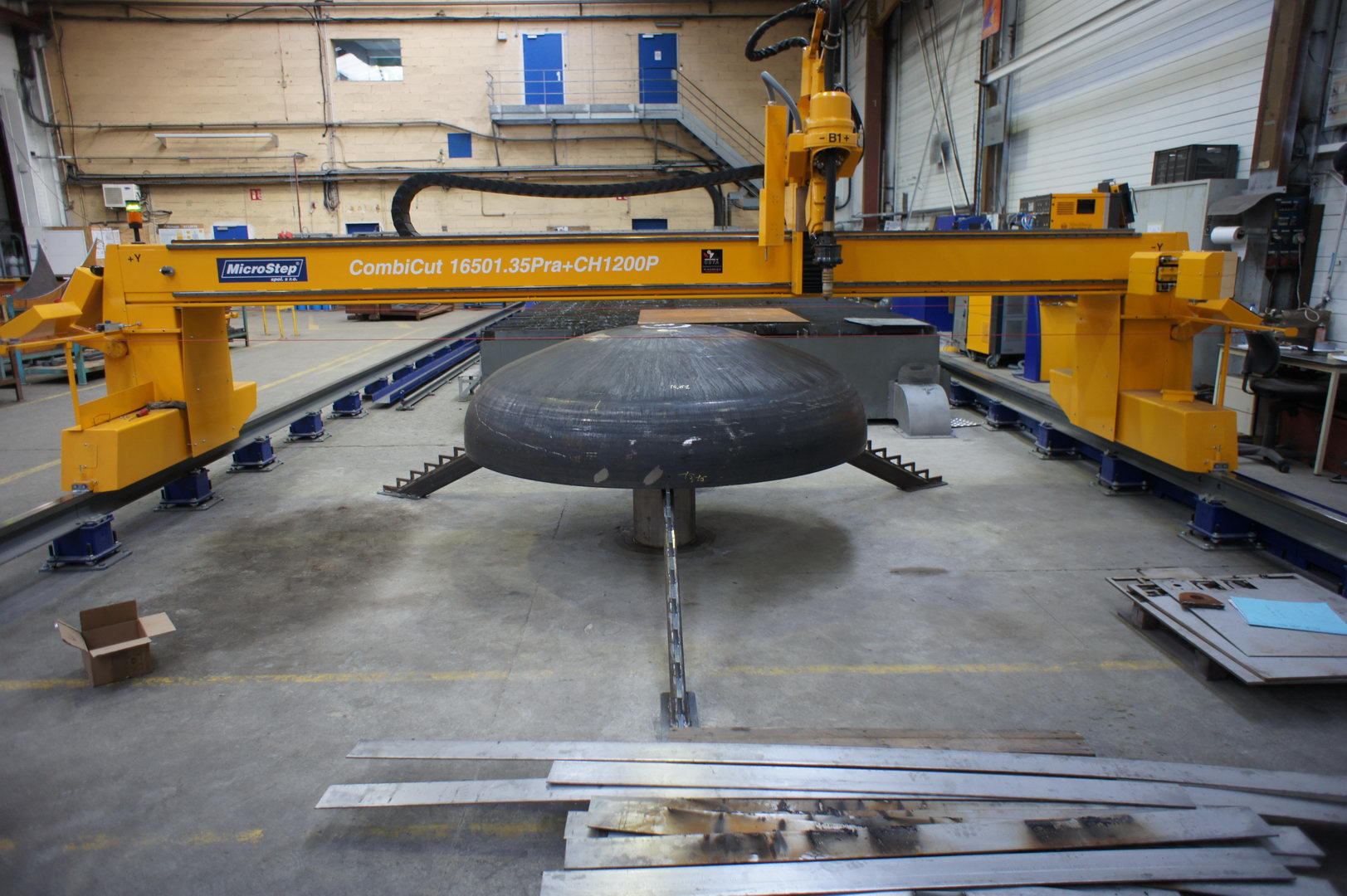

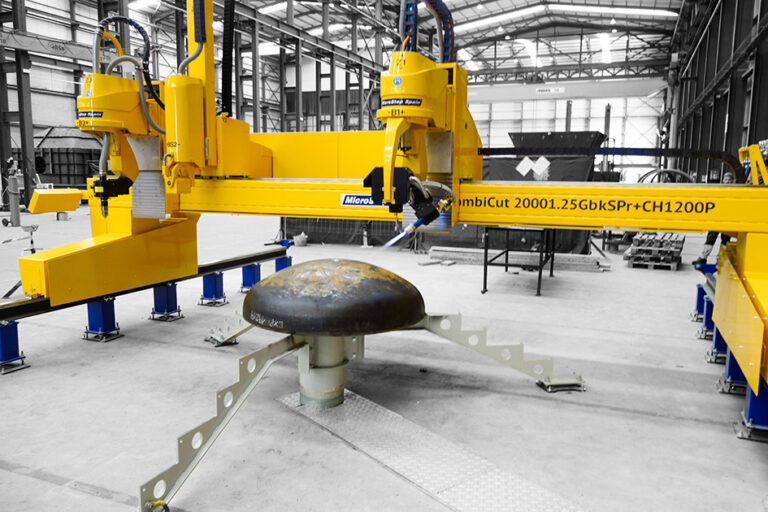

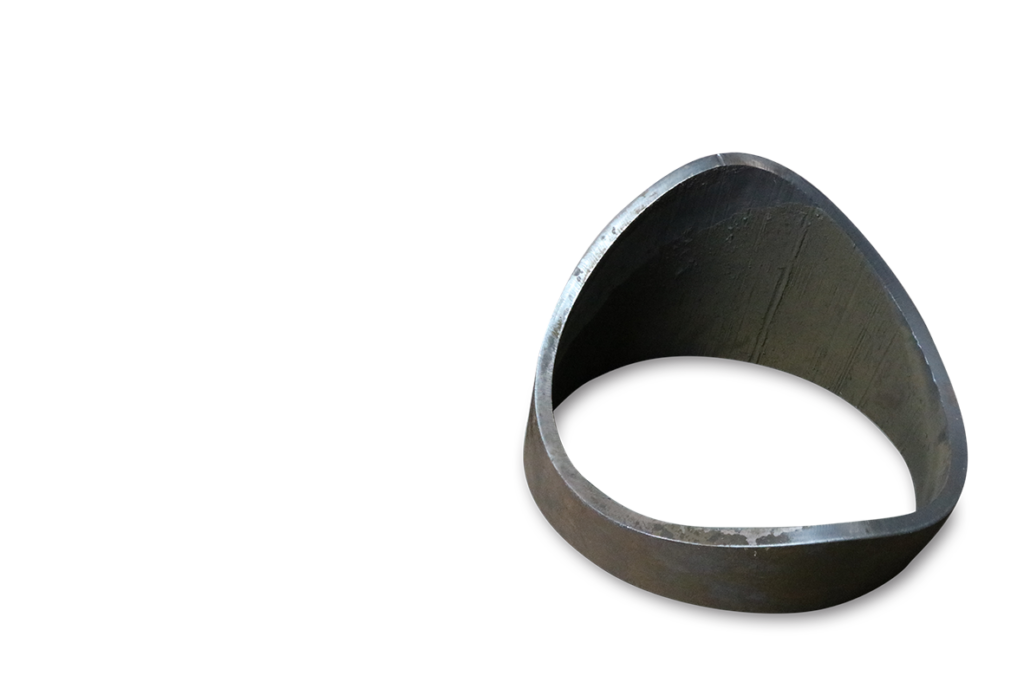

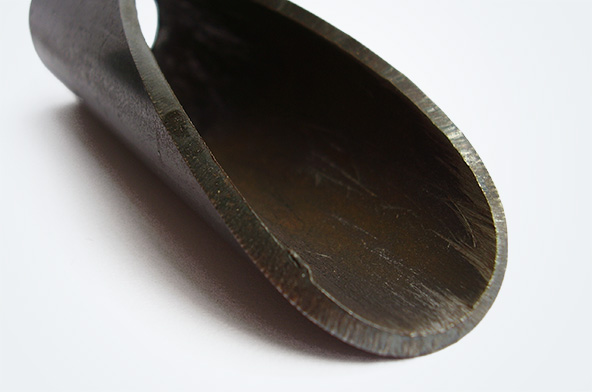

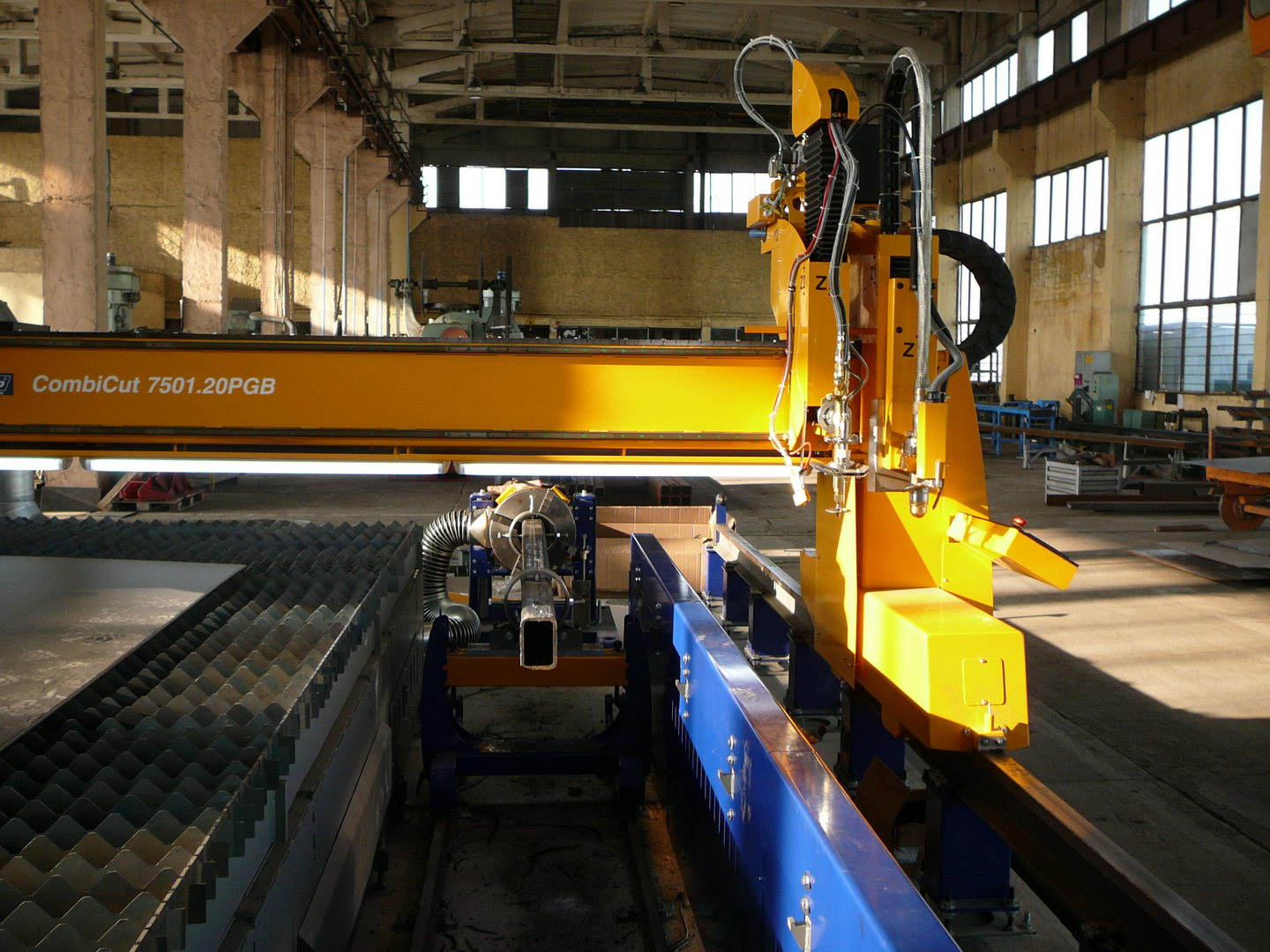

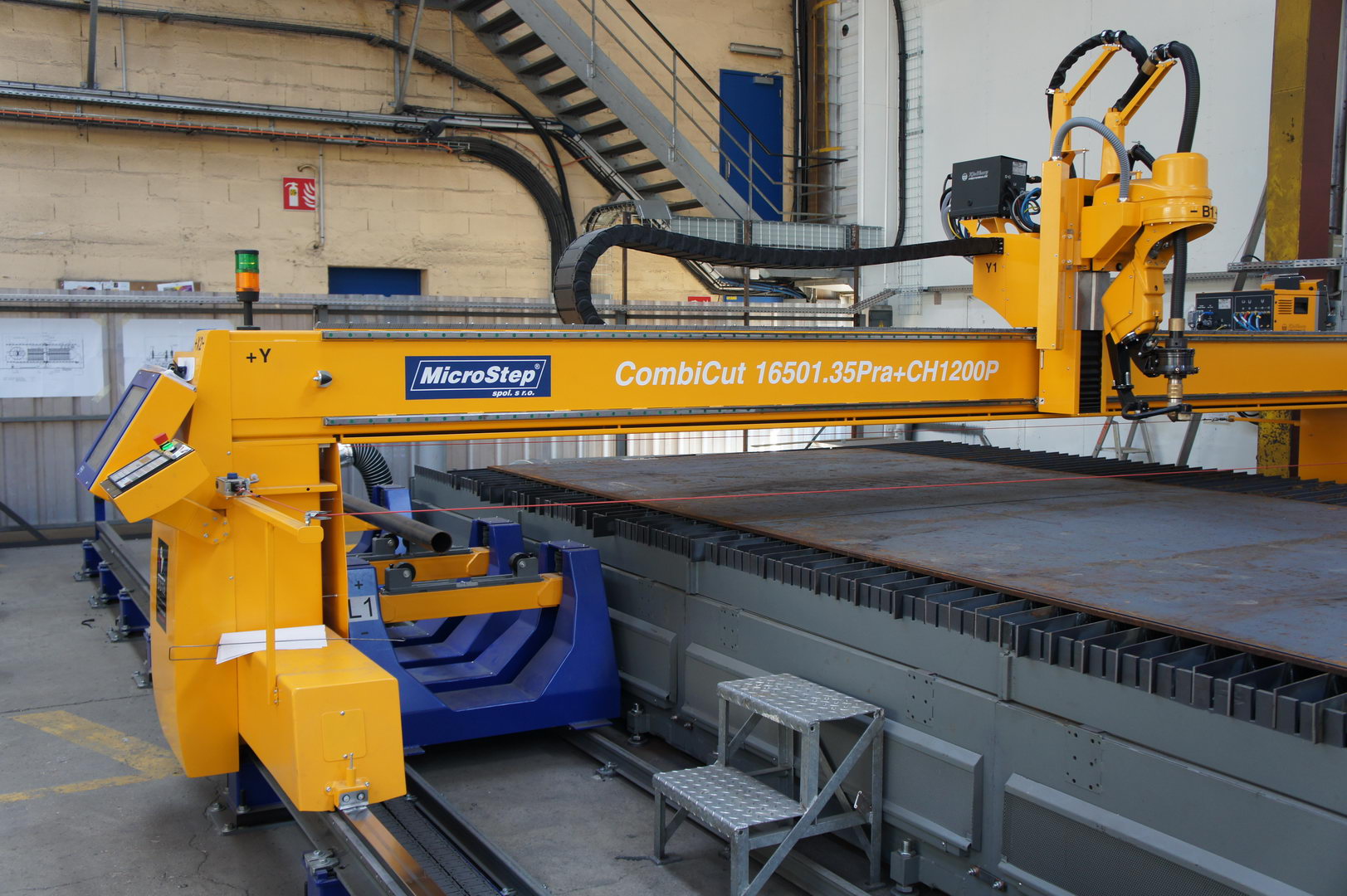

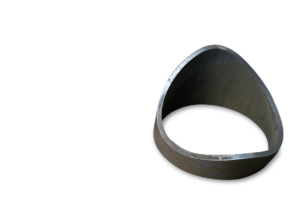

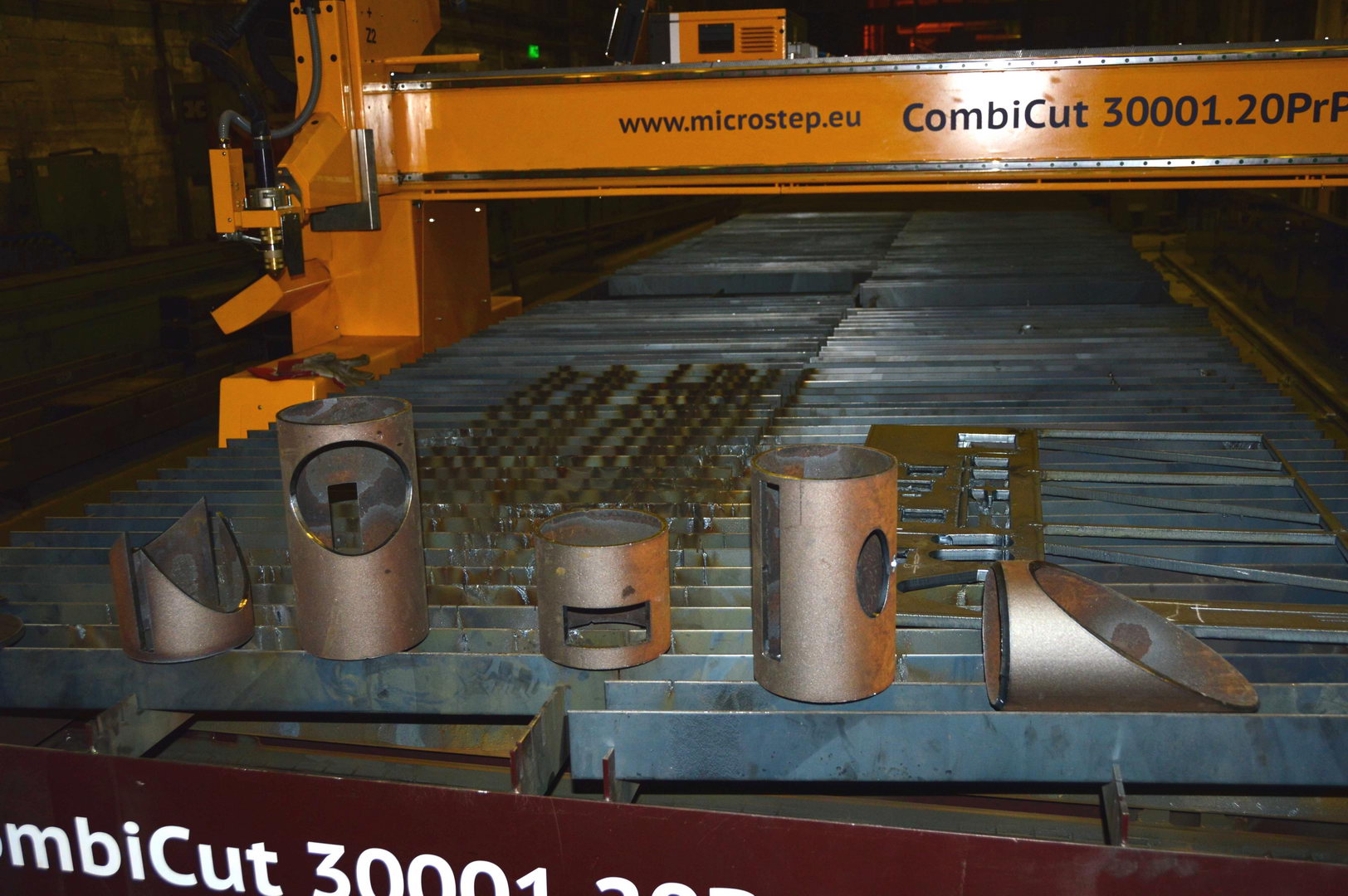

3D pipe & profile processing up to Ø 1,000 mm
- Enhance your production range by adding pipe and profile cutting option
- Convenient cutting program creation with MicroStep’s 2D and 3D CAM software
- High precision and dimensional accuracy reduce post-processing costs
- If required, the pipe cutting channel can be covered with additional grates and used as extension of the cutting table including sideways fume extraction

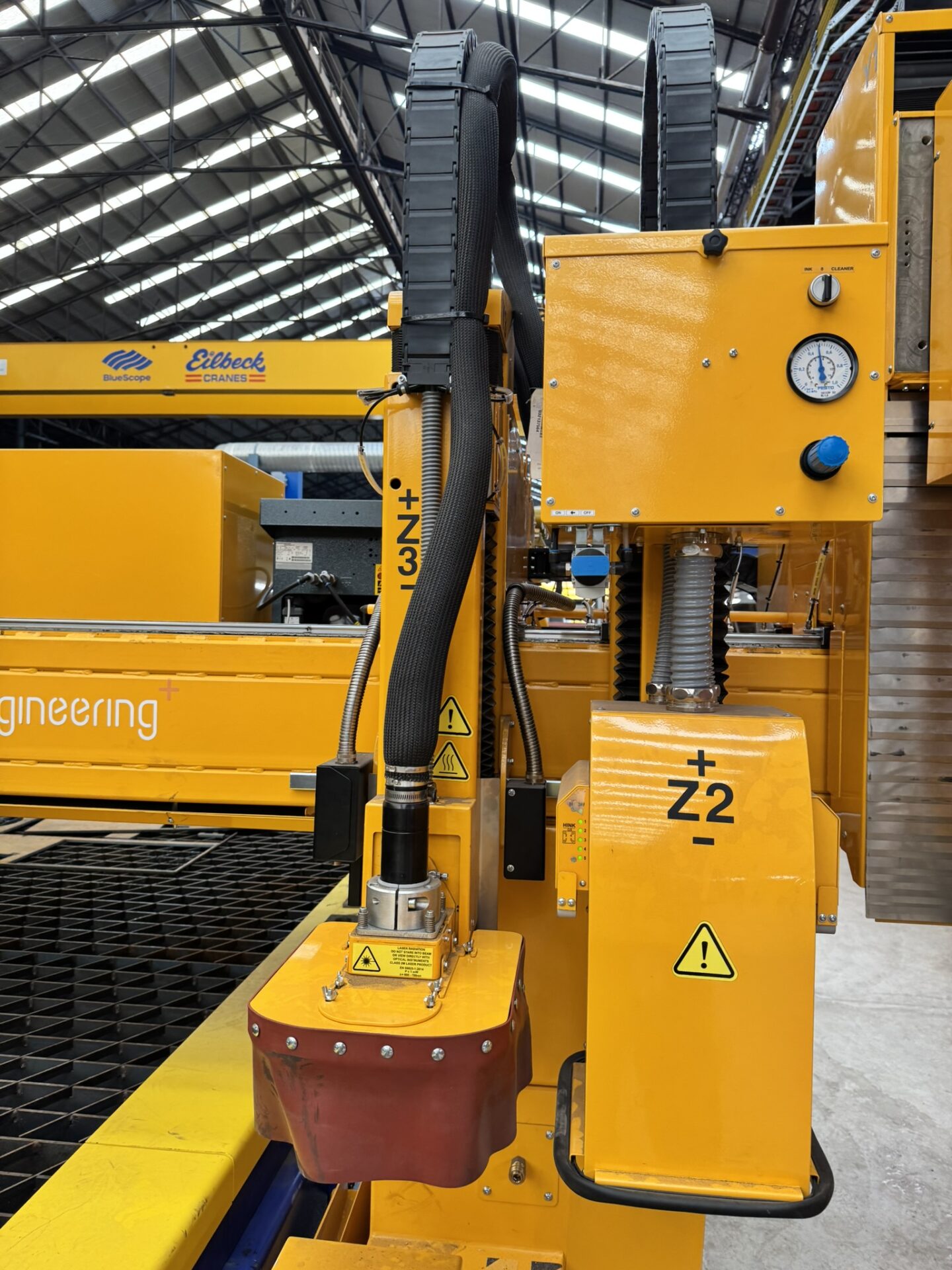

Plasma tool station for straight (vertical) cutting comes with anti-collision protection, laser pointer, automatic torch-height…
5-axis rotary bevel head with endless rotation enables plasma bevel cutting of plates, pipes, profiles…
The in-house developed automatic calibration system for geometry of the cutting tool – ACTG® –…
MicroPunch marking unit is designed for fast and simple micro-percussion marking of plates, pipes or…
The drilling tool station extends the machine’s abilities by adding drilling, tapping, countersinking. This can…
This camera can be used for two applications: Template scanning The template is scanned and…
Additional beveling process (ABP) is used for creating Y or K cuts in thicker plates.…
This tool station for oxyfuel bevel cutting with continuous rotation allows contour bevel cutting with…
This tool station with a fork-type torch is intended for cutting stripes with oxyfuel torches…
Tilting tool station enables automatic setting of the torch’s tilt for bevel cutting with plasma…
5-axis rotary bevel head with endless rotation enables oxyfuel bevel cutting of plates, pipes and…
RSV is dedicated for clamping and turning of pipes and profiles. Together with plasma rotator…
Video
Technical parameters
MetricImperial
| Working length | 1500 – 50000 mm |
|---|---|
| Working width | 1500 – 8000mm |
| Max number of tool stations | 6 (8 oxyfuel) |
| Max thickness of material cut by plasma | according to the plasma source |
| Max thickness of material cut by oxyfuel | 300 mm |
| Bevel cutting | yes (see Accessories) |
|---|---|
| Pipe cutting | Ø 30 – 1500 mm, max 12t |
| Drilling and tapping | Ø 4 – 40 mm, M4 – M33, automatic tool exchange |
| Positioning speed | max. 50 m/min |
| Bidirectional repeatability | 0.05 mm/m |
