MSBend-E electric servo press brake is an eco-friendly nonhydraulic bending solution. The innovative machine concept combines productivity, accuracy, flexibility and reliability.
Features

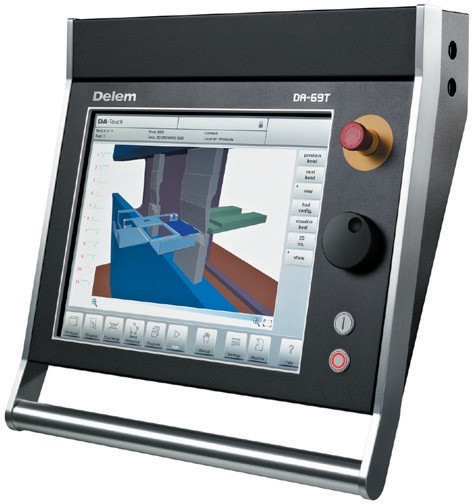

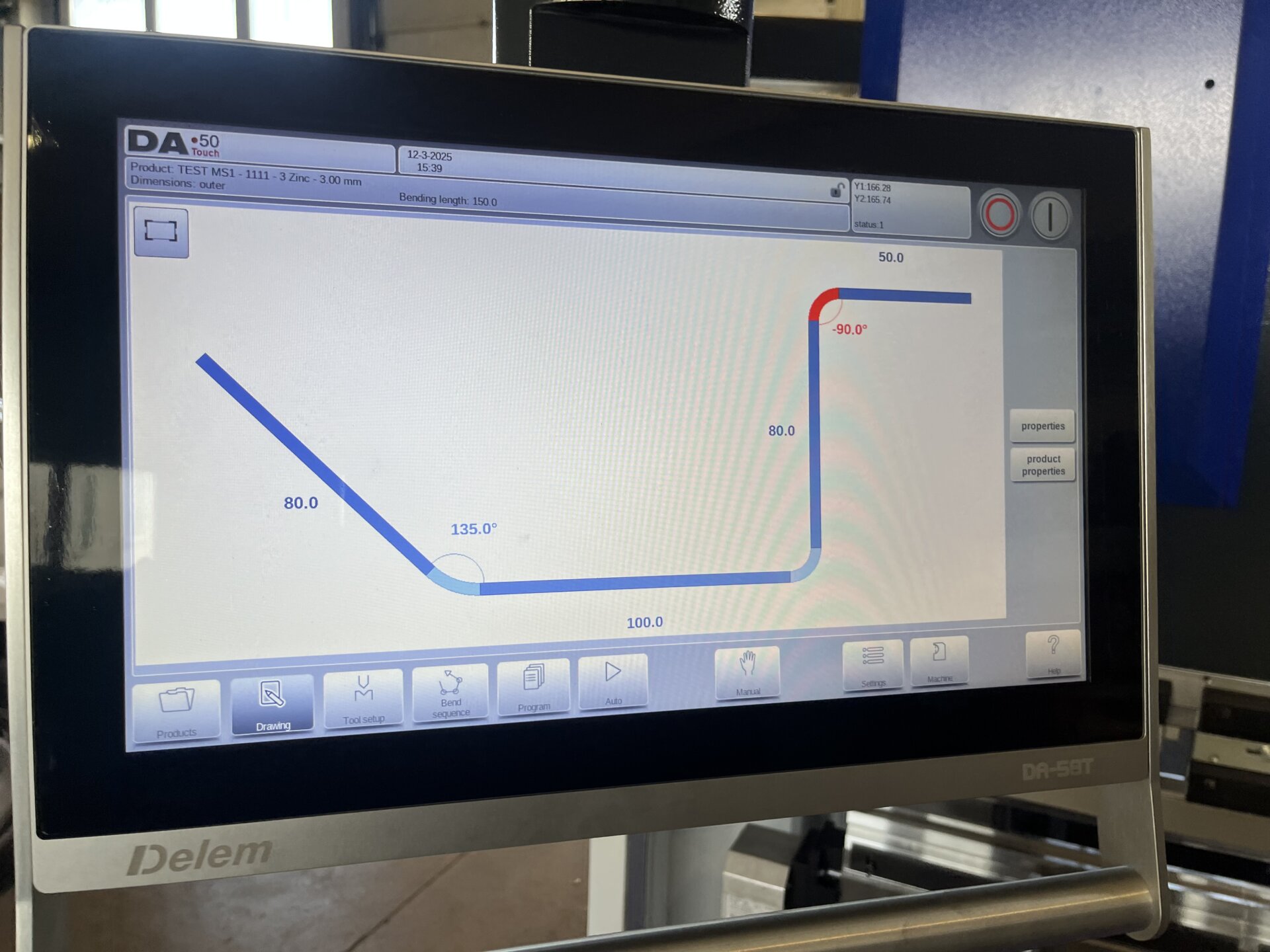

High-end DELEM CNC control unit with a touch screen
provides direct navigation between programming and
production. The UI is optimized for ergonomics with functions
exactly where the operator needs them. The panel is conveniently mounted on a fully adjustable arm.

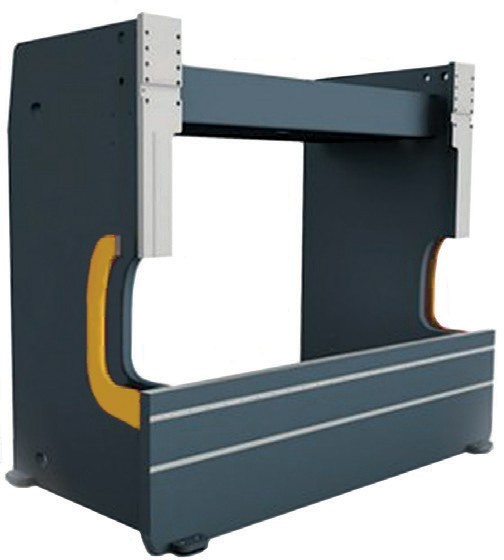

Press brakes feature a rigid mono-block machine frame for minimum deflection under load. The steel frame is checked
by ultrasound and is stressrelieved after welding. All reference surfaces and connection holes are machined.

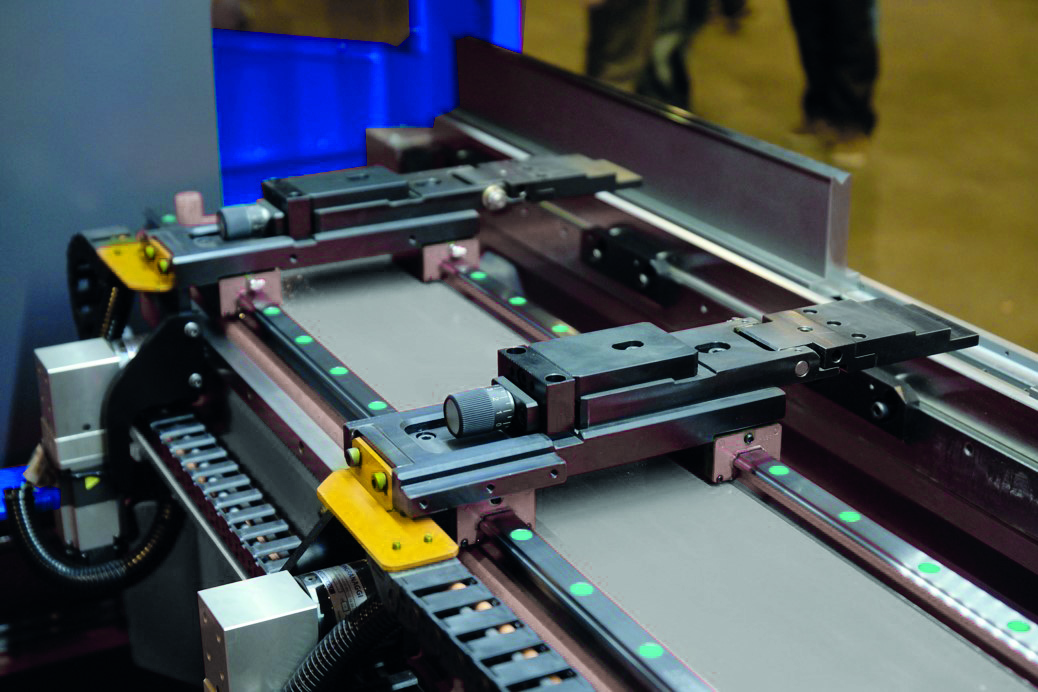

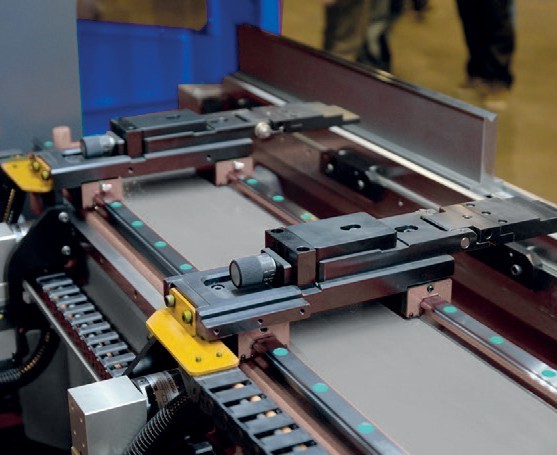

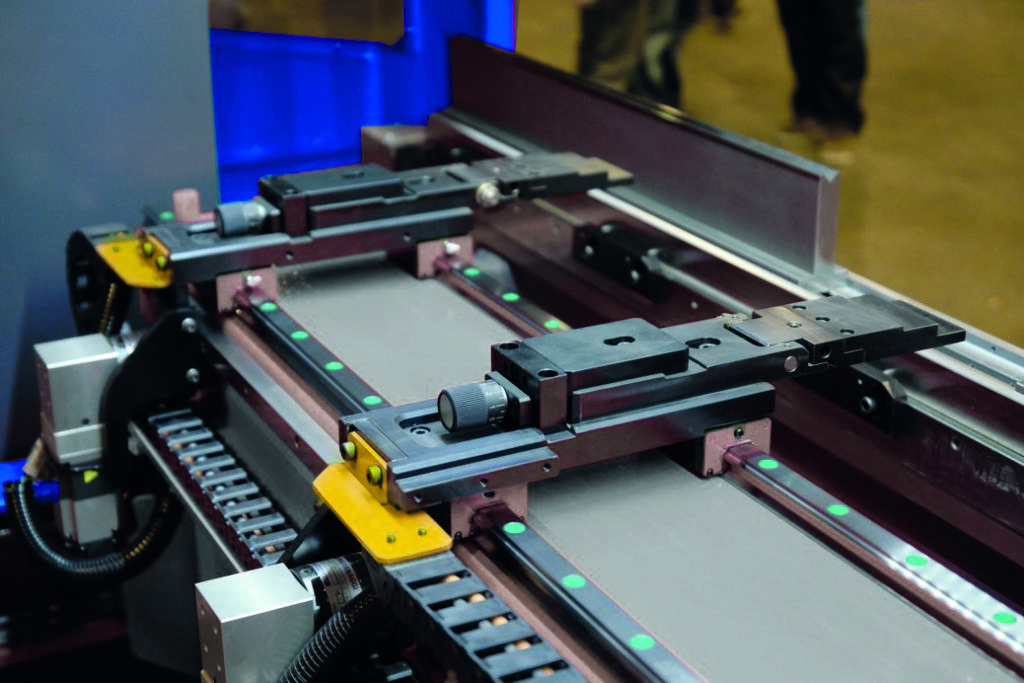

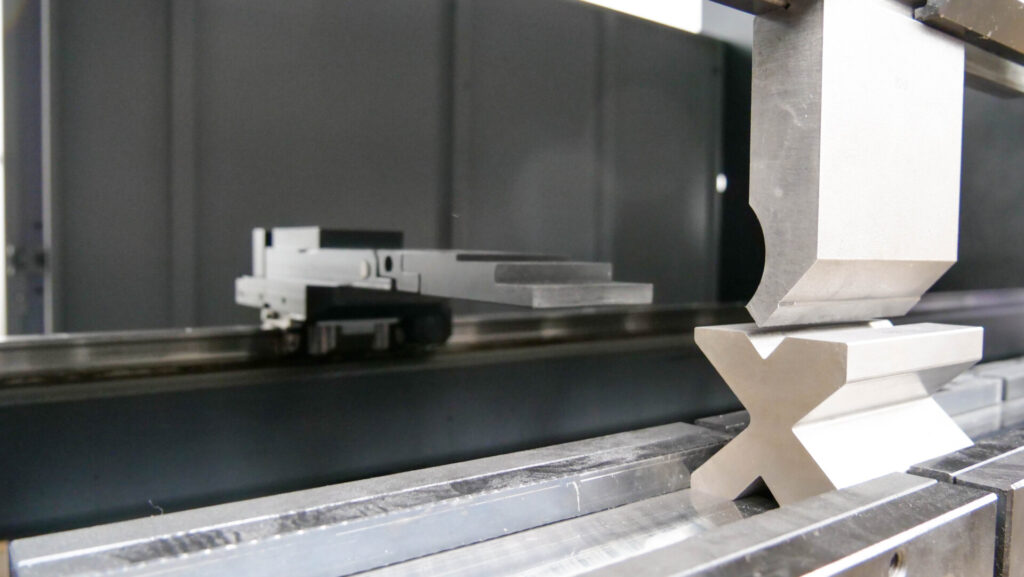

CNC-controlled and servo-driven backgauge that automatically adjusts position to ensure the material is positioned accurately, resulting in high quality finished parts.

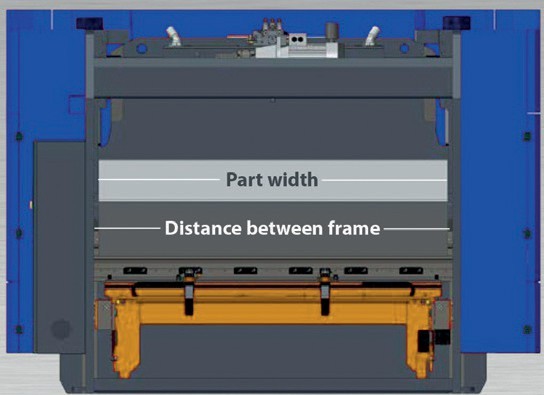

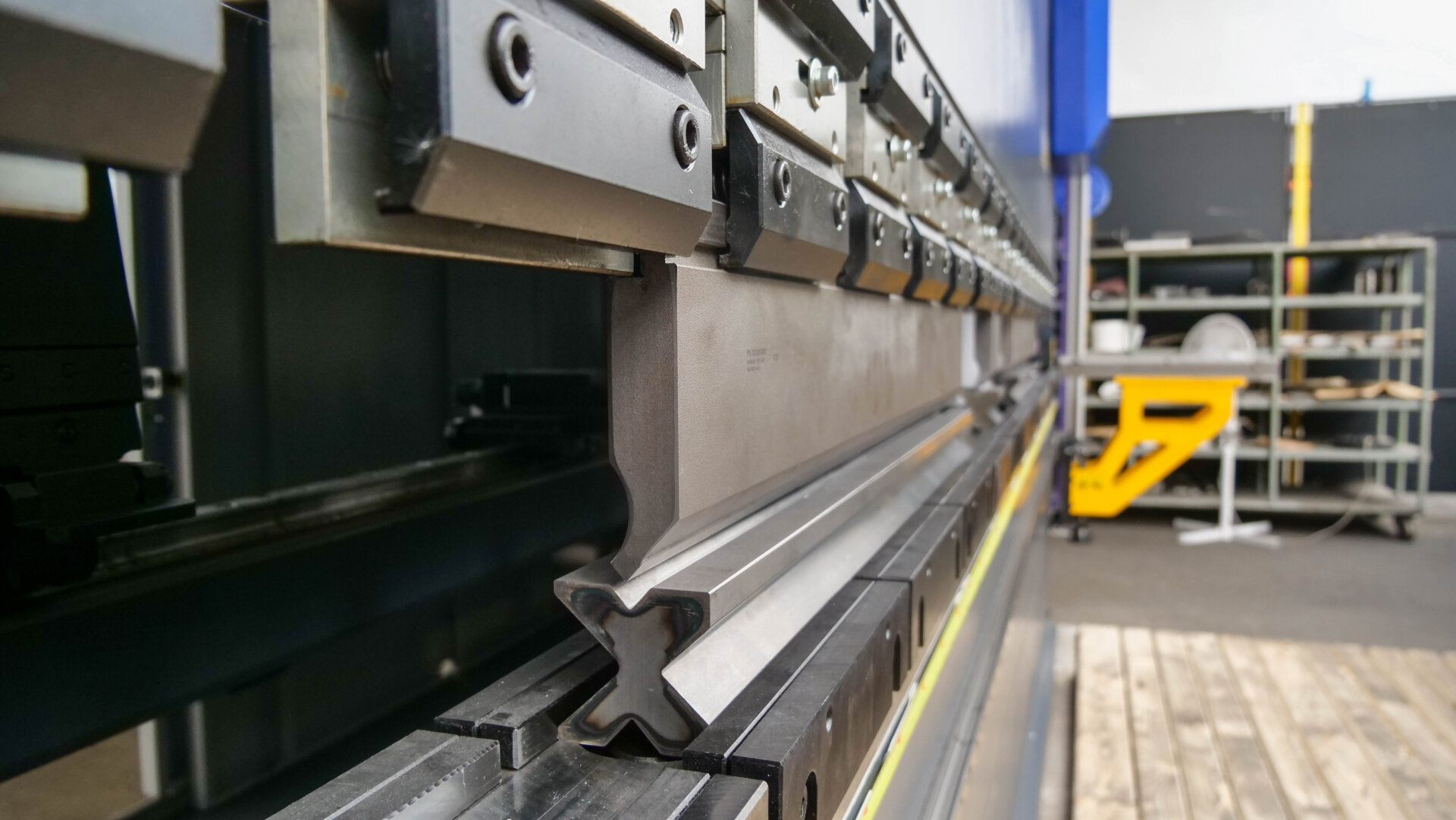

The generous work space facilitates versatile production of parts requiring increased clearance. Throat depth can be optionally increased to allow processing of very large parts

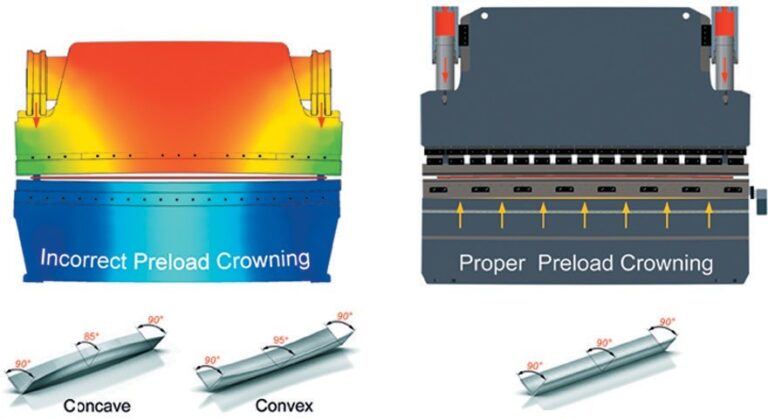

Crowning eliminates the need for time consuming shimming by creating an adjustable crown in the middle of the table. All press brakes come with manual or a CNC-controlled crowning system. In the latter, the position and setting is automatically calculated from part data and set via CNC control.
High-end DELEM CNC control unit with a touch screen
provides direct navigation between programming and
production. The UI is optimized for ergonomics with functions
exactly where the operator needs them. The panel is conveniently mounted on a fully adjustable arm.
Press brakes feature a rigid mono-block machine frame for minimum deflection under load. The steel frame is checked
by ultrasound and is stressrelieved after welding. All reference surfaces and connection holes are machined.
CNC-controlled and servo-driven backgauge that automatically adjusts position to ensure the material is positioned accurately, resulting in high quality finished parts.
The generous work space facilitates versatile production of parts requiring increased clearance. Throat depth can be optionally increased to allow processing of very large parts
Crowning eliminates the need for time consuming shimming by creating an adjustable crown in the middle of the table. All press brakes come with manual or a CNC-controlled crowning system. In the latter, the position and setting is automatically calculated from part data and set via CNC control.
Video
Technical parameters
| Bending force | 120 – 300 kN |
|---|---|
| Rated power | 2 x 6 – 2 x 9.2 kW |
| Oil tank capacity | 2 x 34.5 – 2 x 55 liters |
| Approach speed | 140 – 200 mm/s |
| Working speed | 7 – 10 mm/s |
| Return speed | 140 – 200 mm/s |
| Bending length | 3,100 – 4,100 mm |
| Daylight opening | 530 – 660 mm |
| Stroke | 260 – 320 mm |
|---|---|
| Throat gap | 410 – 500 mm |
| X axis range | 750 mm |
| X axis speed | 350 mm/s |
| X axis precision | 0.03 |
| R axis range | 160 mm |
| R axis speed | 240 mm/s |
| R axis precision | 0.05 |
