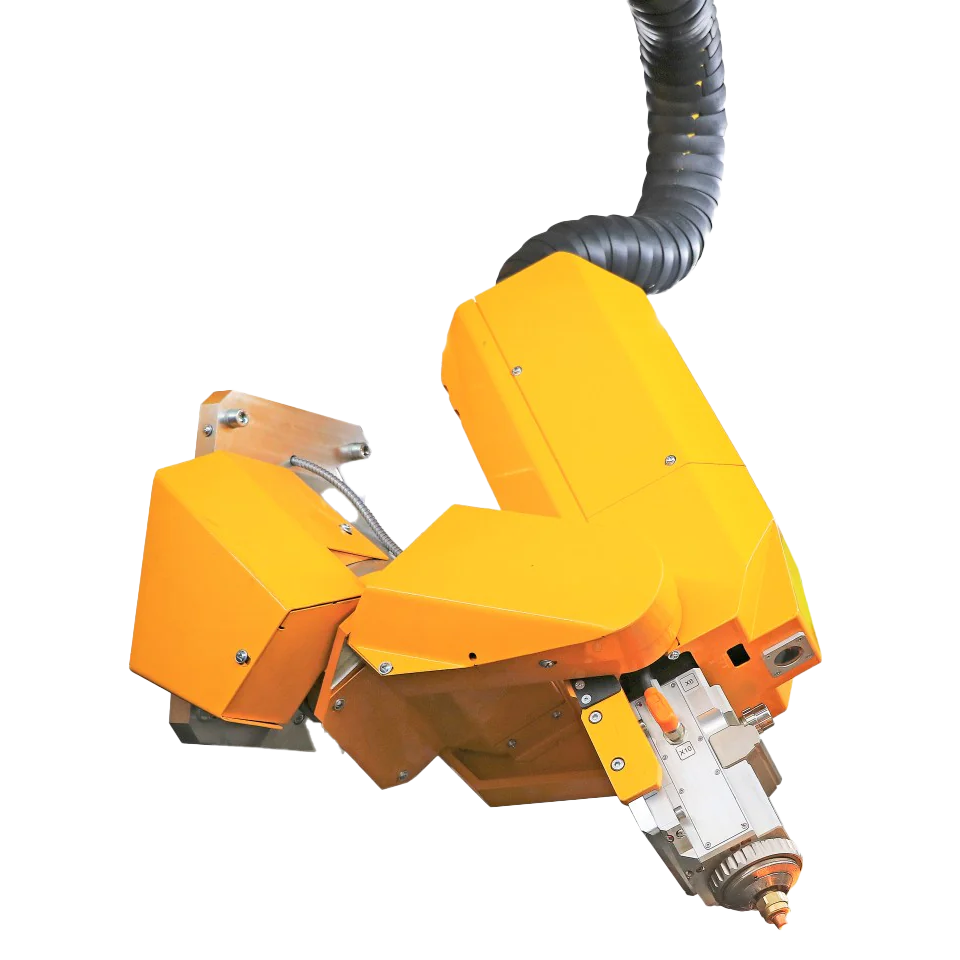

Laser 3D Tilting Tool Station
The 3D tilting head is designed for cutting of precise parts with bevel – possible bevel types are V, Y, K and X. All laser sources offered by MicroStep can be used with the tilting head. With a 6 kW source, it is possible to cut mild steel 15 mm thick with a 45° bevel. It is currently NOT recommended to use for cutting stainless steel.
Technical parameters
| Degrees of freedom | 4 (Y, Z, A, B axes) + X on the machine |
|---|---|
| Max. thickness of material | According to a laser source |
| Torch inclination range (A) | ± 50° (including bevel corrections) |
| Total stroke (Z) | 70 mm |
| Angular velocity | Max. 130°/s (A and B axes) |
| Positioning speed in Z | Max. 130 m/min |
| Precision of cutting | Max. 18 m/min |
Please note: Some parameters (e.g. Max. thickness of material, Total stroke etc.) vary with the machine type the tool station is installed upon.
